Removal Procedure

Using the scan tool, deflate the automatic level control air supply reservoir.
Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, remove the fascia. (1) Rear Bumper Fascia Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Underbody Rear Air Deflector Retainer (1) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

Underbody Rear Air Deflector Bolt (1) - Remove [17x]
Courtesy of GENERAL MOTORS COMPANY

Underbody Rear Air Deflector Bolt (1) - Remove [6x]
Courtesy of GENERAL MOTORS COMPANY

Underbody Rear Air Rear Deflector (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (2) - Remove [3x]

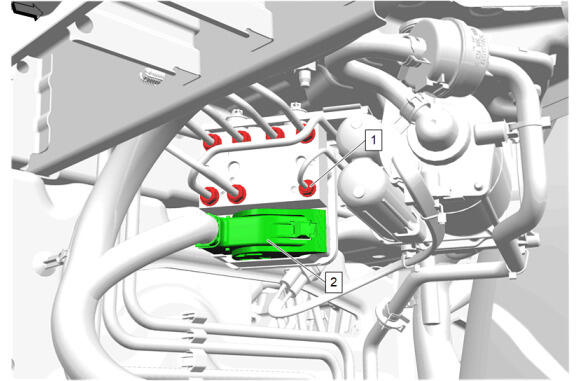

Remove the 7 automatic level control air compressor tube fitting (1) from the air suspension control module manifold assembly.
Courtesy of GENERAL MOTORS COMPANY

Remove the hose clamp (1) from the automatic level control air compressor inlet tube (2).
Automatic Level Control Air Compressor Inlet Tube (2) - Remove
Remove the 4 automatic level control air compressor inlet tube retainers (3).
Courtesy of GENERAL MOTORS COMPANY

Automatic Level Control Air Compressor Bolt (1) - Remove
Automatic Level Control Air Compressor Nut (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Automatic Level Control Module (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

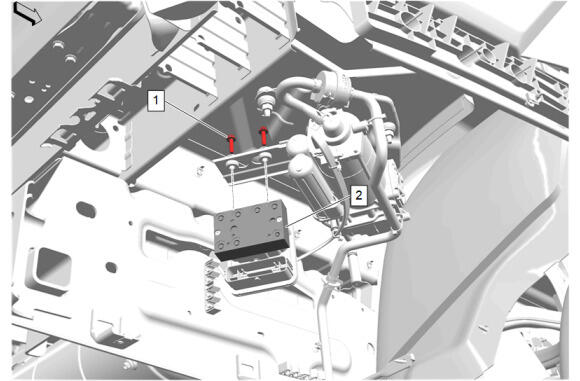

Remove the 2 automatic level control air compressor bolts (1).
Remove the air suspension control module manifold assembly and air suspension control module (2) as an assembly.
Courtesy of GENERAL MOTORS COMPANY

Automatic Level Control Air Compressor Bolt (1) - Remove [2x]
Separate the air suspension control module (3) from the air suspension control module manifold assembly (2).
