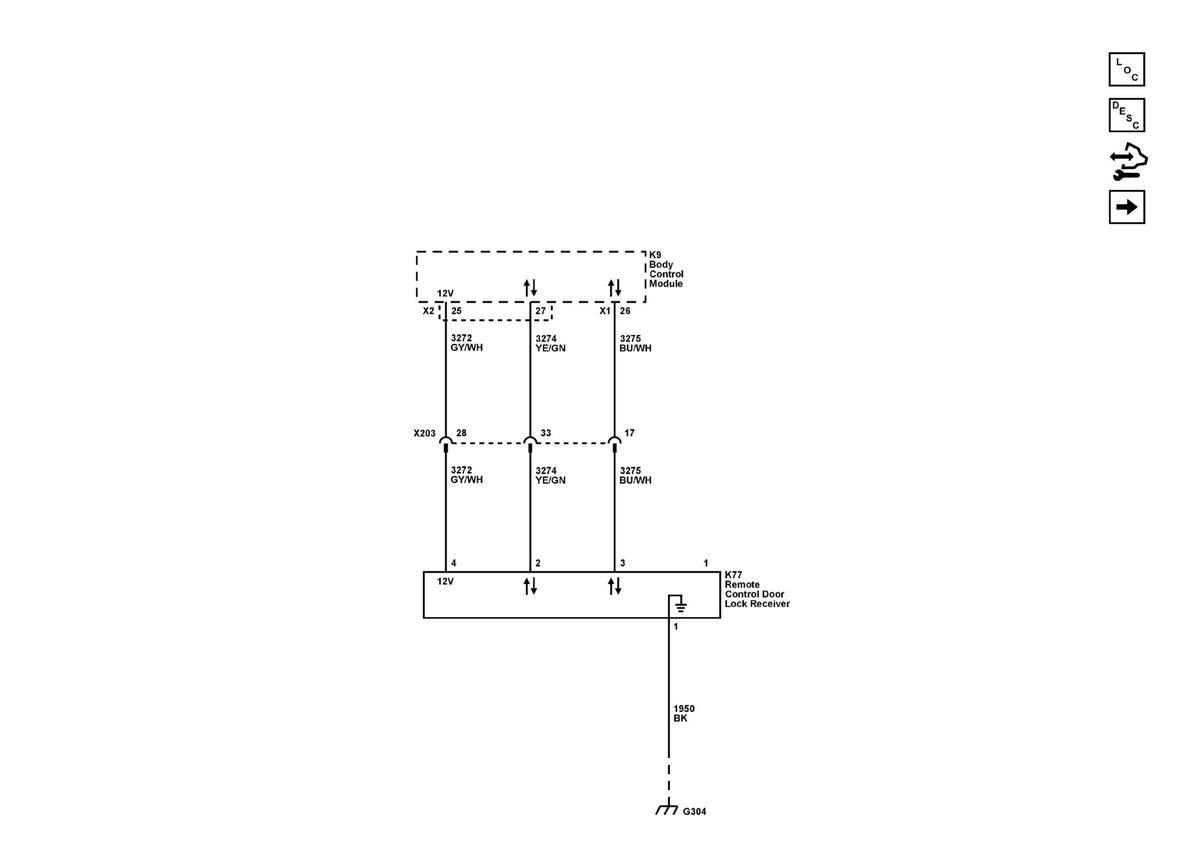

Home › GMC › 2023 › Terrain AT4 › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry And Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Active
