Installation Procedure

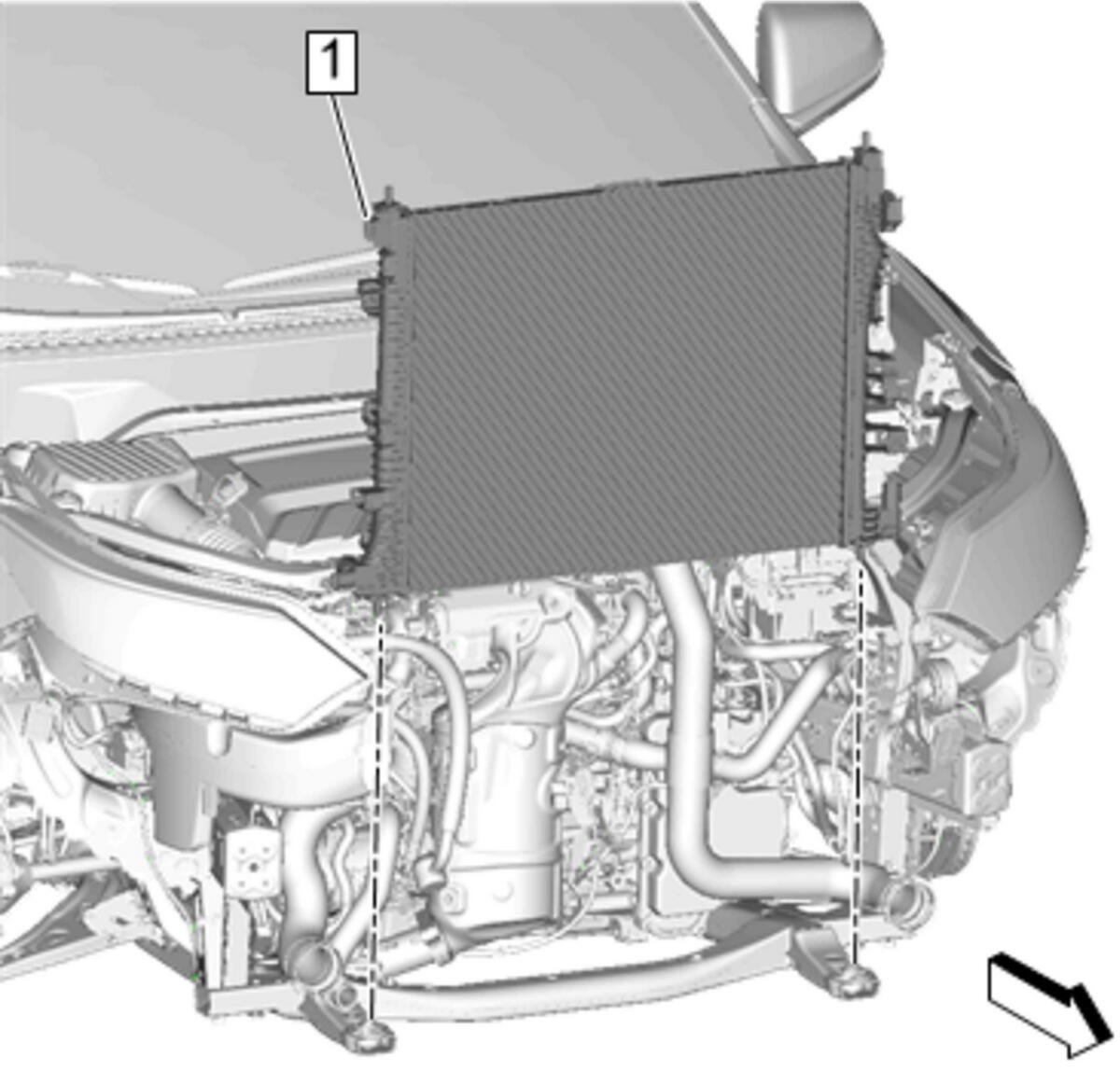

  1. GM4585203Courtesy of GENERAL MOTORS COMPANY

    Radiator (1) - Install

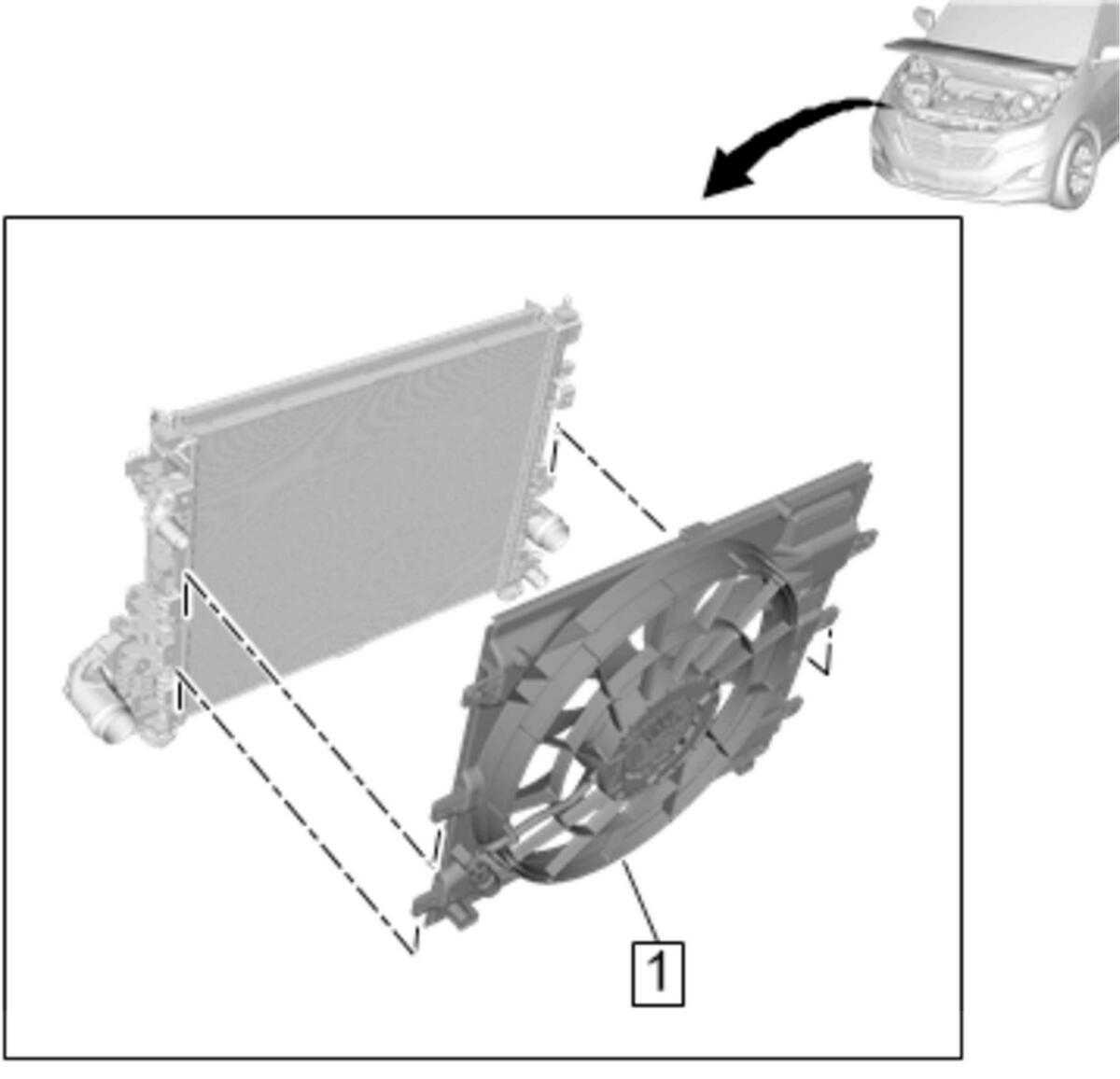

  2. GM4582810Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Fan (1) @Radiator - Install - Engine Coolant Fan Replacement

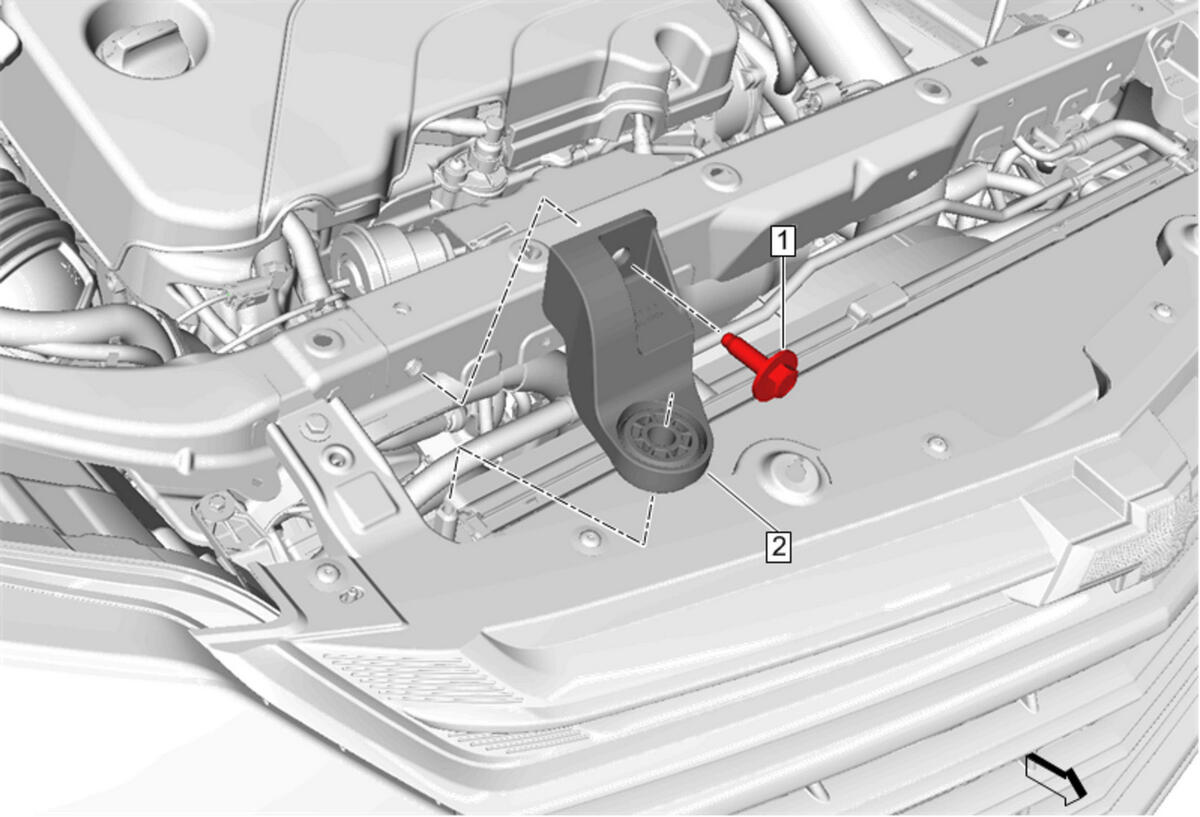

  3. GM4581249Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket-Right Side (2) - Install - Radiator Upper Bracket Replacement - Right Side

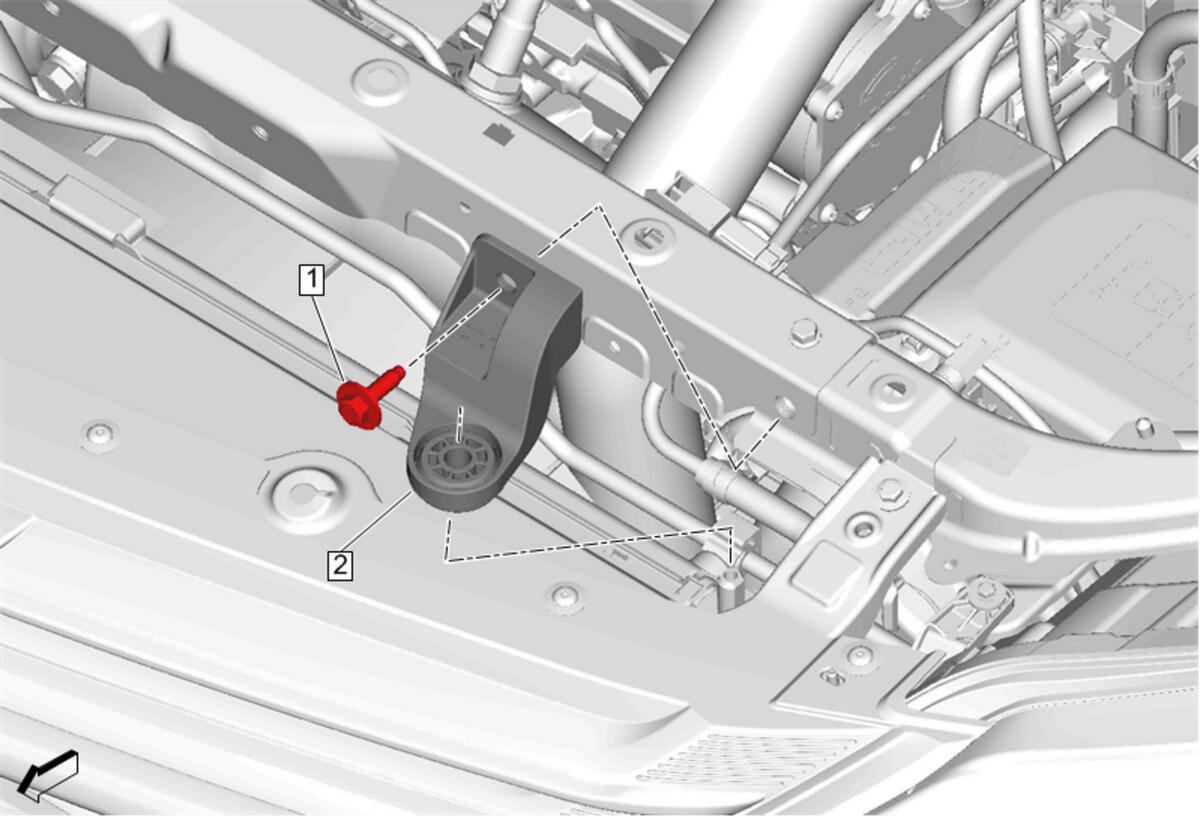

  4. GM4581256Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket-Left Side (2) - Install - Radiator Upper Bracket Replacement - Left Side

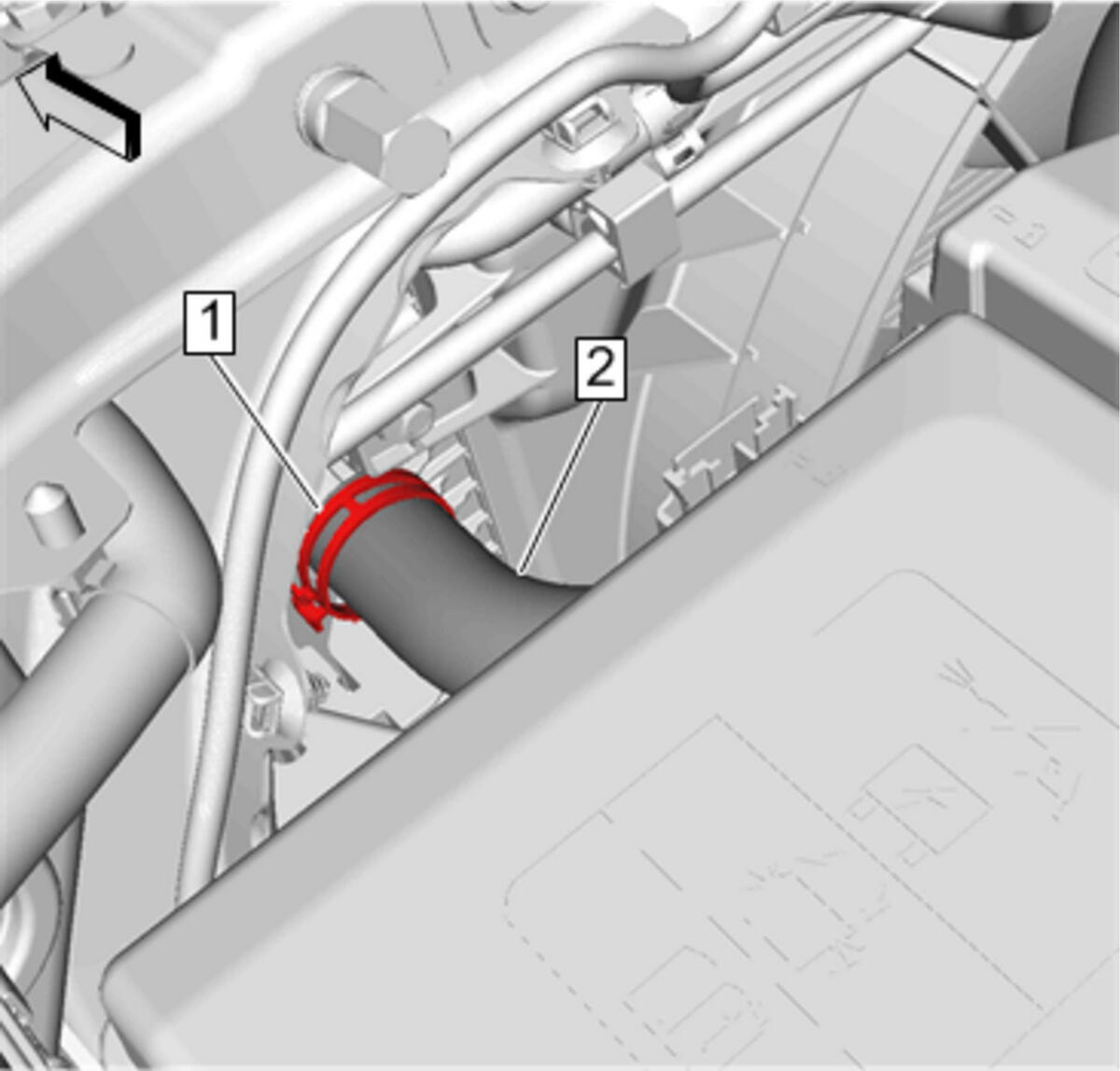

  5. GM4580388Courtesy of GENERAL MOTORS COMPANY

    Radiator Inlet Hose (2) @Radiator - Install - Radiator Inlet Hose Replacement

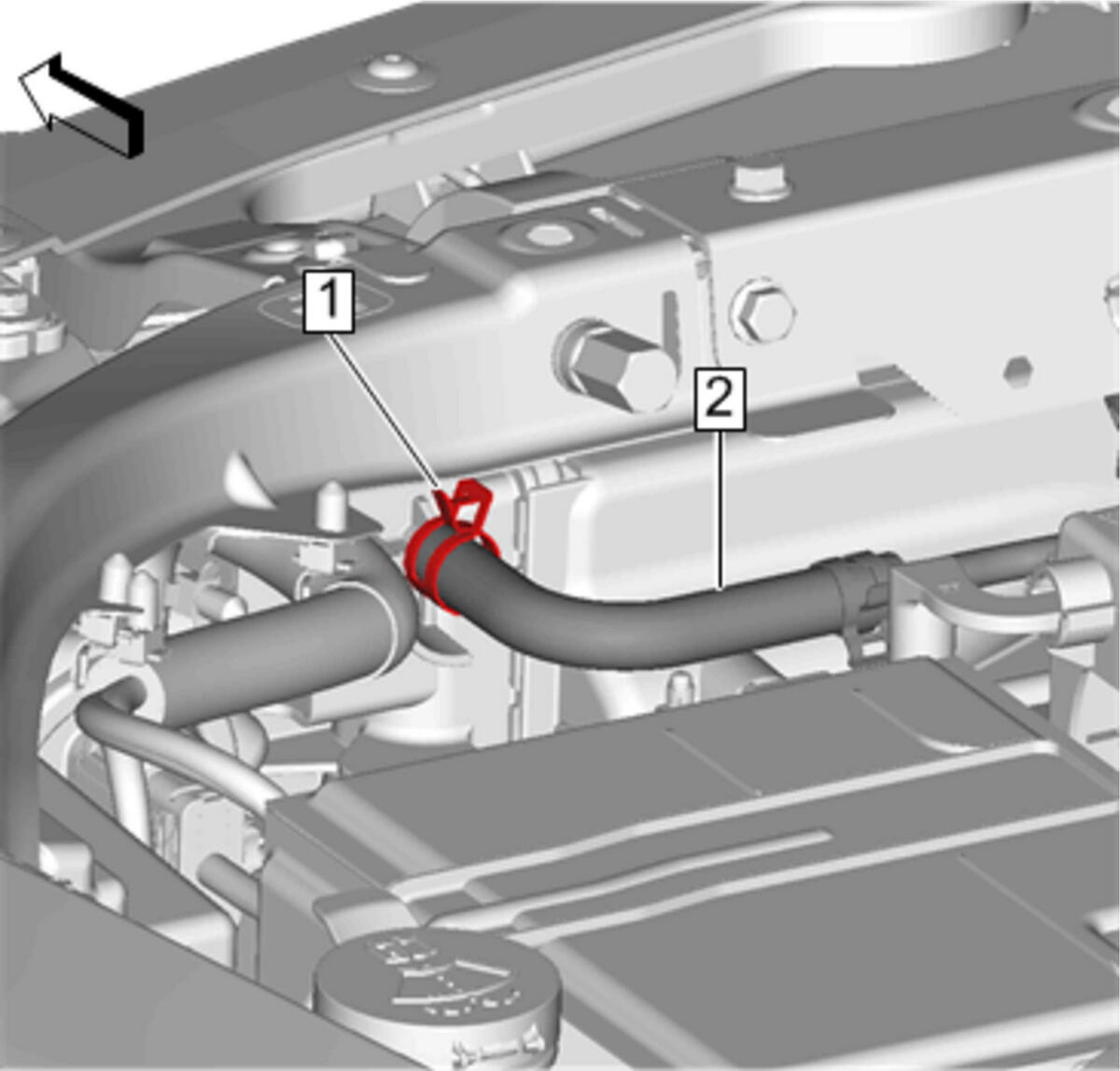

  6. GM4577205Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Air Bleed Hose (2) @Radiator - Install - Engine Coolant Air Bleed Hose Replacement

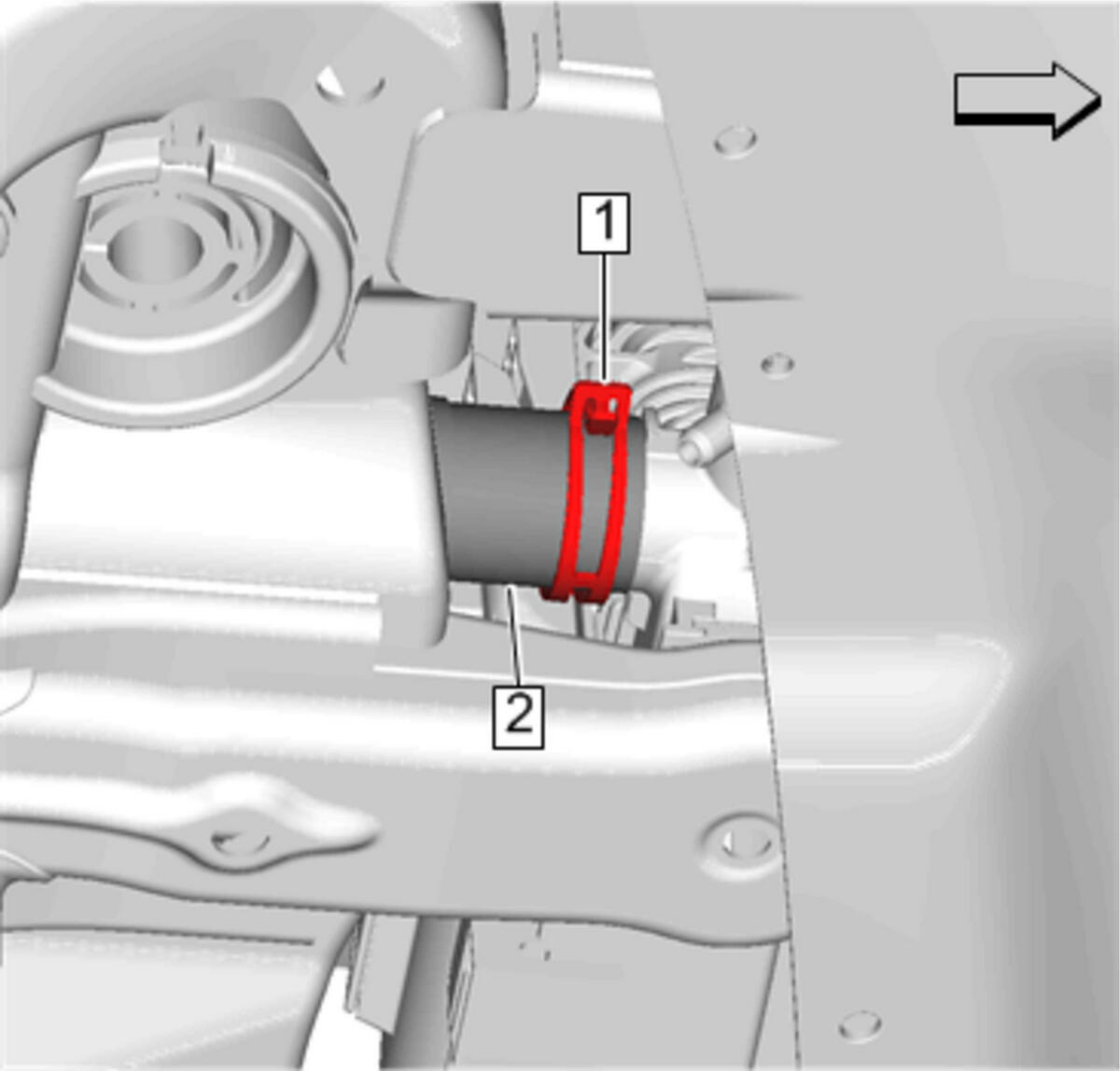

  7. GM4580860Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Hose (2) @Radiator - Install - Radiator Outlet Hose Replacement

  8. Charge Air Cooler - Install - Charge Air Cooler Replacement
  9. Air Conditioning Condenser - Install - Air Conditioning Condenser Replacement
  10. Connect the electrical connectors.

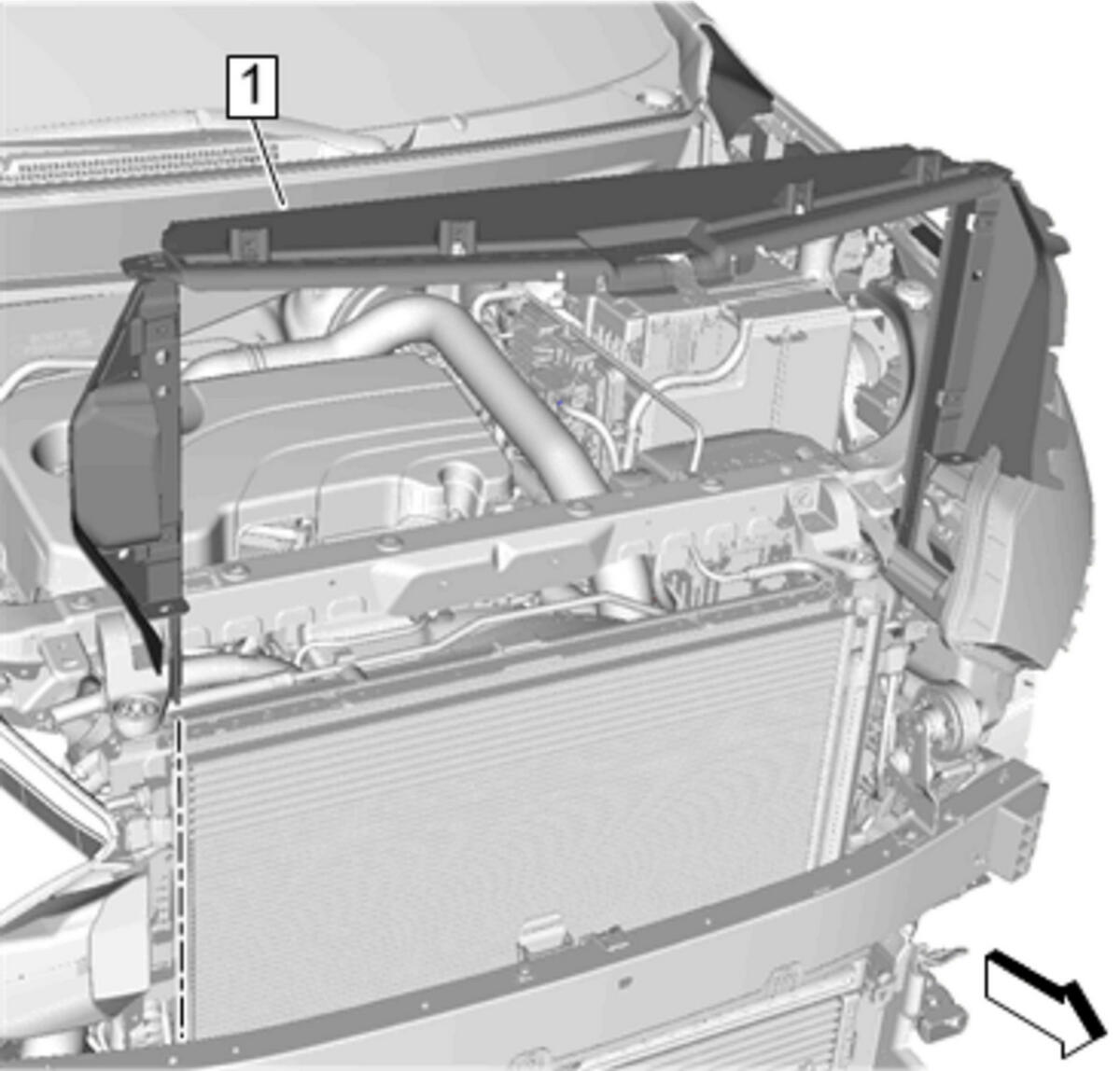

  11. GM4582602Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle (1) - Install - Radiator Air Upper Baffle Replacement

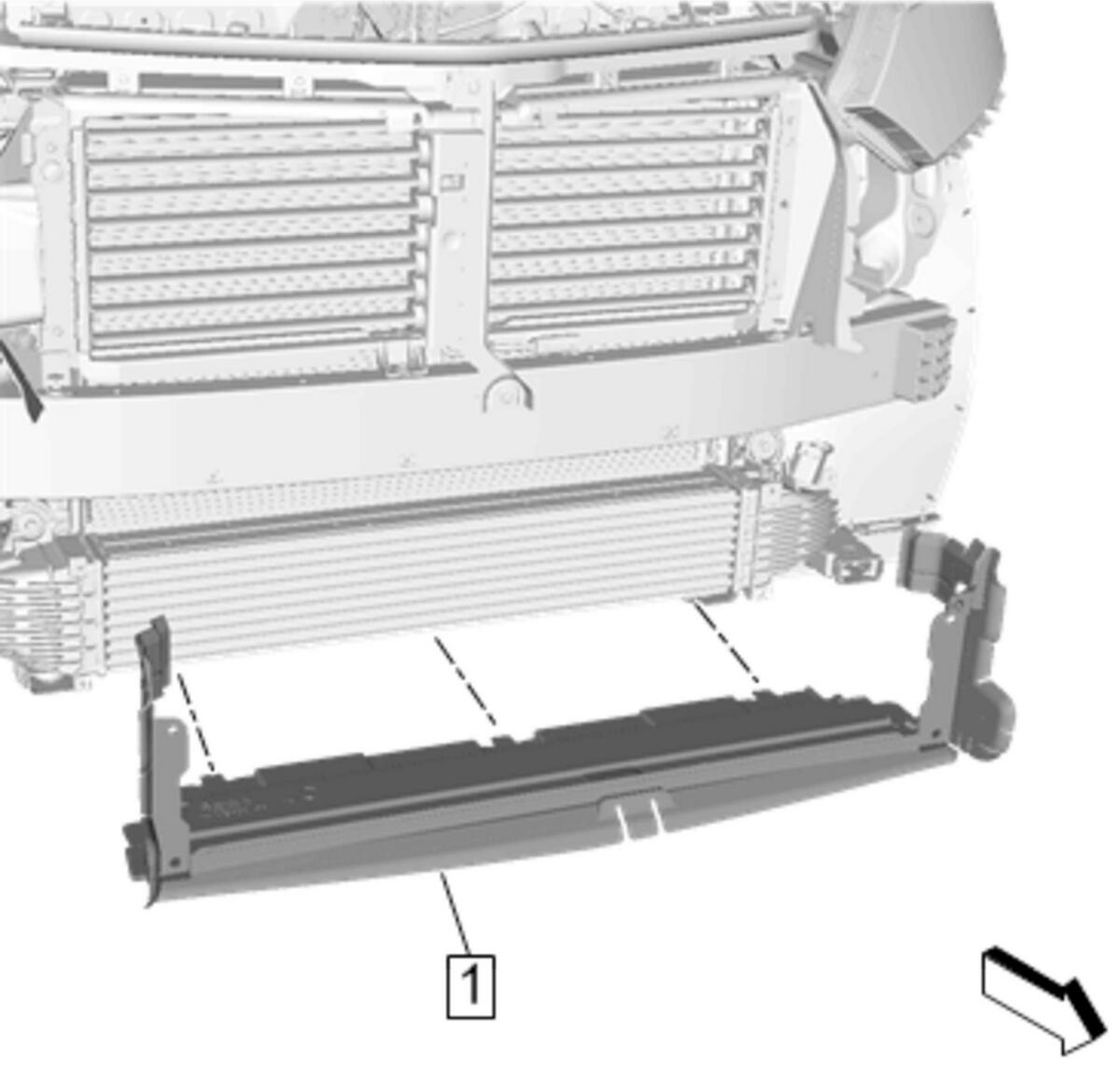

  12. GM4582341Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Lower Baffle (1) - Install - Radiator Air Lower Baffle Replacement

  13. Front Bumper Fascia - Install - Front Bumper Fascia Removal and Installation (Equinox) , or Front Bumper Fascia Removal and Installation (Terrain)
  14. Fill the cooling system. Cooling System Draining and Filling (GE 47716) , or Cooling System Draining and Filling (Static)
  15. Start the engine and check for coolant leaks.
