Installation Procedure

  1. GM5907999Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Heat Shield (2) - Install

  2. Catalytic Converter Heat Shield Bolt (1) - Install and tighten [3x] 10 N.m (89 lb in)

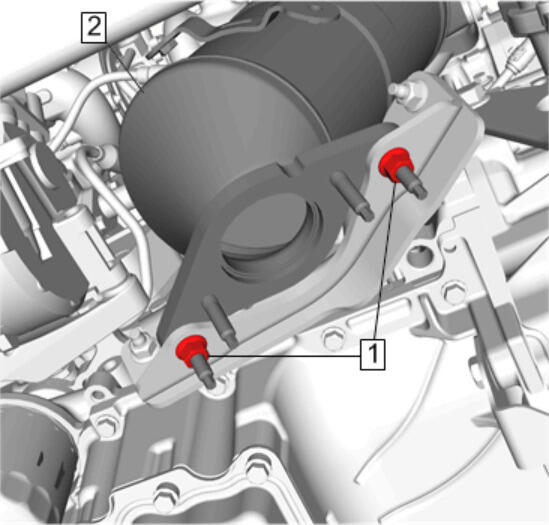

  3. GM4213341Courtesy of GENERAL MOTORS COMPANY

    Warm Up Three-Way Catalytic Converter (2) - Install - Warm Up Three-Way Catalytic Converter Replacement
