Installation Procedure
Generator Shield (2) - Install
- Generator Nut (1) - Install and tighten 22 N.m (16 lb ft)
- Raise and support the vehicle. Lifting and Jacking the Vehicle

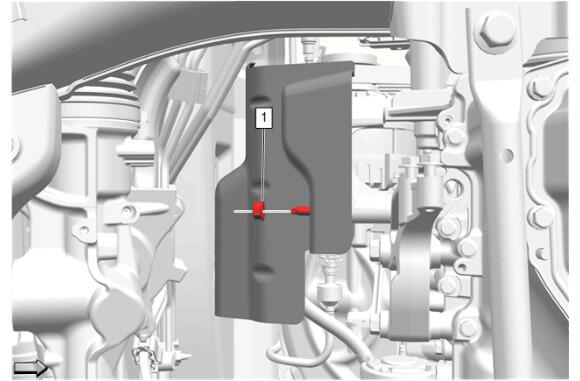

Generator Nut (1) - Install and tighten 22 N.m (16 lb ft)
- Lower the vehicle.

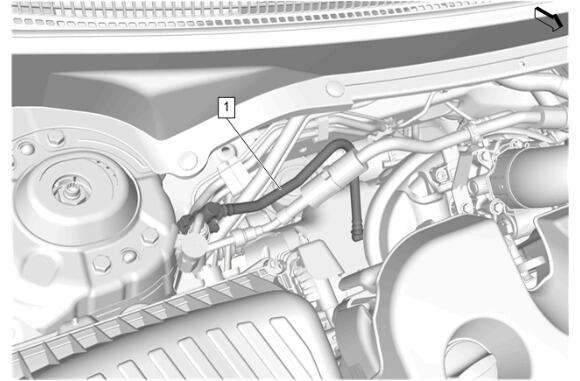

Evaporative Emission Front Pipe (1) - Install - Evaporative Emission Front Pipe Replacement - Engine
CAUTION:
Refer to Fastener Caution
