Installation Procedure

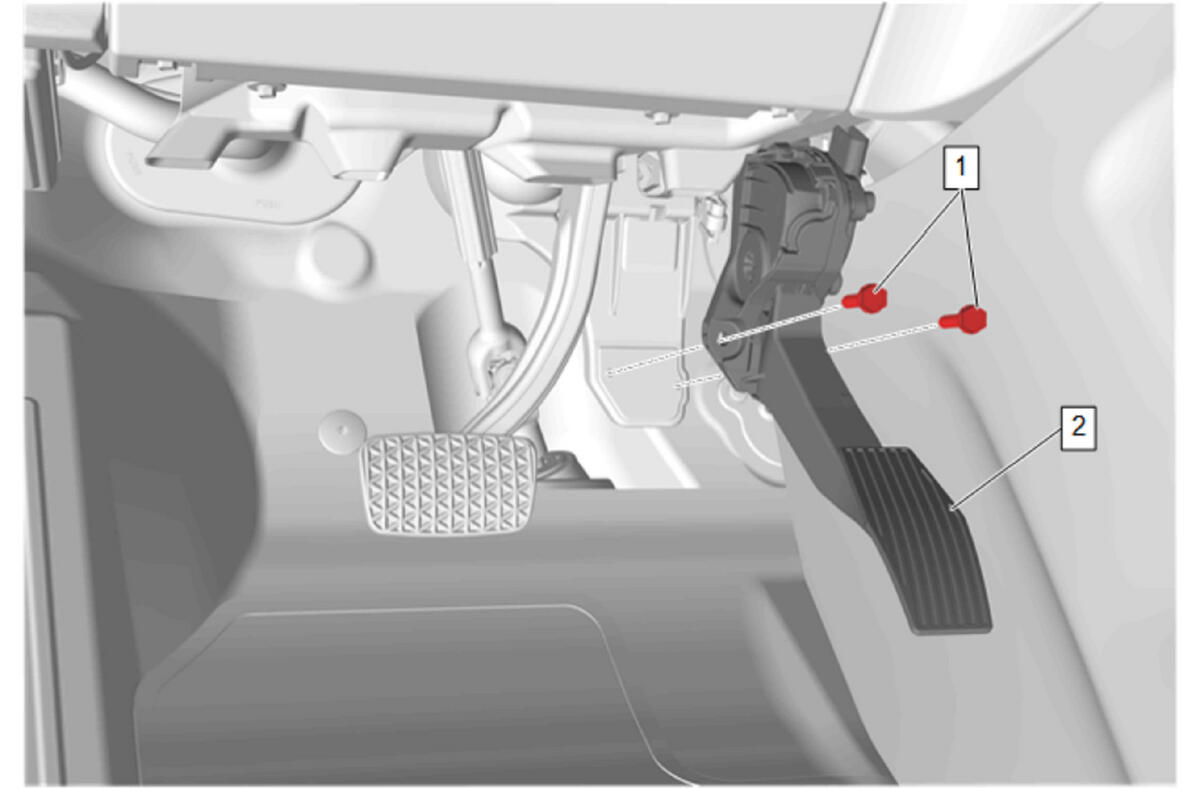

  1. GM6074933Courtesy of GENERAL MOTORS COMPANY

    Accelerator Pedal (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Accelerator Pedal Lever Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)
  3. Connect the electrical connector.
