Installation Procedure

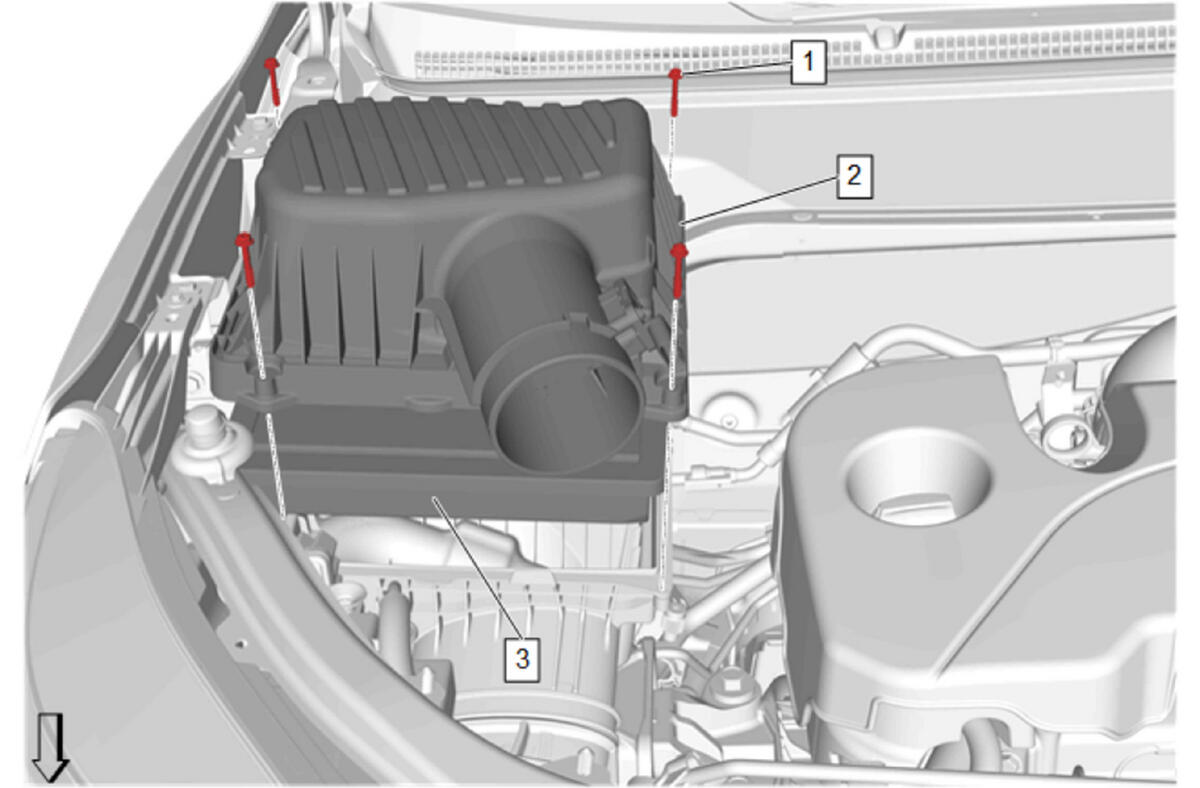

  1. GM6084398Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Element (3) - Install

  2. Air Cleaner Upper Housing (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Air Cleaner Housing Cover Bolt (1) - Install and tighten [4x] 2.7 N.m (24 lb in)
  4. Connect the electrical connector and install the wiring harness retainers as necessary.
  5. Air Cleaner Outlet Duct - Install - Air Cleaner Outlet Duct Replacement
  6. Perform the air cleaner monitor setup. Air Cleaner Monitor Setup
