Installation Procedure

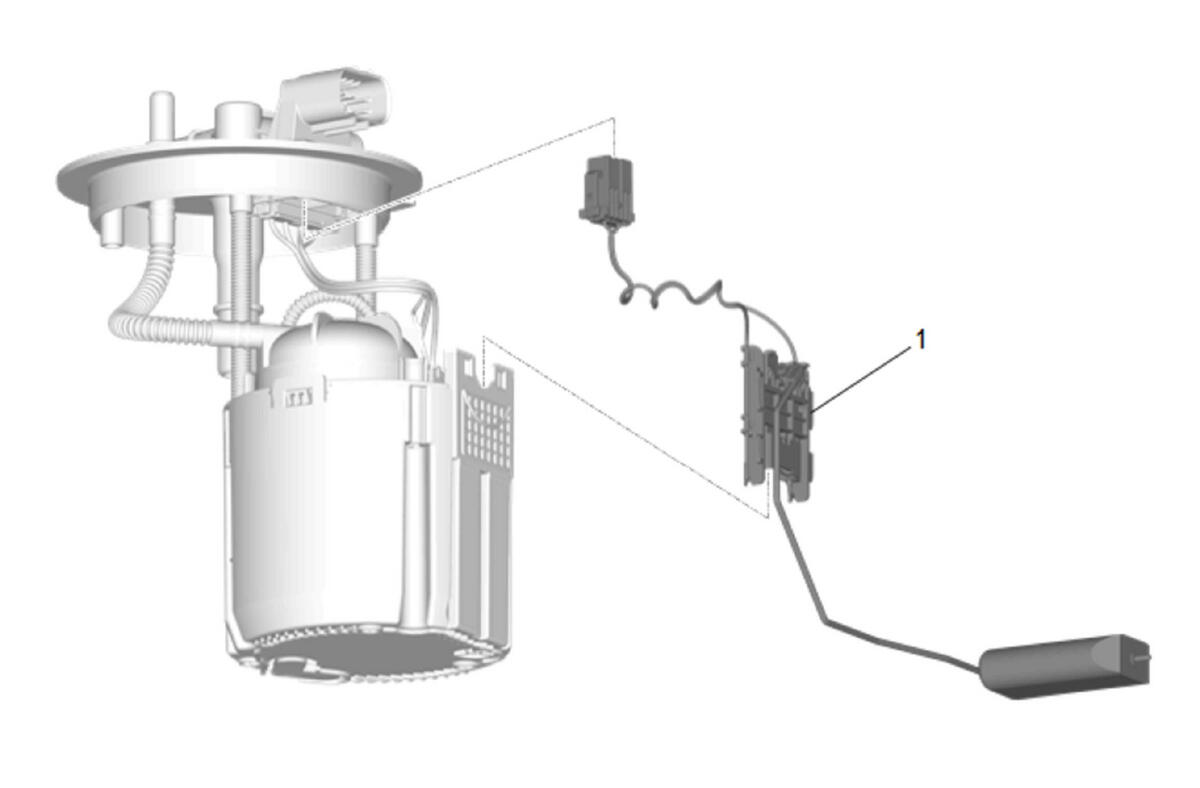

  1. GM6087697Courtesy of GENERAL MOTORS COMPANY

    Fuel Level Sensor (1) - Install

  2. Connect the electrical connector.
  3. Fuel Tank Fuel Pump Module - Install - Fuel Tank Fuel Pump Module Replacement (AWD)
