Installation Procedure

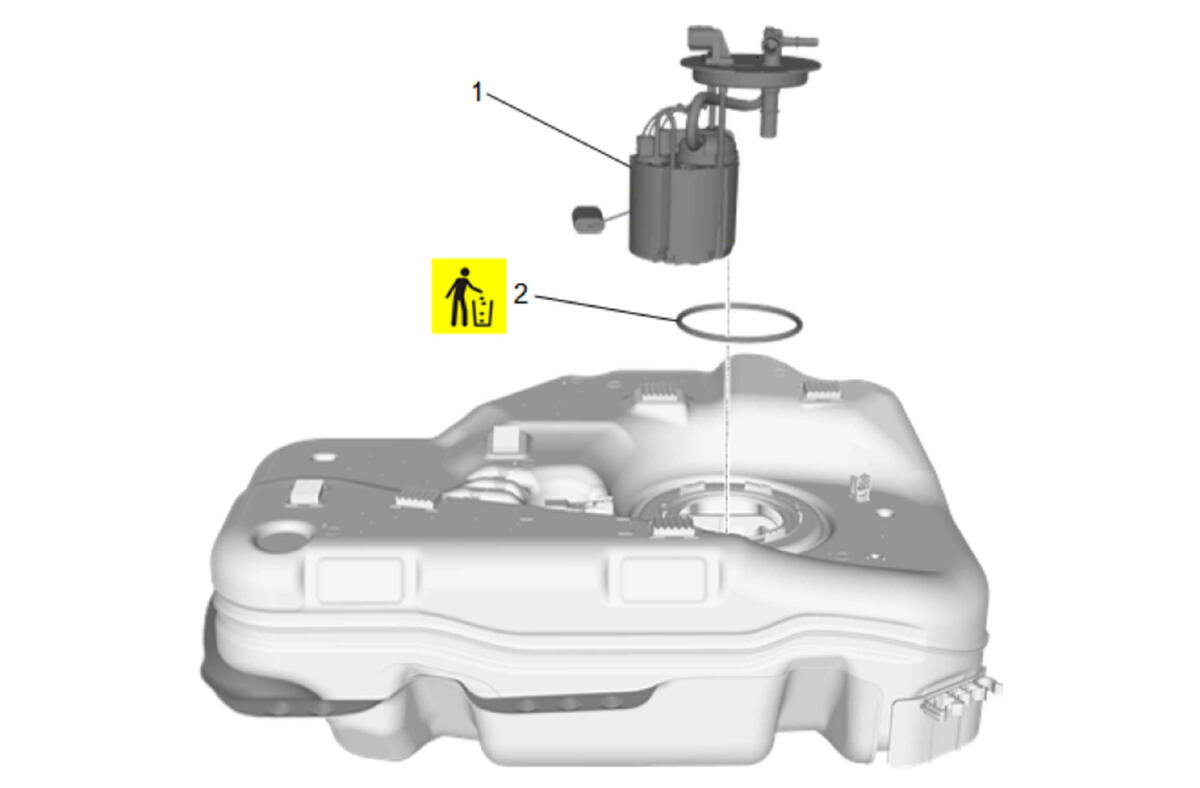

  1. GM6074978Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Seal (2) - Install NEW

  2. Fuel Tank Fuel Pump Module (1) - Install

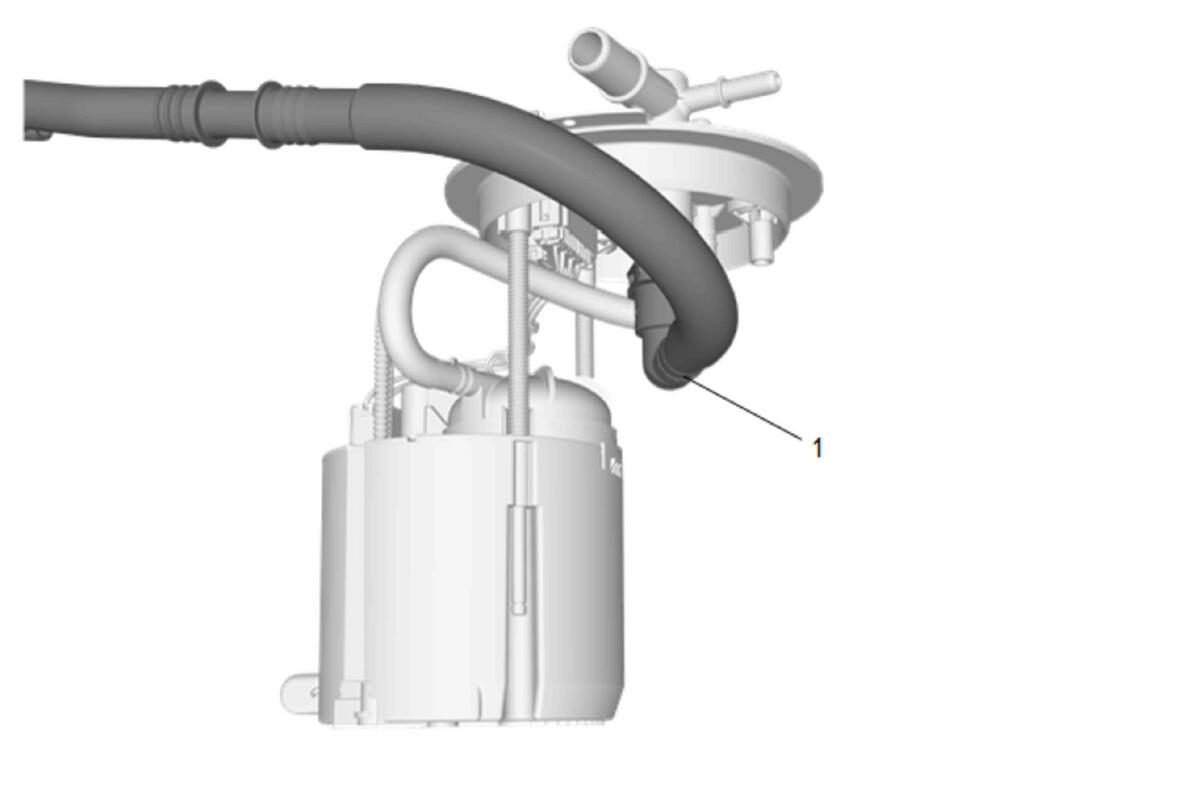

  3. GM6074980Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Vent Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

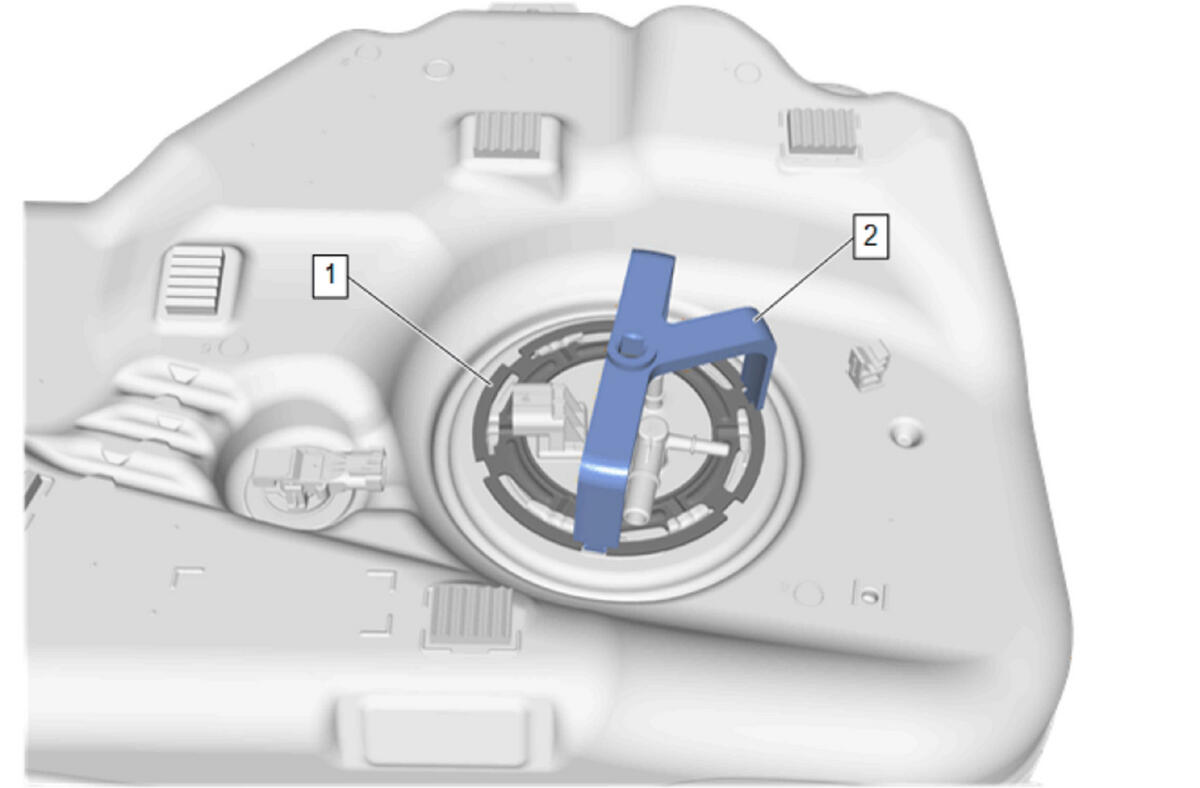

  4. GM6074977Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Cam (1) - Install - use CH-52075  Fuel Pump Lock Ring Wrench (2)

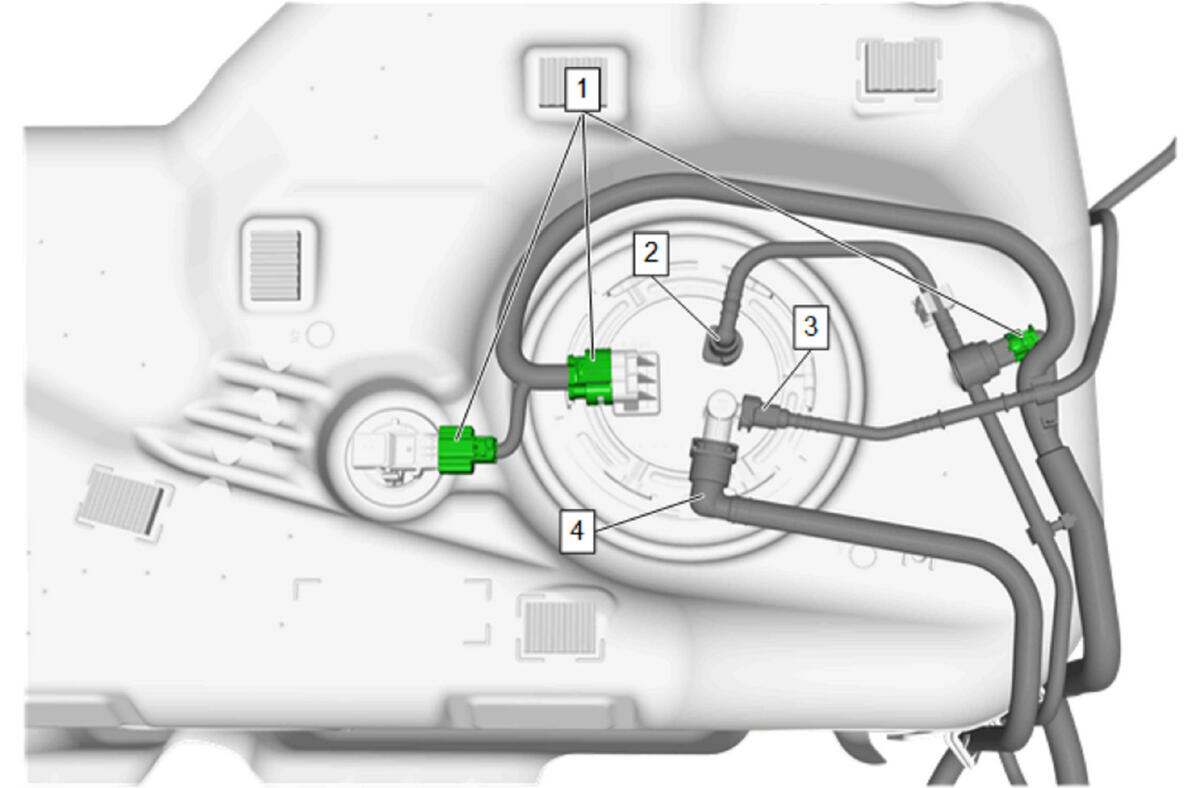

  5. GM6074976Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Vent Hose (4) - Connect - Plastic Collar Quick Connect Fitting Service

  6. Fuel Tank Vent Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service
  7. Fuel Pump Fuel Feed Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
  8. Connect the electrical connectors. (1)
  9. Fuel Tank - Install - Fuel Tank Replacement (FWD)
