Knock Sensor 1 Replacement
NOTE:

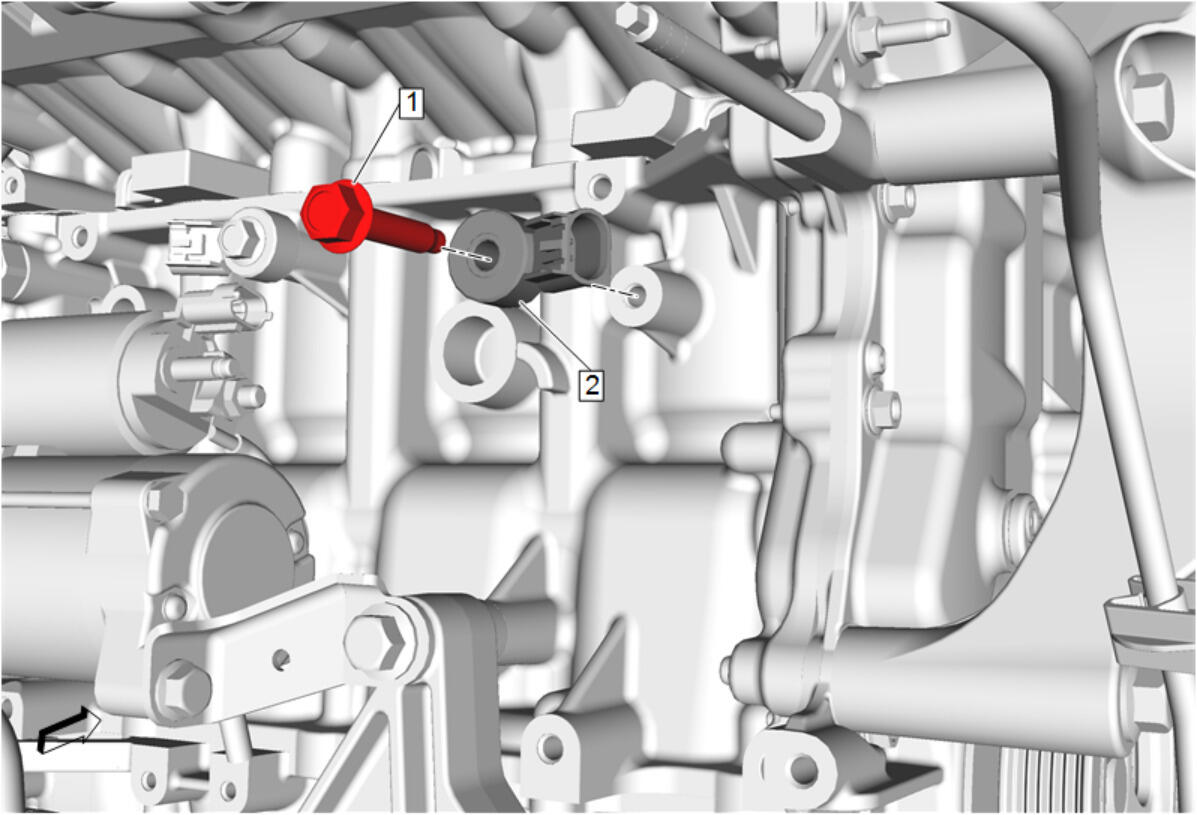

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Generator Replacement |
|
| 1 | Knock Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 2 | Knock Sensor Procedure Disconnect the electrical connector. |
