Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

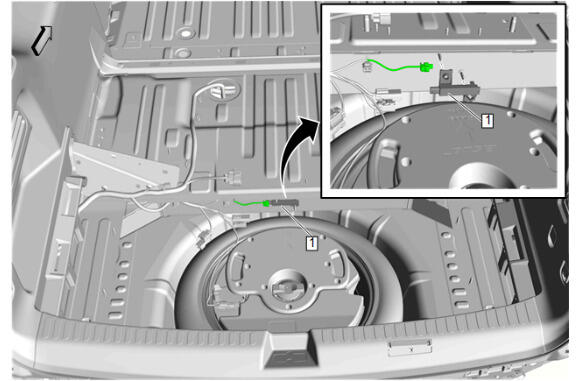

Low Frequency Rear Compartment Antenna (1) - Install
Ensure that the retaining tabs are fully secured.
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Floor Stowage Compartment Divider (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

Rear Compartment Floor Stowage Compartment Divider Retainer (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Adjust the springs (2) to make rear compartment floor panel front trim (1) engage the rear compartment floor stowage compartment divider.
Rear Compartment Floor Panel Front Trim (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Load Floor Trim Panel (1) - Install
