Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

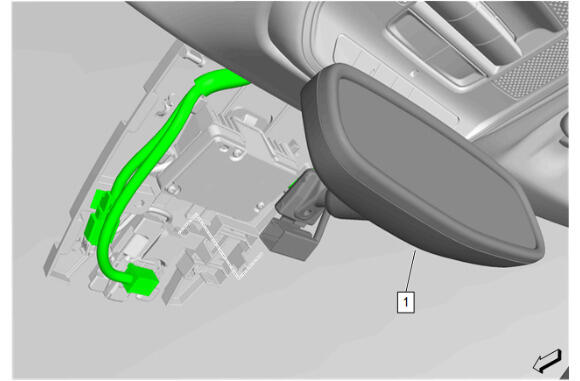

Inside Rearview Mirror (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

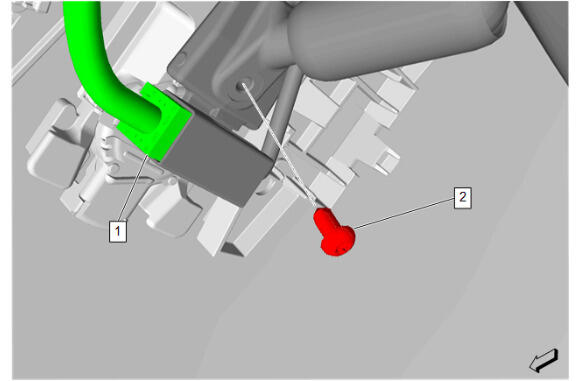

Inside Rearview Mirror Bolt (2) - Install and tighten - Fastener Specifications
{ If equipped } Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

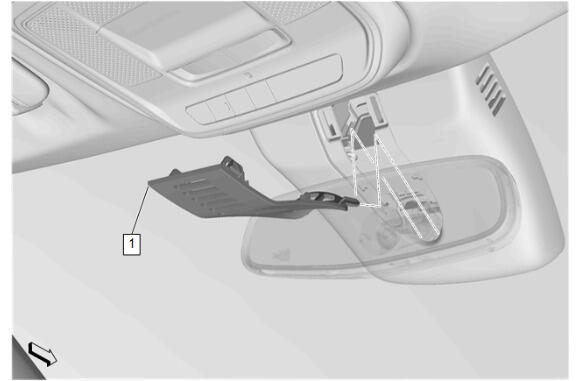

Windshield Multifunction Sensor Mount Bracket Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

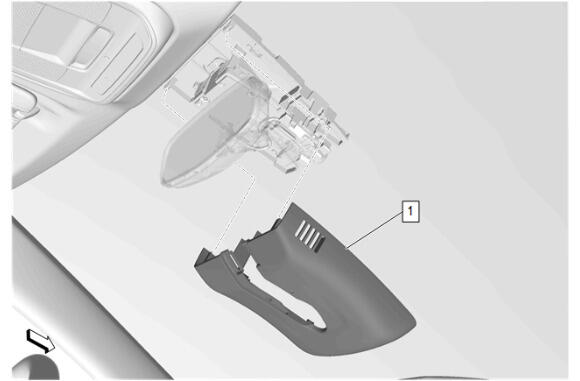

Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install
