Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

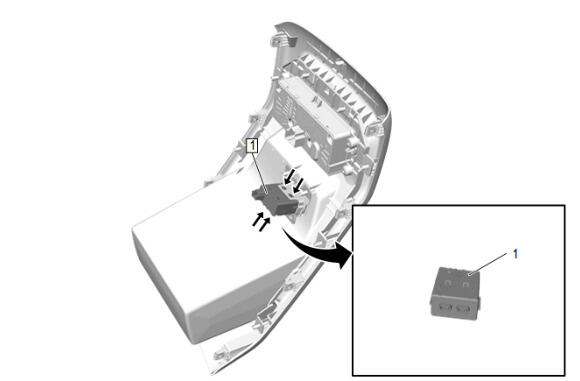

Dual Charge Only Receptacle (1) - Install
Ensure that the retaining tabs are fully secured.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Front Floor Console Rear Trim Panel (1) - Install
