Installation Procedure

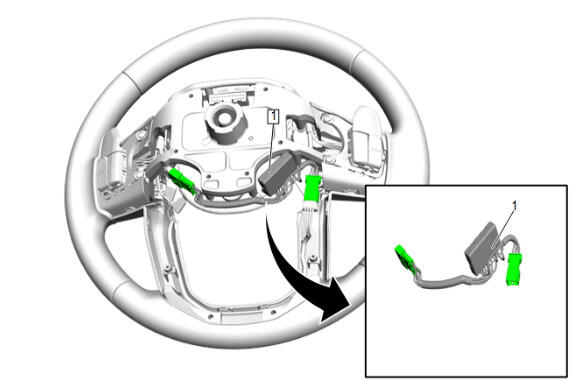

Heated Steering Wheel Module (1) - Install
- Connect the electrical connector.

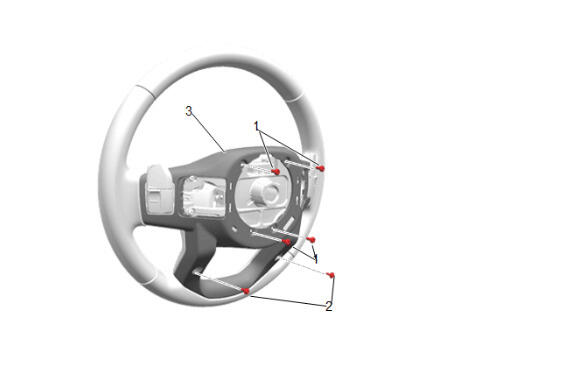

Steering Wheel Shroud (3) - Install
- Cruise Control Switch Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Steering Wheel Spoke Cover Bolt (1) - Install and tighten [4x] - Fastener Specifications

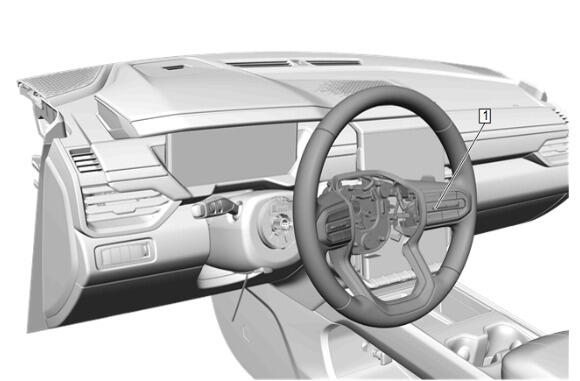

Steering Wheel (1) - Install
Connect the electrical connectors. (2)
- If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Remove loose debris from internal and external threads using compressed air.
- Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

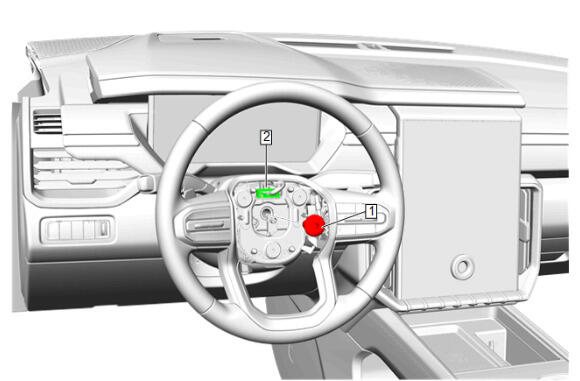

- Steering Wheel Bolt (1) - Install and tighten - Fastener Specifications
Connect the electrical connectors.

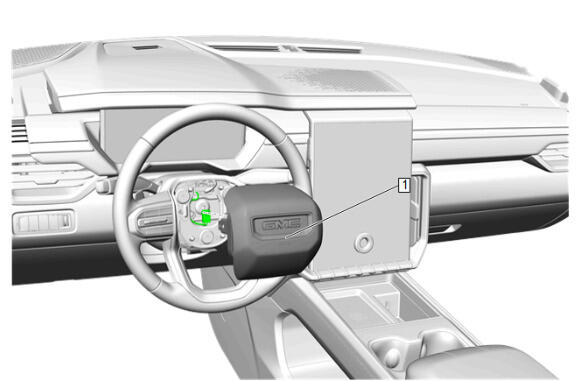

- Steering Wheel Airbag (1) - Install

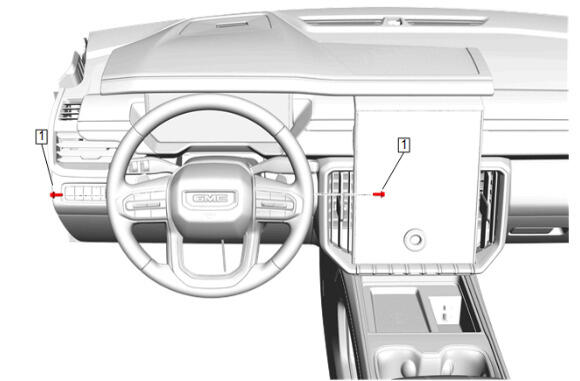

Steering Wheel Airbag Bolt (1) - Install and tighten [2x] - Fastener Specifications

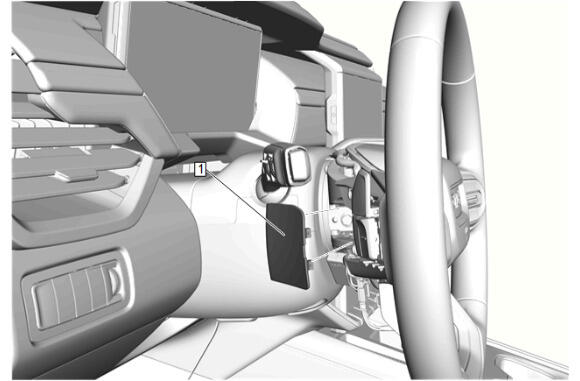

Steering Wheel Airbag Access Hole Cover - Left Side and Right Side (1) - Install [2x]
- Enable the SIR System. SIR Disabling and Enabling
CAUTION:
Refer to Fastener Caution .
WARNING:
After installation of the steering wheel airbag module to the steering wheel, slightly pull the module outward. If there is no give on the airbag module then it is secured correctly. If the airbag module is not fully attached personal injury could result.
