Installation Procedure

  1. GM6396027Courtesy of GENERAL MOTORS COMPANY

    Steering Column Tilt Wheel and Telescope Control Module (2) - Install

  2. Connect the electrical connector.
    3. CAUTION:

    Fastener Caution .

  3. Steering Column Tilt Wheel and Telescope Control Module Bolt (1) - Install and tighten - Fastener Specifications

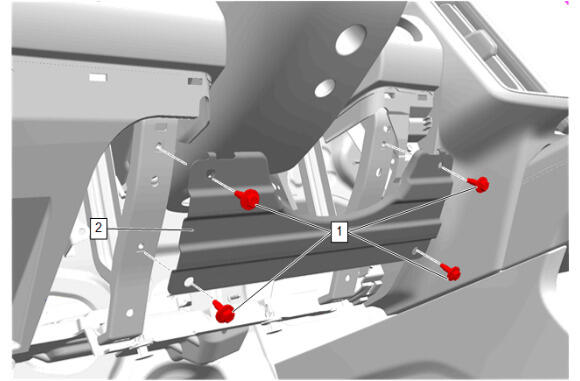

  4. GM6467057Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Deflector (2) - Install

  5. Instrument Panel Tie Bar Bolt (1) - Install and tighten [4x] - Fastener Specifications

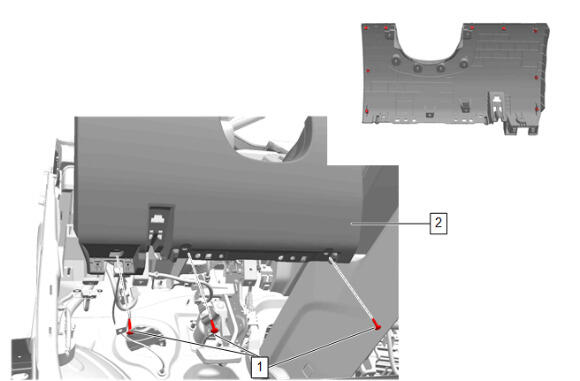

  6. GM6467059Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (2) - Install

  7. Instrument Panel Knee Bolster Bolt (1) - Install and tighten [3x] - Fastener Specifications

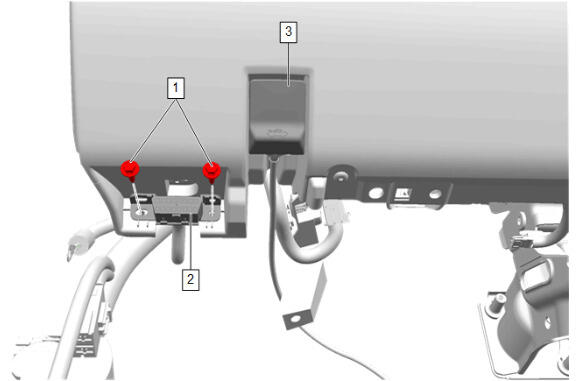

  8. GM6467058Courtesy of GENERAL MOTORS COMPANY

    Hood Primary Latch Release Cable Handle (3) - Install

  9. Install the On - Board Diagnostics (2) from the Instrument Panel Knee Bolster.
  10. The On - Board Diagnostics Bolt. (1) - Install and tighten [2x] - Fastener Specifications

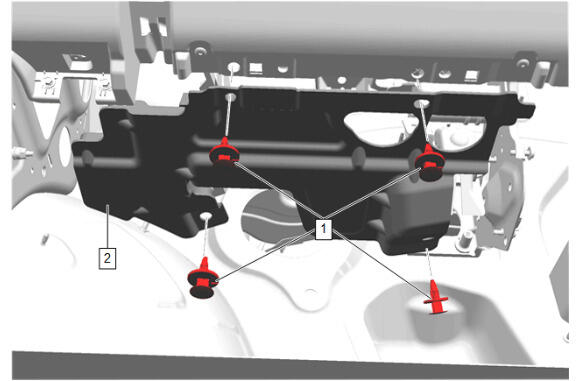

  11. GM6467063Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator - Left Side (2) - Install

  12. Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install [4x]

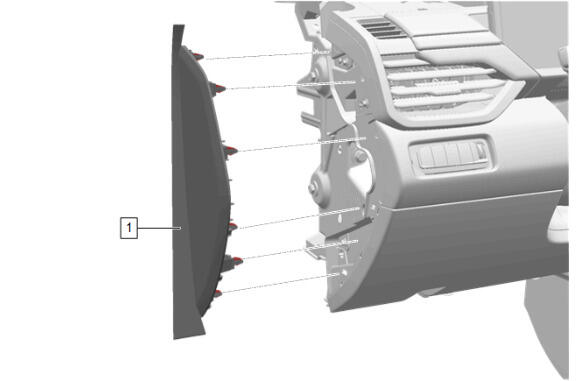

  13. GM6467067Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Left Side (1) - Install

  14. Program the steering column tilt wheel and telescope control module. Control Module References
