Installation Procedure

  1. Transfer the match marks from the old steering linkage inner tie rod to the new steering linkage inner tie rod.

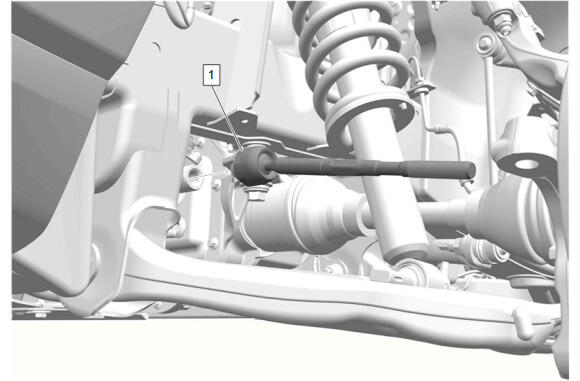

  2. GM6204557Courtesy of GENERAL MOTORS COMPANY

    Steering Linkage Inner Tie Rod (1) - Install

  3. GM6204561Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Holding the steering gear rack bar with anything other than a non-serrated adjustable wrench will cause damage to the steering gear.

    Hold the electric belt drive rack and pinion steering gear bar (2) with a non-serrated adjustable wrench.

    4. CAUTION:

    Fastener Caution .

  4. Using a universal inner tie rod wrench, tighten the steering linkage inner tie rod (1). Fastener Specifications
  5. Remove the shop towel from the electric belt drive rack and pinion steering gear bar.
  6. GM5840653Courtesy of GENERAL MOTORS COMPANY

    Position a NEW steering gear boot inner clamp (1) on the steering gear boot (2).

  7. GM6204513Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Boot (1) - Install

  8. GM6212850Courtesy of GENERAL MOTORS COMPANY

    Using the CH-22610  Keystone Clamp Pliers (2), tighten the steering gear boot inner clamp (1).

  9. GM6204511Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Boot Clamp (1) - Install

  10. GM6204542Courtesy of GENERAL MOTORS COMPANY

    Install the steering linkage inner tie rod nut (1) until aligned with the previously placed matched mark on the steering linkage inner tie rod.

  11. GM6197250Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Ensure the Outer Tie Rod Boot is not twisted or deformed during assembly. If the boot is twisted or deformed, damage to the boot will occur.

    If reusing the steering linkage outer tie rod (1), add a small amount of grease on the lip of the rubber boot seal to prevent twisting or deforming of the boot. Do NOT apply grease to the ball joint stud. Adhesives, Fluids, Lubricants, and Sealers

  12. Steering Linkage Outer Tie Rod (1) - Install
  13. GM6202624Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Steering Linkage Outer Tie Rod (2) @ Front Steering Knuckle - Install

  14. Steering Linkage Outer Tie Rod Nut (1) - Install and tighten - Fastener Specifications
  15. Install underbody panels as necessary. Underbody Panel Component Locator
  16. Front Wheelhouse Liner - Install - Front Wheelhouse Liner Replacement (- SD0) , or Front Wheelhouse Liner Replacement (SD0)
  17. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (RD6 / RPP) , or Tire and Wheel Removal and Installation (QW5 / R1U / R34 / PZX / PZI / RQ8 / RQL / RD4 / RD5 / RPS / NZS / NZT)
  18. Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
