Installation Procedure

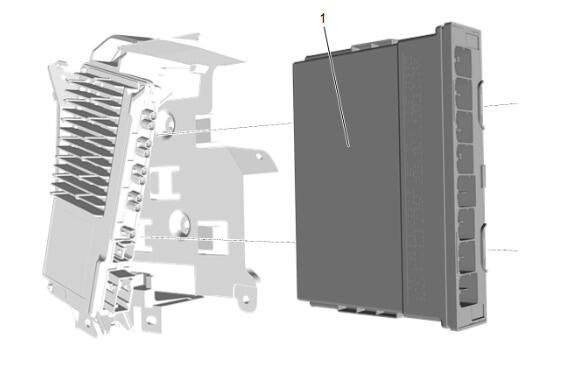

  1. GM6177264Courtesy of GENERAL MOTORS COMPANY

    Body Control Module (1) - Install

  2. Secure the retaining tabs.

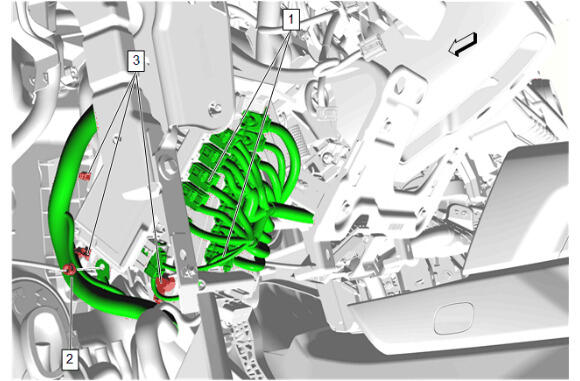

  3. GM6177261Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Wiring Harness Ground Nut (2) - Install and tighten - Fastener Specifications

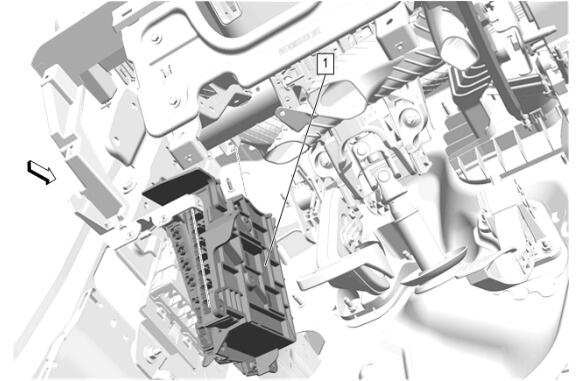

  4. GM6177263Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Body Control Module Bracket (1) - Install

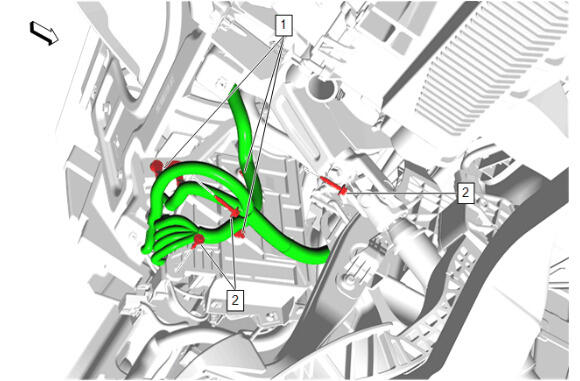

  5. GM6177262Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    CAUTION:

    Refer to Fastener Caution .

    Video Processing Module Bracket Bolt (2) - Install and tighten [3x] - Fastener Specifications

  6. Connect the instrument panel wiring harness and body wiring harness retainers (1).
  7. GM6177261Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Connect the instrument panel wiring harness retainers (3).

  8. Connect the instrument panel wiring harness and body wiring harness connectors (1).
  9. GM6139339Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

    Connect the electrical connector.

  10. Instrument Panel Knee Bolster (1) - Install
  11. GM6139338Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct Retainer (3) - Install

  12. Instrument Panel Knee Bolster Bolt (2) - Install and tighten [3x] - Fastener Specifications
  13. Hood Primary Latch Release Cable Handle (1) - Install

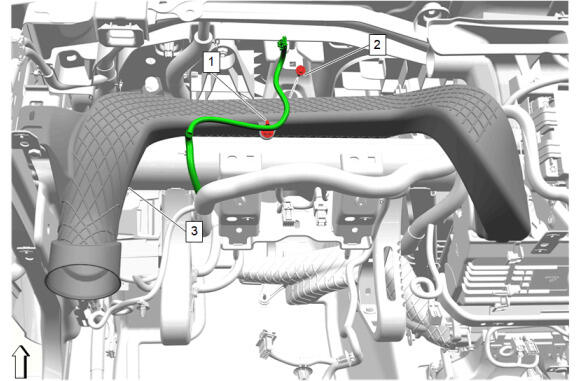

  14. GM6140731Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Instrument Panel Outer Air Outlet Duct - Left Side (3) - Install

  15. Instrument Panel Outer Air Outlet Duct Bolt (2) - Install and tighten - Fastener Specifications
  16. Connect the wire harness retainer (1) to the instrument panel outer air outlet duct (3).

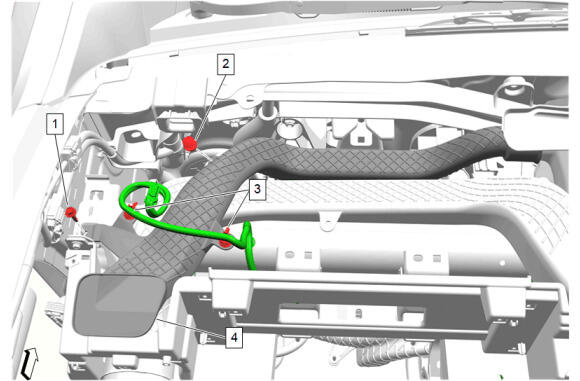

  17. GM6140327Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct - Left Side (4) - Install

  18. Connect the instrument panel wire harness retainers (3) to the side window defogger outlet - left side (4).
  19. Side Window Defogger Outlet Duct Retainer (2) - Install
  20. Instrument Panel Outer Air Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications

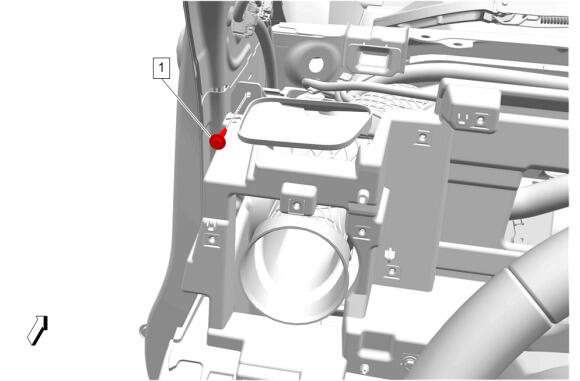

  21. GM6205796Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Carrier Bolt (1) - Install and tighten - Fastener Specifications

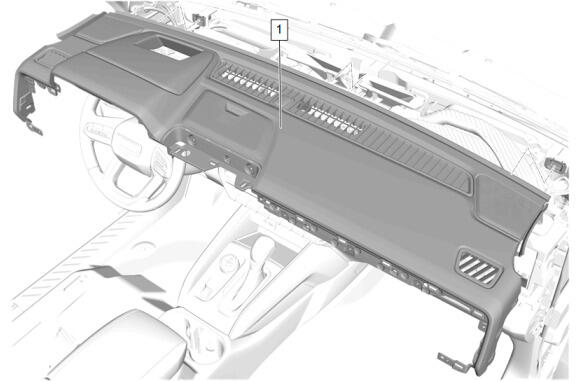

  22. GM6132763Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel - Install - Instrument Panel Upper Trim Panel Removal and Installation

  23. Perform the necessary programming and setup procedure:Control Module References .
