Installation Procedure

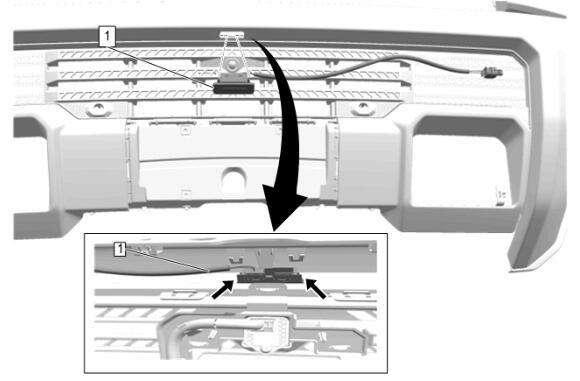

  1. GM6356664Courtesy of GENERAL MOTORS COMPANY

    Hood Latch Release Switch (1) - Install

  2. Connect the electrical connector.
  3. GM5788843Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the fascia. (1) Front Bumper Fascia Removal and Installation
