Home › GMC › 2024 › Hummer EV 2 › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry And Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Passive, and Keyless Start

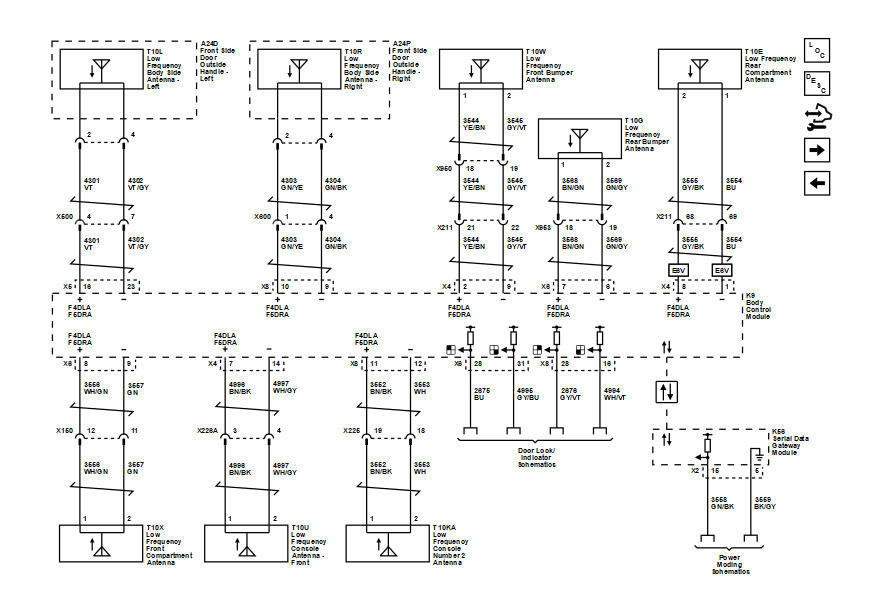

Keyless Entry - Passive, and Keyless Start

GM6124373Courtesy of GENERAL MOTORS COMPANY
