Installation Procedure

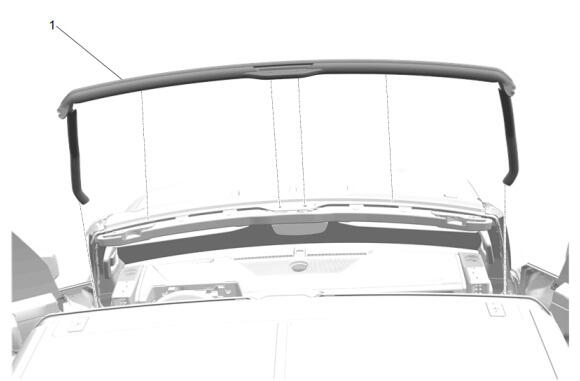

  1. GM6186847Courtesy of GENERAL MOTORS COMPANY

    Clean around the mating surface of the seal with a 50/50 mixture of isopropyl alcohol and water by volume on dampened lint-free cloth.

  2. Windshield Frame Weatherstrip (1) - Install
  3. Starting at one end of the windshield frame weatherstrip (1) seat the windshield frame weatherstrip at all the contact points.
  4. Install the retainers as necessary.
  5. GM6186846Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    NOTE:

    Left side shown, right side similar.

    Windshield Frame Weatherstrip Bolt - Left Side and Right Side (1) - Install and tighten [4x] - Fastener Specifications

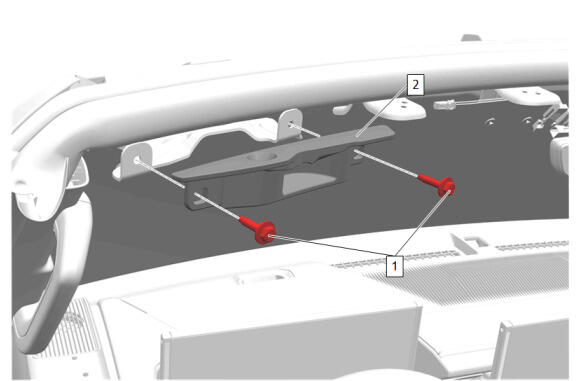

  6. GM5831092Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    If required, adjust the roof lift off panel/window front striker for proper roof lift off window alignment and closing efforts.

    Roof Lift Off Panel/Window Front Striker (1) - Install

  7. Roof Lift Off Panel/Window Front Striker Bolt (1) - Install and tighten [2x] - Fastener Specifications
  8. Using a clean towel and isopropyl alcohol, remove the grease pencil markings.

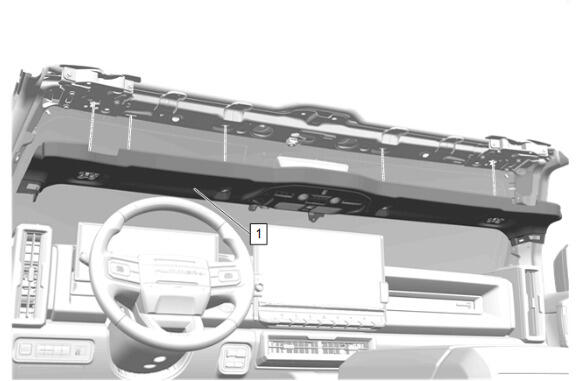

  9. GM5777020Courtesy of GENERAL MOTORS COMPANY

    Sunshade - Install [2x]

  10. Install the retainer that attaches the sunshade to the windshield upper garnish molding (1) on both sides of the vehicle.
  11. Connect the electrical connectors.
  12. Windshield Upper Garnish Molding (1) - Install

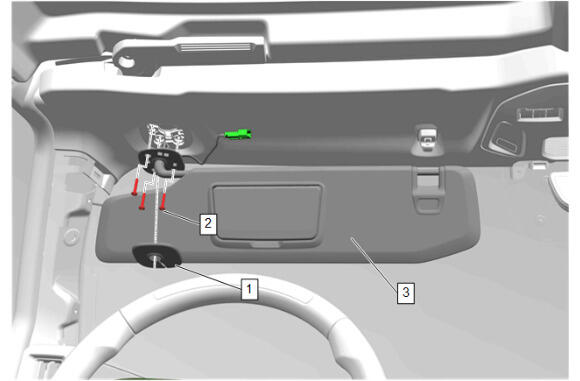

  13. GM5775707Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Sunshade Bolt (2) - Install and tighten [6x] - Fastener Specifications

  14. Sunshade Retainer Bolt Cover (1) - Install [2x]

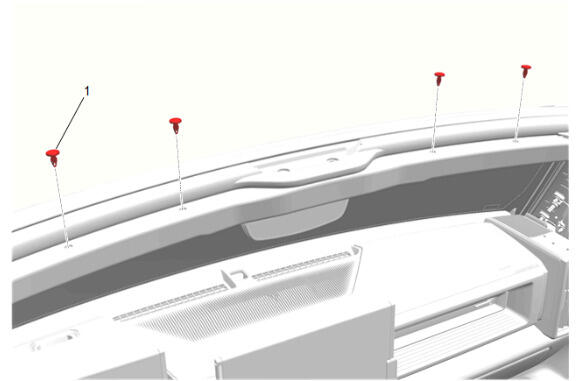

  15. GM5801475Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Windshield Upper Garnish Molding Clip (1) - Install [4x]

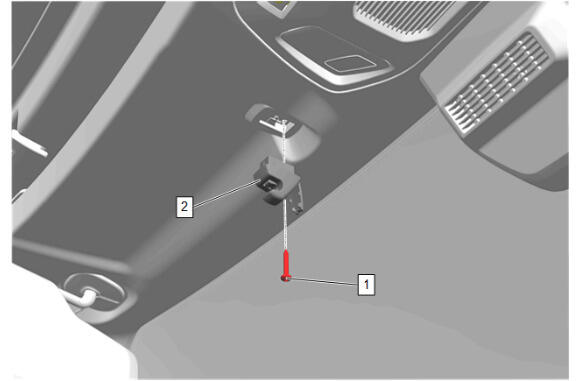

  16. GM5764790Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Sunshade Support (2) - Install [2x]

  17. Sunshade Support Bolt (1) - Install and tighten [2x] - Fastener Specifications
  18. Close the sunshade support bolt access covers on both sides of the vehicle.
  19. GM5810458Courtesy of GENERAL MOTORS COMPANY

    Install the windshield multifunction sensor mount bracket cover (1) ensuring the retaining tabs are fully seated.

  20. GM5810520Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install

  21. Apply pressure upward on the windshield multifunction sensor mount bracket cover insert (1) to engage the retaining tabs.

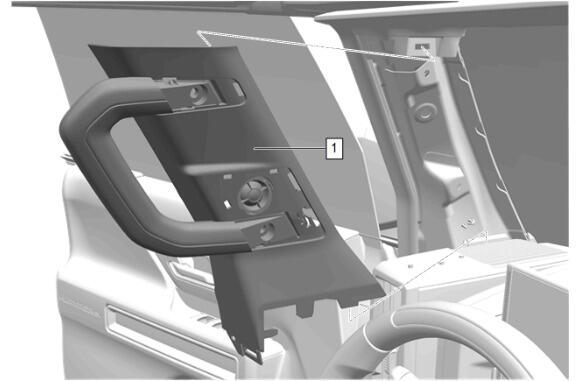

  22. GM5775880Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Connect the electrical connectors.

  23. Windshield Garnish Molding (1) - Install [2x]

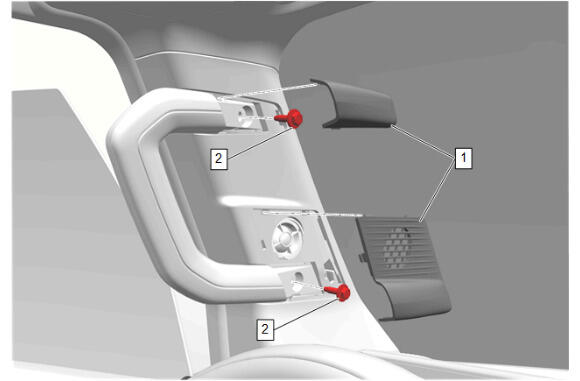

  24. GM5775868Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Windshield Pillar Assist Handle Bolt (2) - Install and tighten [2x] - Fastener Specifications

  25. Windshield Pillar Assist Handle Cover (1) - Install [2x]

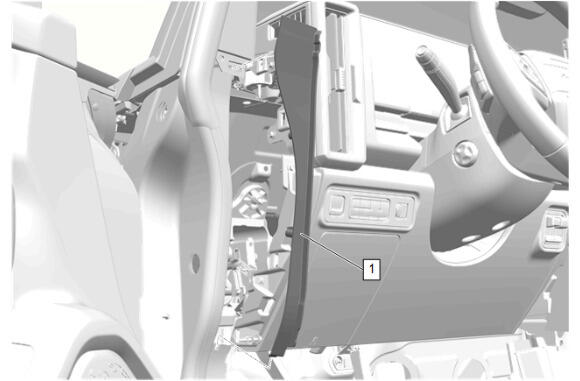

  26. GM5775858Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Body Hinge Pillar Garnish Molding (1) - Install [2x]

  27. Reposition the weatherstrip as necessary.
  28. GM5775549Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Instrument Panel Outer Trim Cover (1) - Install [2x]

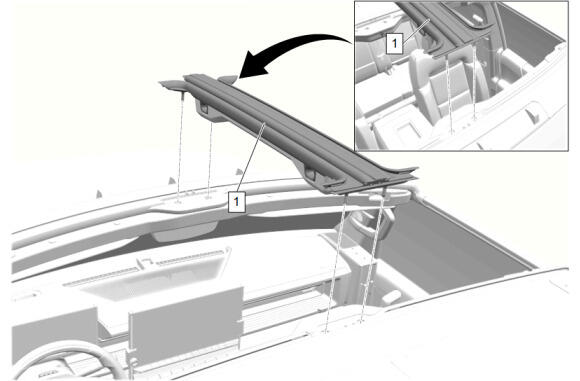

  29. GM5832364Courtesy of GENERAL MOTORS COMPANY

    Center Roof Lift Off Panel (1) - Install

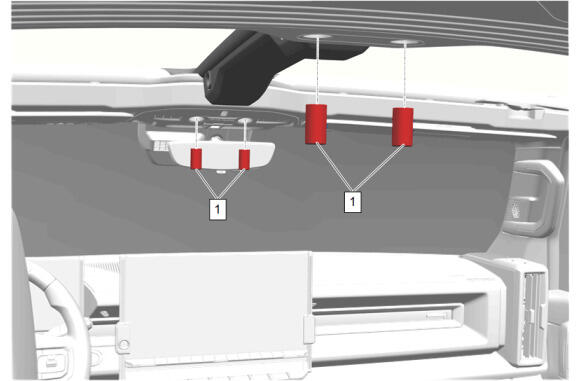

  30. GM5832341Courtesy of GENERAL MOTORS COMPANY

    Center Roof Lift Off Panel Nut (1) - Install and tighten [4x] - Fastener Specifications

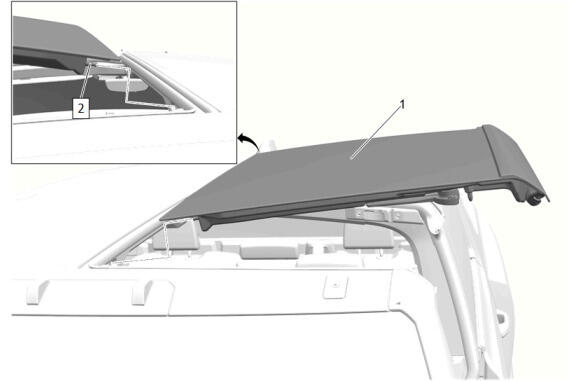

  31. GM5823891Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Slide the left and ride side roof lift off windows (1) inward to engage the roof lift off panel/window rear locating pins (2).

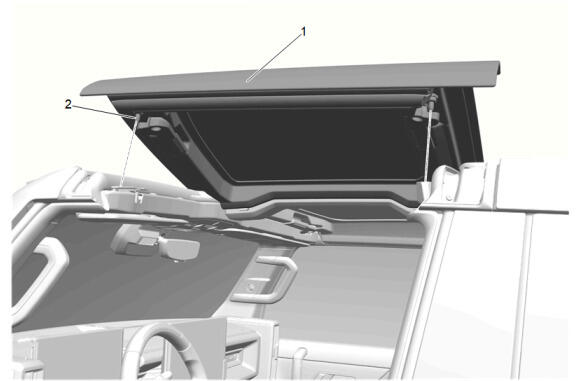

  32. GM5823889Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Gently lower the roof lift off window (1) to engage the removable top locating pin (2) on both sides of the vehicle.

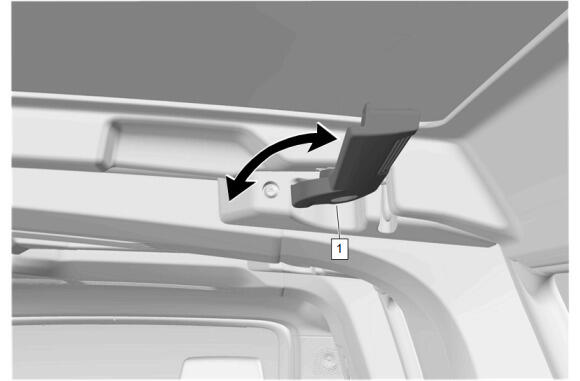

  33. GM5823888Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Rotate the roof lift off pane/window rear latch (1) inward until full travel is reached on both sides of the vehicle.

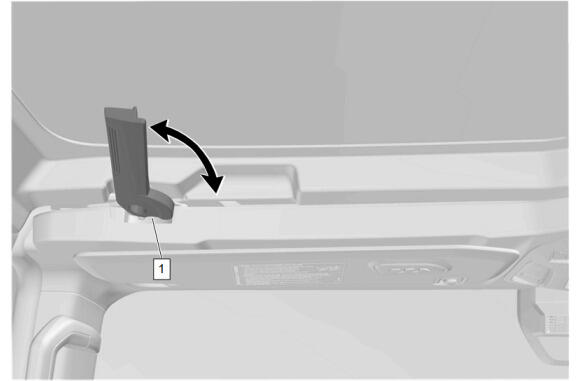

  34. GM5823884Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Rotate the roof lift off pane/window latch (1) inward until full travel is reached on both sides of the vehicle.
