Removal Procedure

  1. Remove the right rear tire and wheel assembly. Tire and Wheel Removal and Installation
  2. GM6126883Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, remove the fascia. (1) Rear Bumper Fascia Removal and Installation (GQH / GQI / GQO) , or Rear Bumper Fascia Removal and Installation (GQ2 / GQB / GQC)

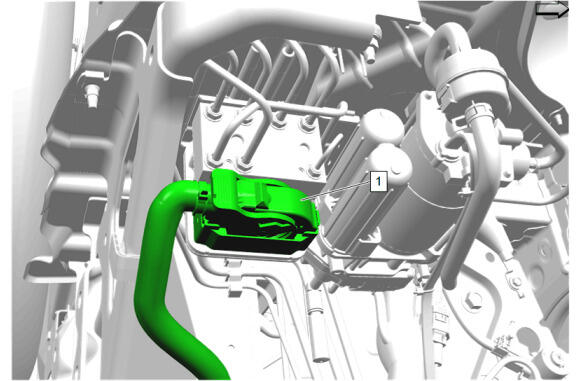

  3. GM6154262Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Disconnect

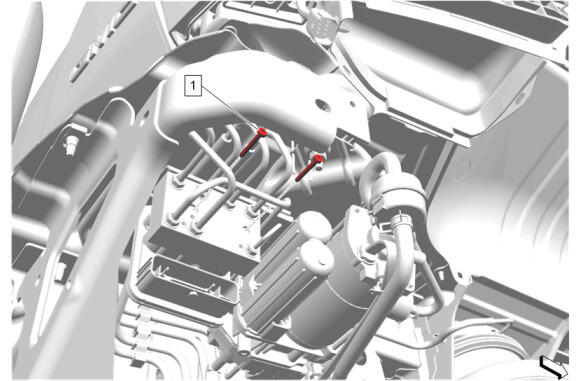

  4. GM6154261Courtesy of GENERAL MOTORS COMPANY

    Automatic Level Control Air Compressor Bolt (1) - Remove [2x]

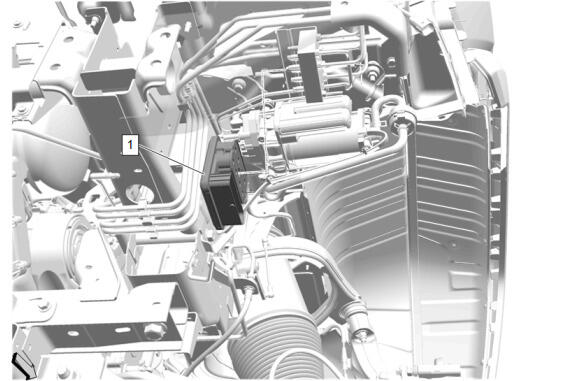

  5. GM6154263Courtesy of GENERAL MOTORS COMPANY

    Air Suspension Control Module (1) - Remove
