Removal Procedure

  1. GM5776099Courtesy of GENERAL MOTORS COMPANY

    Remove the left and right front floor mat (1).

  2. GM5776100Courtesy of GENERAL MOTORS COMPANY

    Using a suitable plastic trim tool, release the retaining tabs.

  3. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Remove
  4. Front Floor Console Extension Bolt (2) - Remove
  5. GM5776101Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Move the front seat to access the retainers.

  6. Using a flat bladed plastic trim tool, release the retaining clips.
  7. Front Floor Console Extension Panel - Left Side (1) - Remove
  8. GM5776103Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Using a flat bladed plastic trim tool, release the retaining clips.

  9. Front Floor Console Lower Applique - Left Side (1) - Remove
  10. GM6124682Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

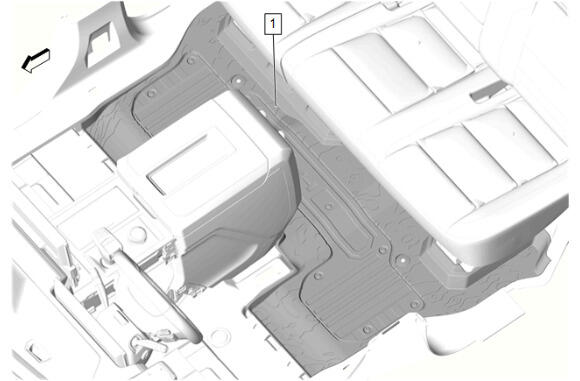

    Rear Floor Mat (1) - Remove

  11. GM5776104Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Move the front seat to access the retainers.

  12. Using a suitable plastic trim tool, release the retaining tabs.
  13. Front Floor Console Bolt Access Hole Cover - Left Side (1) - Remove
  14. Front Floor Console Retainer Bolt (2) - Remove [5x]
  15. GM5776102Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Move the front seat to access the retainers.

  16. Using a flat bladed plastic trim tool, release the retaining clips.
  17. Front Floor Console Extension Panel- Right Side (1) - Remove
  18. GM5777829Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Using a flat bladed plastic trim tool, release the retaining clips.

  19. Front Floor Console Lower Applique- Right Side (1) - Remove
  20. GM5776105Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Move the front seat to access the retainers.

  21. Using a suitable plastic trim tool, release the retaining tabs.
  22. Front Floor Console Bolt Access Hole Cover- Right Side (1) - Remove
  23. Front Floor Console Retainer Bolt (2) - Remove [5x]
  24. GM5787899Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Disconnect the electrical connectors from the front floor console (1).

  25. Slide the front floor console (1) back enough to clear the instrument panel.
  26. GM5787235Courtesy of GENERAL MOTORS COMPANY

    Release the retainers with a suitable plastic trim tool.

  27. Reposition the front floor console cup holder trim plate (1) to access the electrical connectors.
  28. Disconnect the electrical connectors.
  29. GM5787236Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Trim Plate (1) - Remove

  30. GM5784690Courtesy of GENERAL MOTORS COMPANY

    Ride Control Switch Bracket Bolt (1) - Remove [x4]

  31. Ride Control Switch (2) - Remove
