Removal Procedure

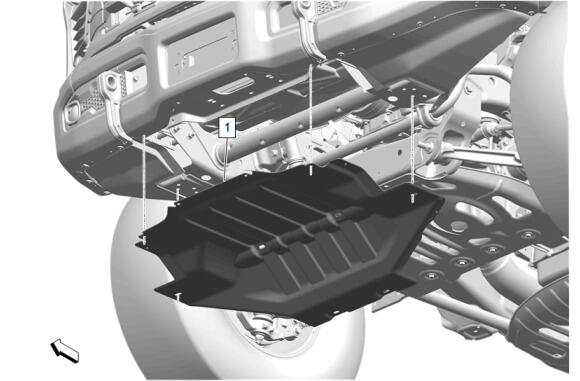

  1. GM6214918Courtesy of GENERAL MOTORS COMPANY

    Underbody Splash Shield (1) - Remove - Underbody Splash Shield Replacement (ULV)

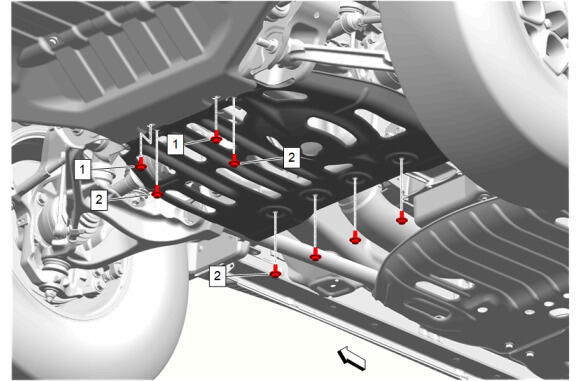

  2. GM6214822Courtesy of GENERAL MOTORS COMPANY

    Underbody Skid Shield Bolt (2) - Remove [6x]

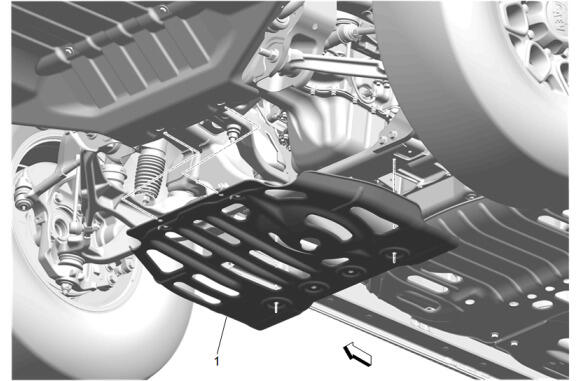

  3. GM6214832Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Skid Shield (1) - Remove

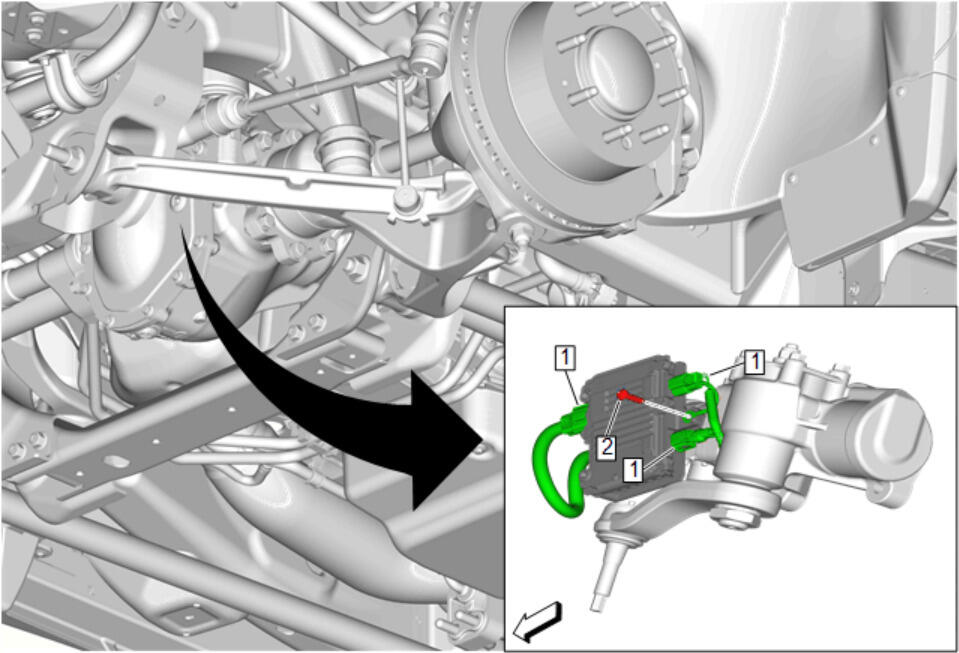

  4. GM5294847Courtesy of GENERAL MOTORS COMPANY

    Disconnect the 3 electrical connectors (1).

  5. Electronic Power Steering Motor Control Module Bracket Bolt (2) - Remove
  6. Remove the left front wheelhouse liner. Front Wheelhouse Liner Replacement

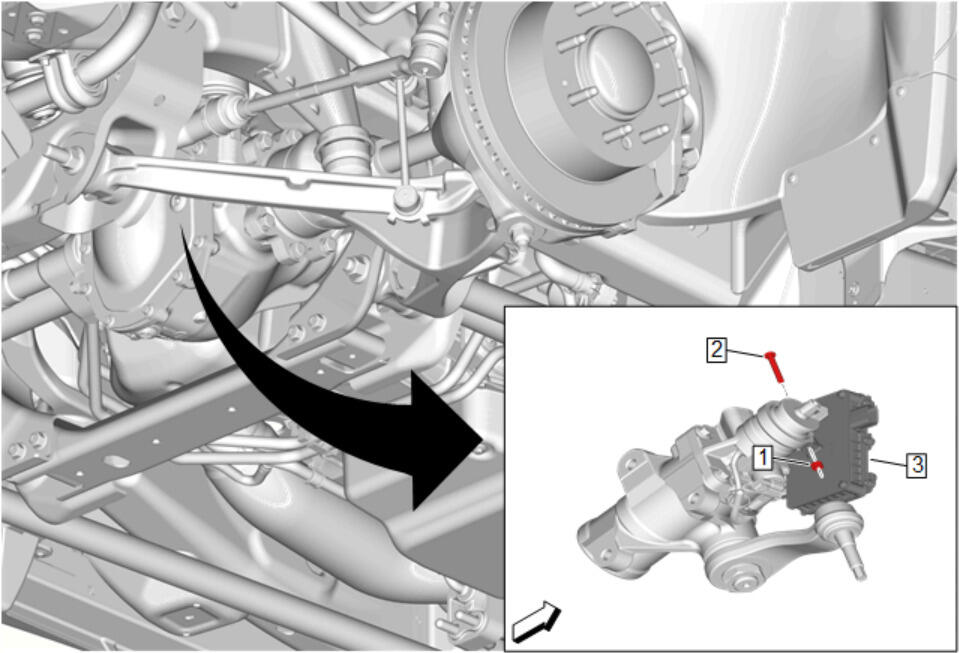

  7. GM5294840Courtesy of GENERAL MOTORS COMPANY

    Electronic Power Steering Motor Control Module Bracket Nut (1) - Remove

  8. Electronic Power Steering Motor Control Module Bracket Bolt (2) - Remove
  9. Power Steering Control Module (3) - Remove

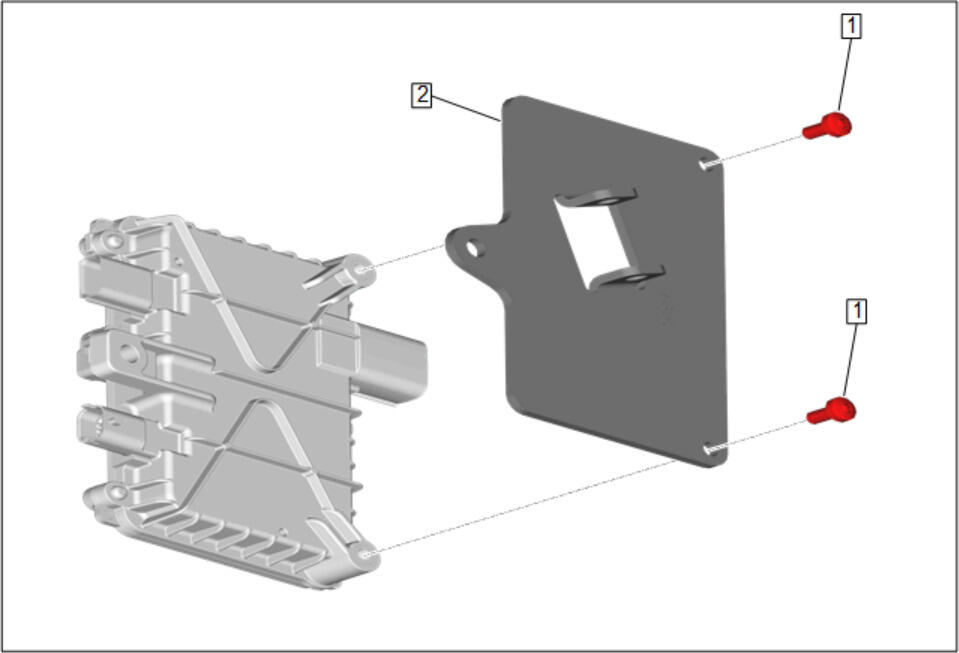

  10. GM5294846Courtesy of GENERAL MOTORS COMPANY

    Electronic Power Steering Motor Control Module Bracket Bolt (1) - Remove [2x]

  11. Electronic Power Steering Motor Control Module Bracket (2) - Remove
