Fastener Specifications

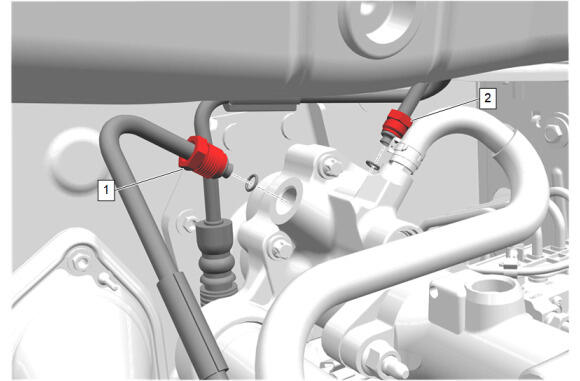

GM5787227Courtesy of GENERAL MOTORS COMPANY
Power Brake Booster

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Power Brake Booster Inlet Hose @ Power Brake Booster - - 34 N.m (25 lb ft) Power Brake Booster Inlet Hose Replacement (L5P) , or Power Brake Booster Inlet Hose Replacement (L8T)
2 Power Steering Gear Inlet Hose @ Power Brake Booster - - 34 N.m (25 lb ft) Power Steering Gear Inlet Hose Replacement (L5P & NV8) , or Power Steering Gear Inlet Hose Replacement (L8T & NV8) , or Power Steering Gear Inlet Hose Replacement (L8T - NV8) , or Power Steering Gear Inlet Hose Replacement (L5P - NV8)

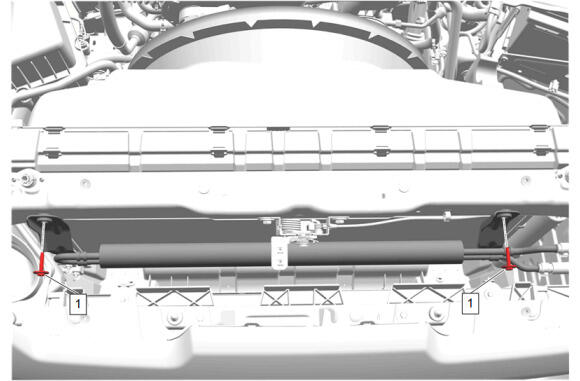

GM5787946Courtesy of GENERAL MOTORS COMPANY
Power Steering Fluid Cooler

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Power Steering Fluid Cooler Bracket Bolt [2x] - - 9 N.m (80 lb in) Power Steering Gear Inlet Hose Replacement (L5P & NV8) , or Power Steering Gear Inlet Hose Replacement (L8T & NV8) , or Power Steering Gear Inlet Hose Replacement (L8T - NV8) , or Power Steering Gear Inlet Hose Replacement (L5P - NV8)

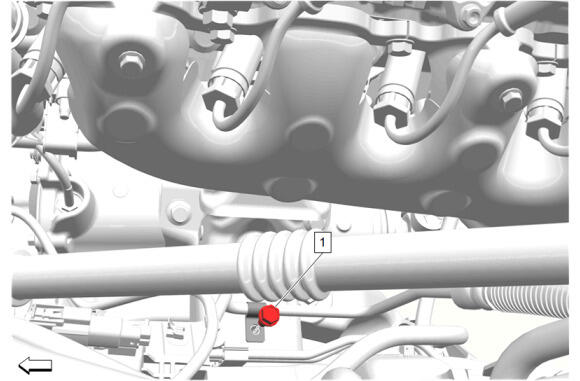

GM5787258Courtesy of GENERAL MOTORS COMPANY
Power Steering Gear Inlet Hose

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Power Steering Gear Inlet Hose Clip Bolt - - 14 N.m (10 lb ft) Power Steering Gear Inlet Hose Replacement (L5P & NV8) , or Power Steering Gear Inlet Hose Replacement (L8T & NV8) , or Power Steering Gear Inlet Hose Replacement (L8T - NV8) , or Power Steering Gear Inlet Hose Replacement (L5P - NV8)

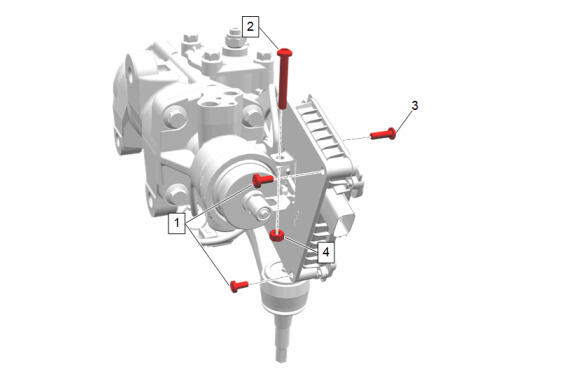

GM5787266Courtesy of GENERAL MOTORS COMPANY
Power Steering Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Electronic Power Steering Motor Control Module Bracket Bolt @ Power Steering Control Module [2x] - Yes 6 N.m (53 lb in) Power Steering Control Module Replacement (- ULV) , or Power Steering Control Module Replacement (ULV)
2 Electronic Power Steering Motor Control Module Bracket Bolt - - - Power Steering Control Module Replacement (- ULV) , or Power Steering Control Module Replacement (ULV)
3 Electronic Power Steering Motor Control Module Bracket Bolt @ Wiring Harness Ground Nut - Yes 15 N.m (11 lb ft) Power Steering Control Module Replacement (- ULV) , or Power Steering Control Module Replacement (ULV)
4 Electronic Power Steering Motor Control Module Bracket Nut - - 25 N.m (18 lb ft) Power Steering Control Module Replacement (- ULV) , or Power Steering Control Module Replacement (ULV)

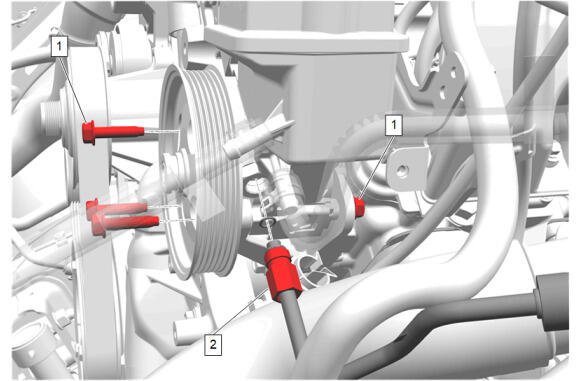

GM5787388Courtesy of GENERAL MOTORS COMPANY
Power Steering Pump - L5P

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Power Steering Pump Bolt [4x] - - 22 N.m (16 lb ft) Power Steering Pump Replacement (L5P - KHF) , or Power Steering Pump Replacement (L5P & KHF)
2 Power Brake Booster Inlet Hose @ Power Steering Pump - - 38 N.m (28 lb ft) Power Brake Booster Inlet Hose Replacement (L5P)

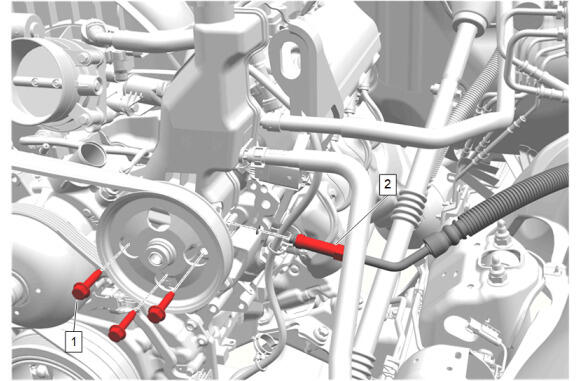

GM5787291Courtesy of GENERAL MOTORS COMPANY
Power Steering Pump - L8T

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Power Steering Pump Bolt [3x] - - 22 N.m (16 lb ft) Power Steering Pump Replacement (L8T - KHF) , or Power Steering Pump Replacement (L8T & KHF)
2 Power Brake Booster Inlet Hose @ Power Steering Pump - - 38 N.m (28 lb ft) Power Brake Booster Inlet Hose Replacement (L8T)

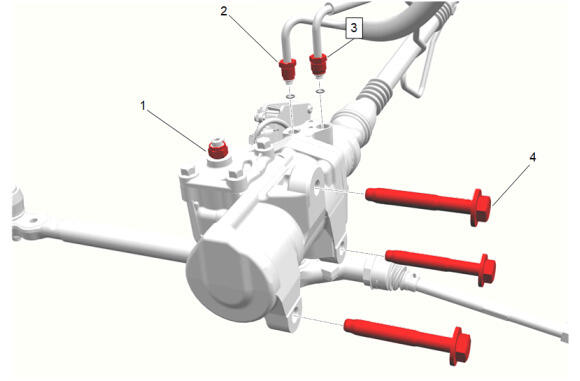

GM5787320Courtesy of GENERAL MOTORS COMPANY
Steering Gear

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Gear Pitman Shaft Lash Adjuster Nut - - 92 N.m (68 lb ft) Steering Gear Pitman Shaft Over-Center Preload Adjustment - Off Vehicle
2 Power Steering Fluid Cooler Inlet Hose @ Hydraulic Recirculating Ball Steering Gear - - 34 N.m (25 lb ft) Power Steering Fluid Cooler Inlet Hose Replacement (L5P & NV8) , or Power Steering Fluid Cooler Inlet Hose Replacement (L8T & NV8) , or Power Steering Fluid Cooler Inlet Hose Replacement (L8T - NV8) , or Power Steering Fluid Cooler Inlet Hose Replacement (L5P - NV8)
3 Power Steering Gear Inlet Hose @ Hydraulic Recirculating Ball Steering Gear - - 34 N.m (25 lb ft) Power Steering Gear Inlet Hose Replacement (L5P & NV8) , or Power Steering Gear Inlet Hose Replacement (L8T & NV8) , or Power Steering Gear Inlet Hose Replacement (L8T - NV8) , or Power Steering Gear Inlet Hose Replacement (L5P - NV8)
4 Steering Gear Bolt [3x] - - 275 N.m (203 lb ft) Hydraulic Recirculating Ball Steering Gear Replacement (SRW & NV8 - ULV) , or Hydraulic Recirculating Ball Steering Gear Replacement (DZW & NV8) , or Hydraulic Recirculating Ball Steering Gear Replacement (DZW - NV8) , or Hydraulic Recirculating Ball Steering Gear Replacement (SRW - NV8) , or Hydraulic Recirculating Ball Steering Gear Replacement (SRW & NV8 & ULV)

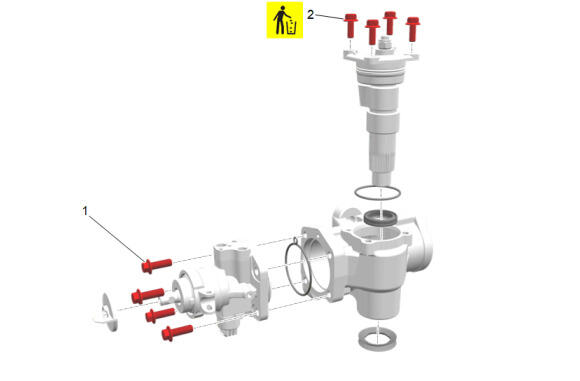

GM5787340Courtesy of GENERAL MOTORS COMPANY
Steering Gear Pitman Shaft

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Gear End Housing Bolt [4x] - - 62.5 N.m (46 lb ft) Steering Gear Valve Housing Replacement (DZW - NV8) , or Steering Gear Valve Housing Replacement (SRW - NV8)
2 Steering Gear Housing Cover Bolt [4x] - - 62.5 N.m (46 lb ft) Steering Gear Pitman Shaft Replacement (SRW & NV8 - ULV) , or Steering Gear Pitman Shaft Replacement (DZW & NV8) , or Steering Gear Pitman Shaft Replacement (DZW - NV8) , or Steering Gear Pitman Shaft Replacement (SRW - NV8) , or Steering Gear Pitman Shaft Replacement (SRW & NV8 & ULV)

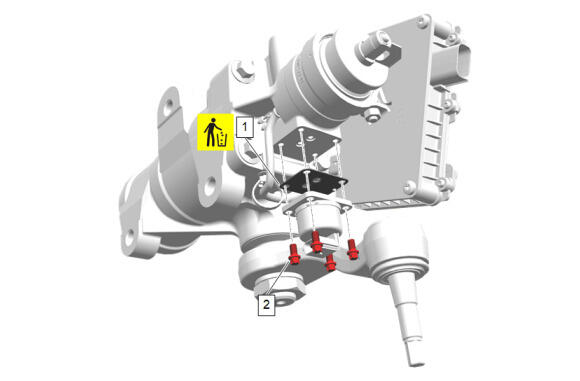

GM5787341Courtesy of GENERAL MOTORS COMPANY
Steering Gear Pressure Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Gear Pressure Sensor Seal Yes - - Steering Gear Pressure Sensor Replacement (- ULV) , or Steering Gear Pressure Sensor Replacement (ULV)
2 Steering Gear Pressure Sensor Bolt [4x] - - 7 N.m (5 lb ft) Steering Gear Pressure Sensor Replacement (- ULV) , or Steering Gear Pressure Sensor Replacement (ULV)
