Installation Procedure

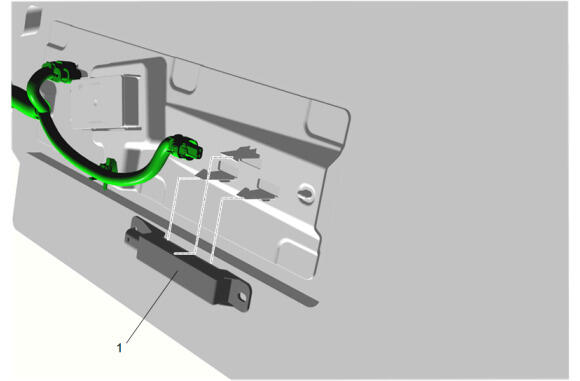

  1. GM6286484Courtesy of GENERAL MOTORS COMPANY

    Low Frequency Front Compartment Antenna(1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connector.
  4. GM6295126Courtesy of GENERAL MOTORS COMPANY

    Front Trim Finish Compartment(2) - Install - Front Trim Finish Compartment Removal and Installation
