Installation Procedure

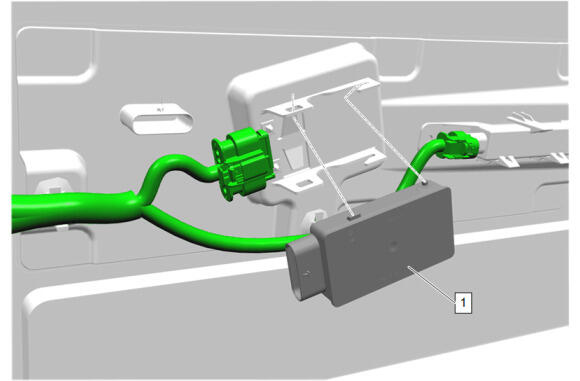

  1. GM6286483Courtesy of GENERAL MOTORS COMPANY

    UHF Low Energy Remote Control Access Sensor Transceiver(1) - Install

  2. Slide UHF Low Energy Remote Control Access Sensor Transceiver (1) into the bracket and secure the retaining tabs.
  3. Connect the electrical connector.

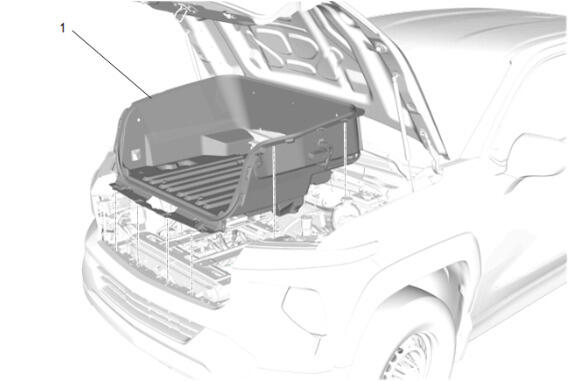

  4. GM6295126Courtesy of GENERAL MOTORS COMPANY

    Front Trim Finish Compartment(1) - Install - Front Trim Finish Compartment Removal and Installation
