Installation Procedure

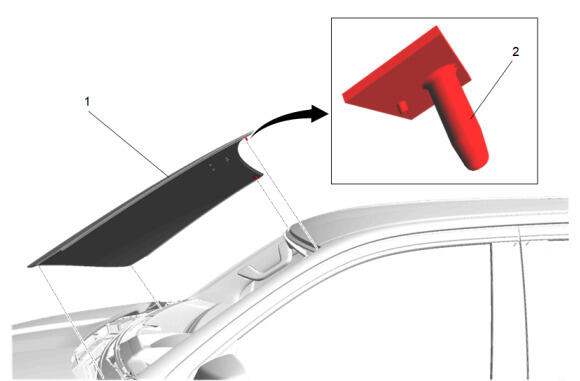

  1. GM6301301Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Ensure the bottom corners of the windshield do not come in contact with the hood hinges during installation. Damage to the windshield will occur.

    Windshield (1) - Install - Adhesive Installation of Windshields

  2. With the aid of an assistant, install the windshield (1) and locating pin (2) to the vehicle.
  3. GM5330473Courtesy of GENERAL MOTORS COMPANY

    Clean the inside of the windshield before installing the windshield multifunction sensor mount bracket (1).

  4. Windshield Multifunction Sensor Mount Bracket (1) - Install
  5. GM5567757Courtesy of GENERAL MOTORS COMPANY

    Windshield Outside Moisture/Ambient Light and Humidity Sensor (1) - Install NEW

  6. Connect the electrical connector.
  7. GM5567755Courtesy of GENERAL MOTORS COMPANY

    Front View Camera (1) - Install

  8. Slide the front view camera (1) forward to engage and rotate the front view camera upward and secure the retaining tabs.
  9. Connect the electrical connector.
  10. GM5567746Courtesy of GENERAL MOTORS COMPANY

    Inside Rearview Mirror (2) - Install

    11. CAUTION:

    Refer to Fastener Caution .

  11. Inside Rearview Mirror Bolt (1) - Install and tighten - Fastener Specifications
  12. {If equipped} Connect the electrical connectors.
  13. GM5567744Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover (1) - Install

  14. GM5567742Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install

  15. Enable the SIR System. SIR Disabling and Enabling

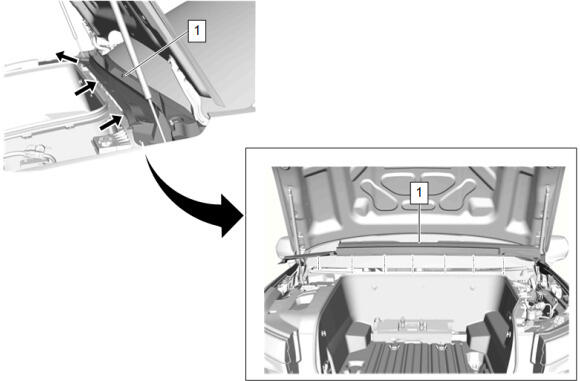

  16. GM6276089Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Verify that the air inlet grille panel is fully seated to the windshield.

    Air Inlet Grille Panel (1) - Install

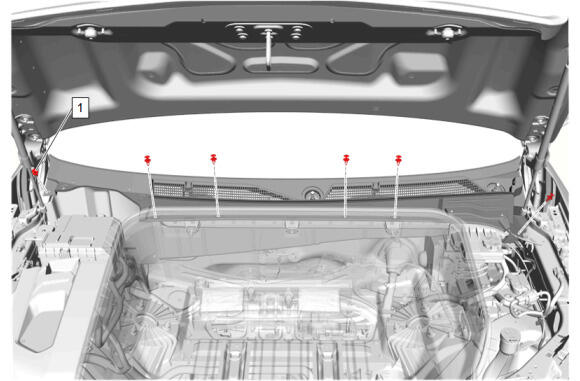

  17. GM6276088Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Front storage compartment is shown transparent to highlight retainer locations.

    Air Inlet Grille Panel Retainer (1) - Install [6x]

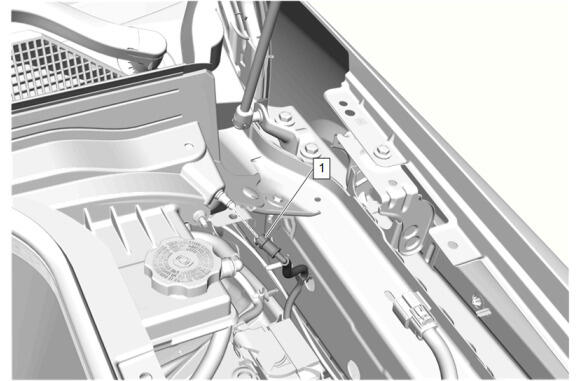

  18. GM6276087Courtesy of GENERAL MOTORS COMPANY

    Windshield Washer Pump Hose (1) - Connect

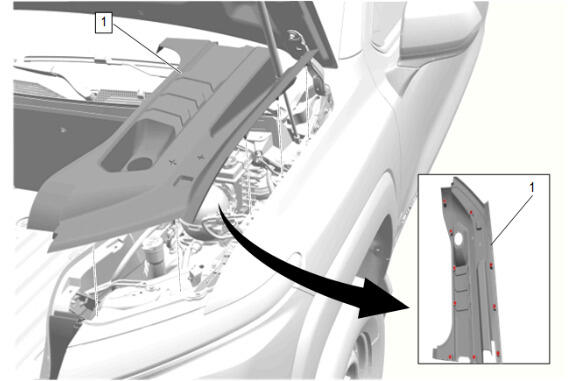

  19. GM6294354Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Side Sight Shield - Left Side (1) - Install

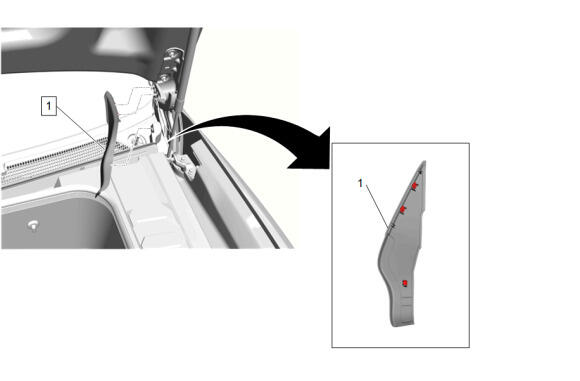

  20. GM6276080Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Extension - Left Side (1) - Install

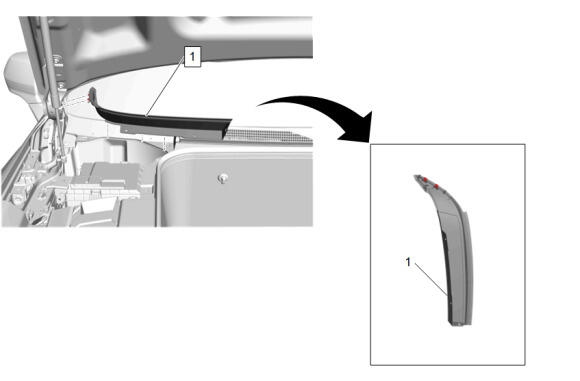

  21. GM6276074Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Extension - Right Side (1) - Install

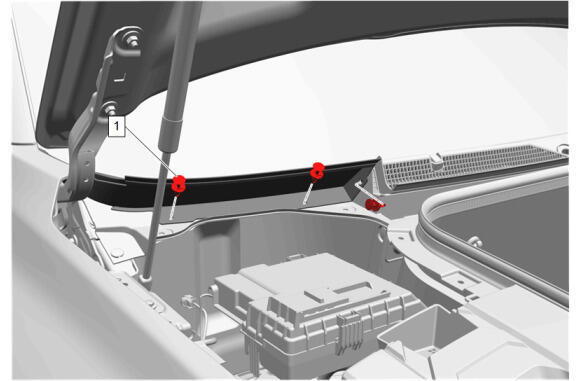

  22. GM6276066Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Retainer (1) - Install [3x]

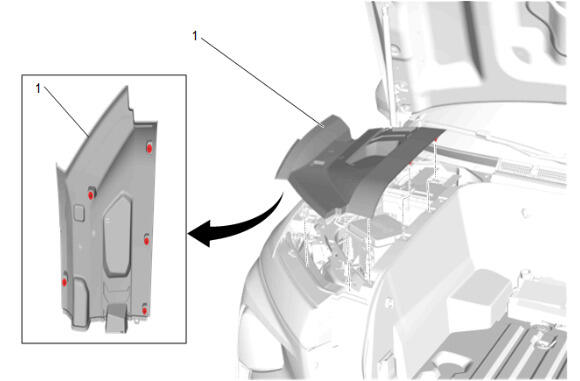

  23. GM6294374Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Rear Sight Shield - Right Side (1) - Install

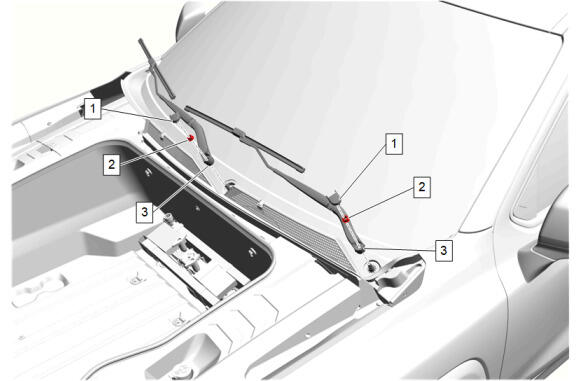

  24. GM6276050Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Clean the windshield wiper pivot shaft splines with a soft wire brush before installing the windshield wiper arms (3)

  25. Windshield Wiper Arm (3) - Install [2x]
  26. Windshield Wiper Arm Nut (2) - Install and tighten [2x] - Fastener Specifications
  27. Windshield Wiper Arm Finish Cap (1) - Install [2x]

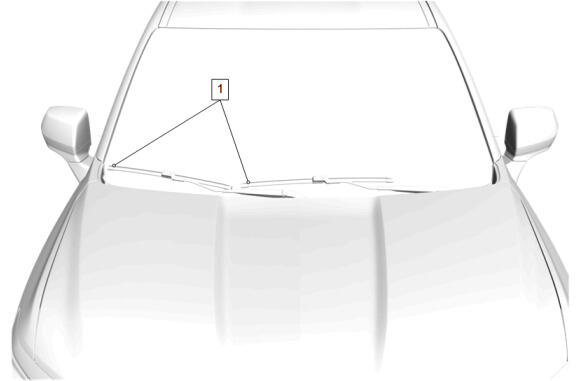

  28. GM6276697Courtesy of GENERAL MOTORS COMPANY

    If required, realign the windshield wipers to their respective alignment circles (1) on the windshield.

  29. Lubricate the windshield with clean washer fluid.
  30. Run the windshield wipers for two complete cycles then turn off the windshield wipers.
  31. Ensure the windshield wipers are in the full park position.
  32. {If equipped} Perform the front view camera learn. B174W Front View Camera - Windshield: Programming and Setup
