Fastener Specifications

GM6291654Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.

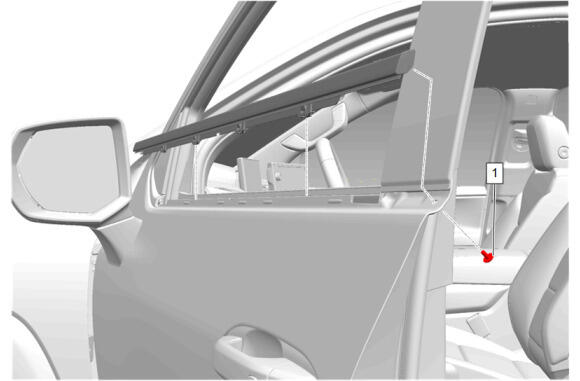

Front Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Belt Reveal Molding Bolt - - 1.5 N.m (13 lb in) Front Side Door Window Belt Reveal Molding Replacement

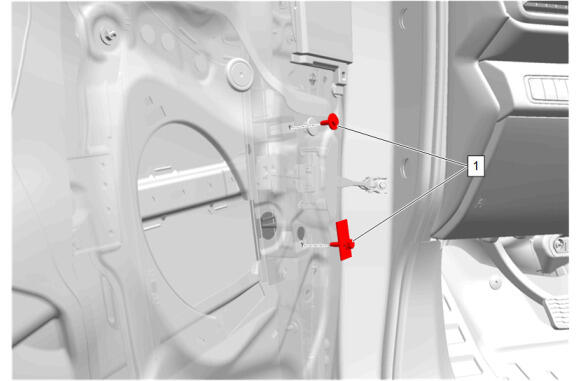

GM6298877Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Side Door Window Channel Front Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Channel Front Retainer Bolt [2x] - Yes 11 N.m (97 lb in) Front Side Door Window Channel Front Retainer Replacement
GM6276962Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.

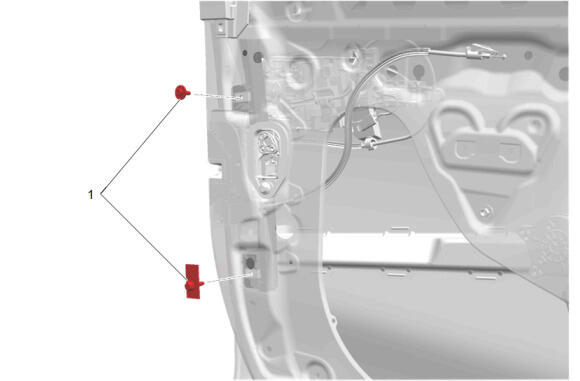

Front Side Door Window Channel Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Channel Retainer Bolt [2x] - Yes 11 N.m (97 lb in) Front Side Door Window Channel Retainer Replacement

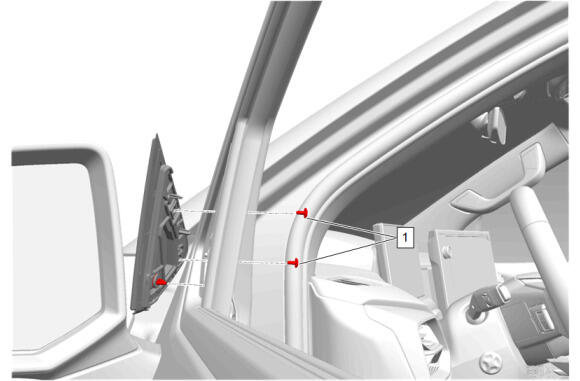

GM6293621Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Side Door Window Frame Front Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Frame Front Applique Bolt [2x] - - 1.5 N.m (13 lb in) Front Side Door Window Frame Front Applique Replacement
GM6291641Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.

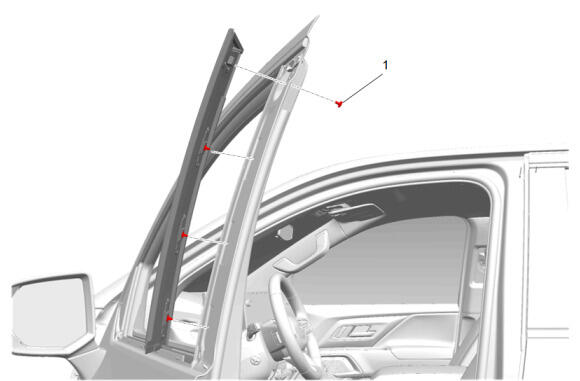

Front Side Door Window Frame Rear Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Frame Rear Applique Bolt - - 1.5 N.m (13 lb in) Front Side Door Window Frame Rear Applique Replacement

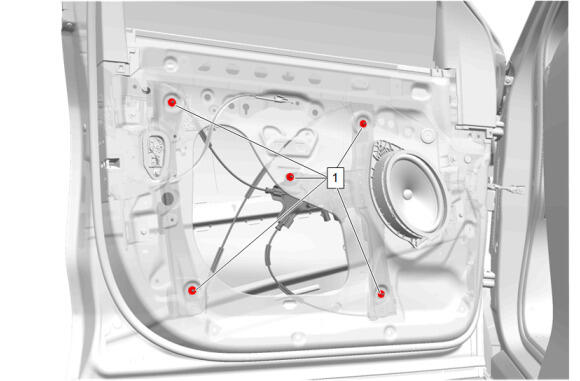

GM6298883Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Nut [5x] - - 11 N.m (97 lb in) Front Side Door Window Regulator Replacement
GM6201457Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.

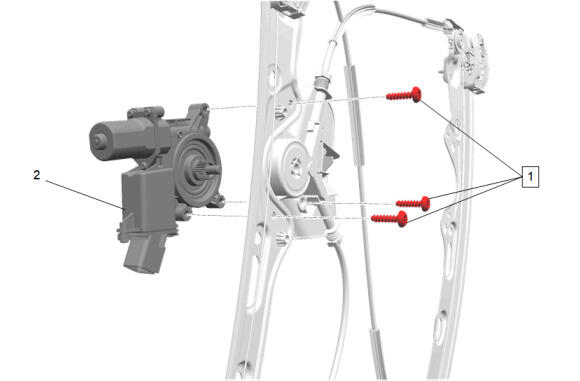

Front Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Motor Bolt [3x] - - 8 N.m (71 lb in) Front Side Door Window Regulator Motor Replacement
GM6303347Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.

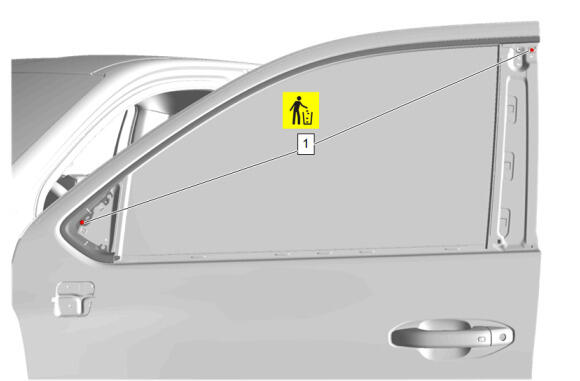

Front Side Door Window Upper Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Upper Reveal Molding Rivet [2x] Yes - - Front Side Door Window Upper Reveal Molding Replacement
GM6473489Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.

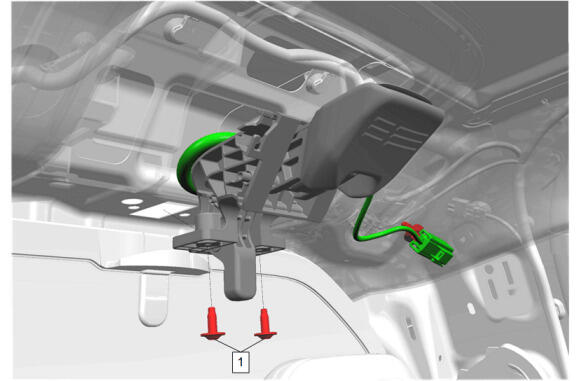

Midgate Window Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Midgate Window Latch Bolt [2x] - - 9 N.m (80 lb in) Midgate Window Latch Replacement

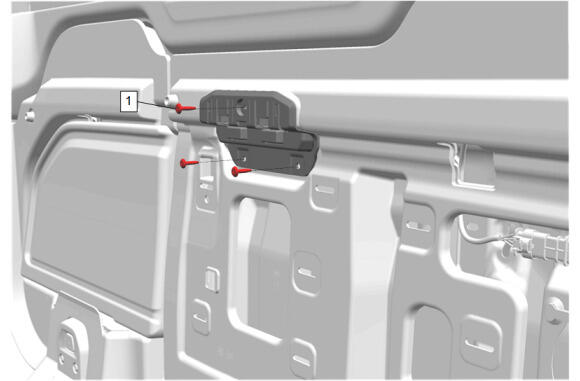

GM6498679Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Midgate Window Stowage Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Midgate Window Stowage Retainer Bolt [3x] - - 2.5 N.m (22 lb in) Midgate Window Stowage Retainer Replacement

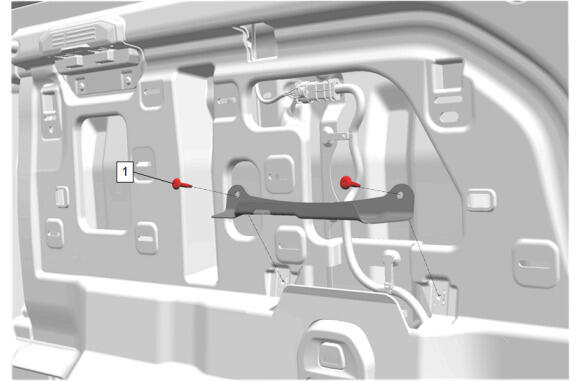

GM6498677Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Midgate Window Support

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Midgate Window Support Bolt [2x] - - 2.5 N.m (22 lb in) Midgate Window Support Replacement - Left Side
Midgate Window Support Replacement - Right Side

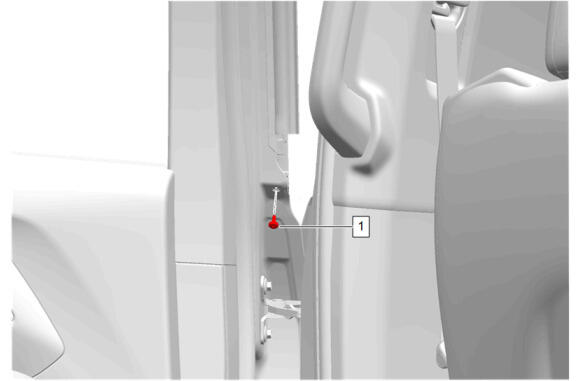

GM6304583Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Belt Reveal Molding Bolt - - 1.5 N.m (13 lb in) Rear Side Door Window Belt Reveal Molding Replacement

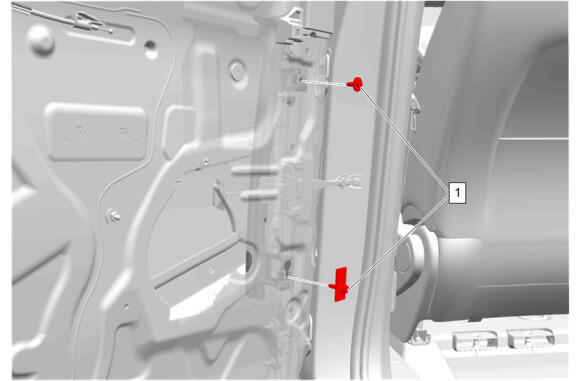

GM6306154Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Side Door Window Channel Front Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Channel Front Retainer Bolt [2x] - Yes 11 N.m (97 lb in) Rear Side Door Window Channel Front Retainer Replacement
GM6321920Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.

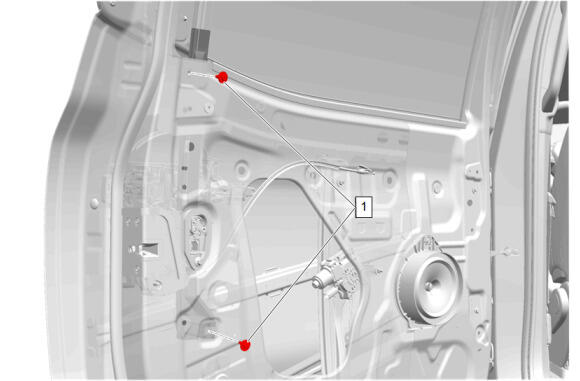

Rear Side Door Window Channel Rear Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Channel Retainer Rear Bolt [2x] - Yes 11 N.m (97 lb in) Rear Side Door Window Channel Rear Retainer Replacement

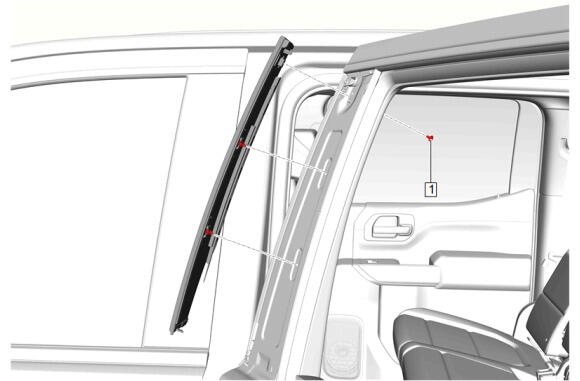

GM5661798Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Side Door Window Frame Front Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Frame Front Applique Bolt - - 1.5 N.m (13 lb in) Rear Side Door Window Frame Front Applique Replacement
GM6308630Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.

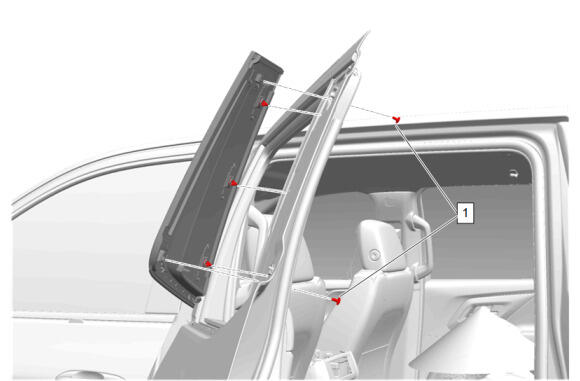

Rear Side Door Window Frame Rear Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Frame Rear Applique Bolt [2x] - - 1.5 N.m (13 lb in) Rear Side Door Window Frame Rear Applique Replacement

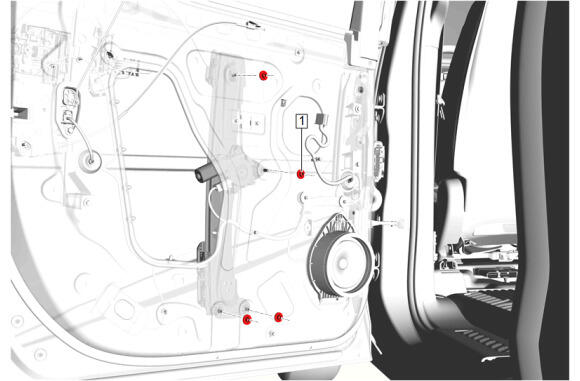

GM5642783Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Nut [4x] - - 11 N.m (97 lb in) Rear Side Door Window Regulator Replacement
GM6639230Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Motor Bolt - - 6.25 N.m (5 lb ft) Rear Side Door Window Regulator Motor Replacement
2 Rear Side Door Window Regulator Motor Bolt [2x] - - 7.75 N.m (6 lb ft) Rear Side Door Window Regulator Motor Replacement
GM6309660Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Side Door Window Upper Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Upper Reveal Molding Rivet Yes - - Rear Side Door Window Upper Reveal Molding Replacement
