Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

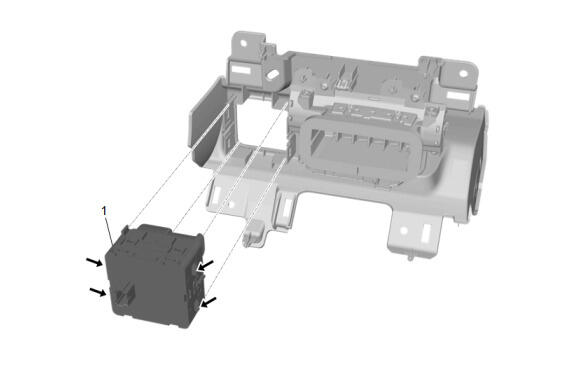

Trailer Brake Control Switch (1) - Install
Secure the retaining tabs.
Courtesy of GENERAL MOTORS COMPANY

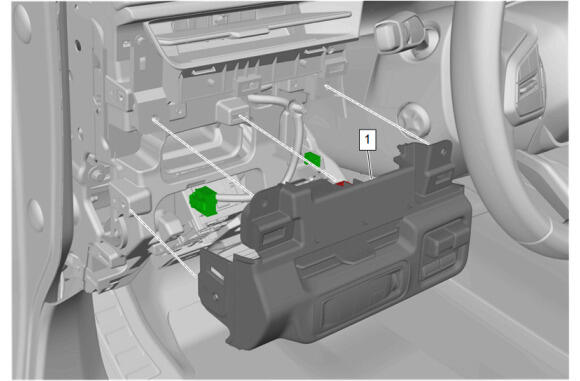

Connect the electrical connectors.
Instrument Panel Switch Trim Plate - Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

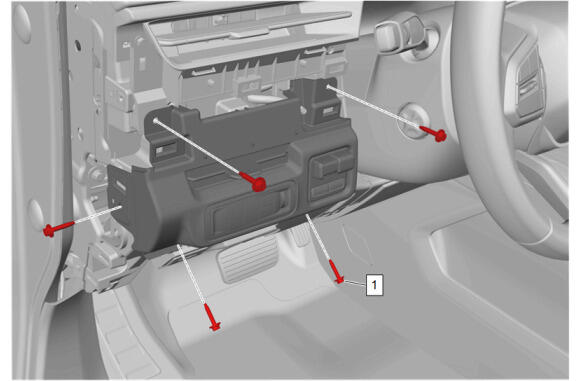

Instrument Panel Switch Trim Plate Bolt (1) - Install and tighten [5x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

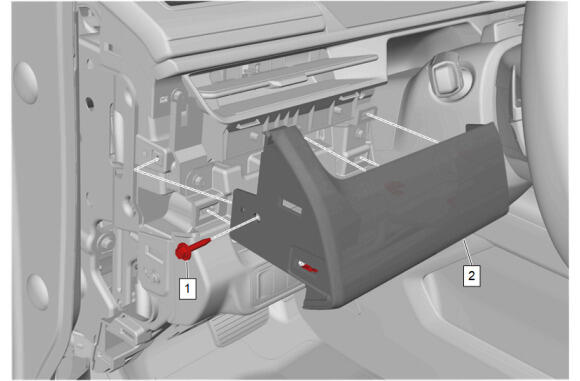

Instrument Panel Trim Plate Applique (2) - Install
Instrument Panel Carrier Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Line up flange around the front side door weatherstrip

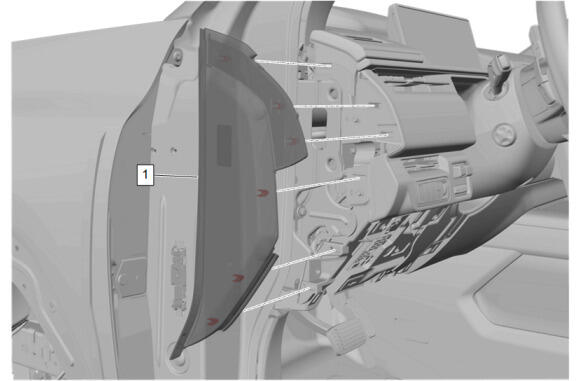

Instrument Panel Outer Trim Cover - Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

WARNING:
When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

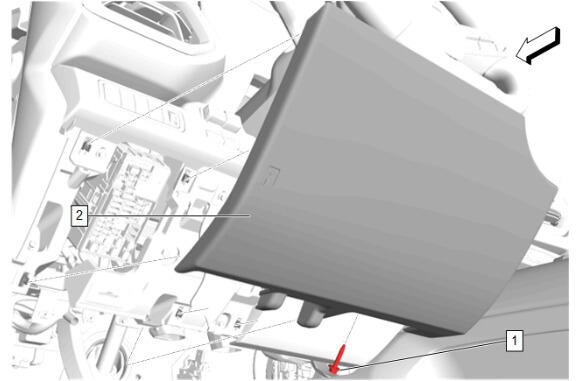

Instrument Panel Knee Bolster (2) - Install
Instrument Panel Knee Bolster Bolt (1) - Install and tighten - Fastener Specifications
