Installation Procedure

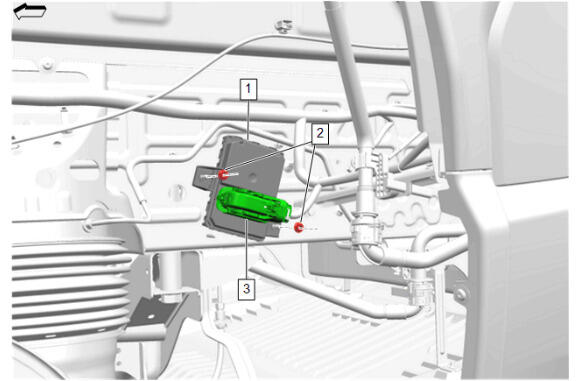

Trailer Lamp Control Module (1) - Install
- Trailer Lamp Control Module Bracket Nut (2) - Install and tighten [2x] - Fastener Specifications
- Connect the electrical connector. (3)
Rear Wheelhouse Panel Rear Liner - Left Side (3) - Install - Rear Wheelhouse Panel Rear Liner Replacement
- Install the left rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Perform the necessary programming and setup procedure: Control Module References
CAUTION:
