Installation Procedure

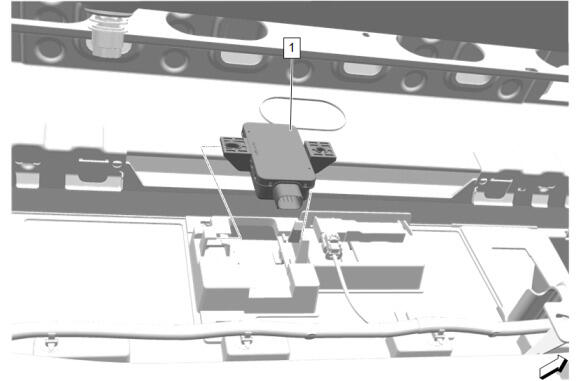

  1. GM6505901Courtesy of GENERAL MOTORS COMPANY

    Trailer Tire Pressure Indicator Module (1) - Install

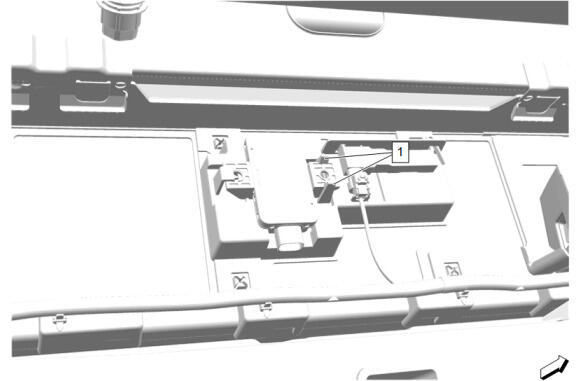

  2. GM6505899Courtesy of GENERAL MOTORS COMPANY

    Verify that the trailer tire pressure indicator module is secured by the 2 retaining clips (1).

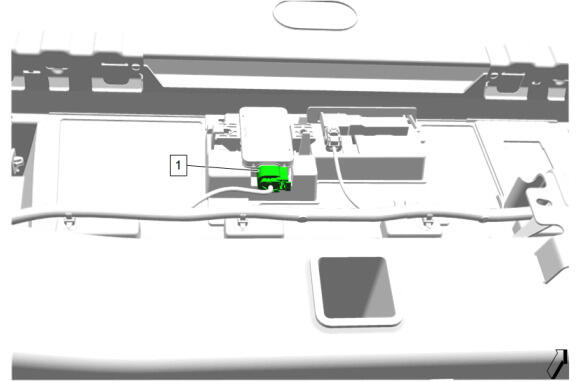

  3. GM6505898Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @Trailer Tire Pressure Indicator Module - Connect

  4. Install underbody panels as necessary. Underbody Panel Component Locator
  5. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  6. Perform the trailer tire pressure sensor manual learn. Trailer Tire Pressure Sensor Manual Learn
