Installation Procedure

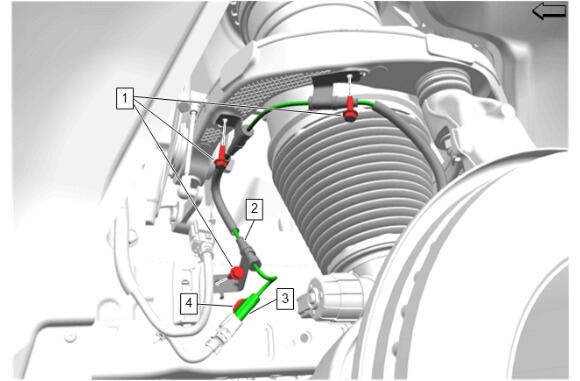

  1. GM6475493Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Front Wheel Speed Sensor Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications
  3. Connect the electrical connector and install the wiring harness retainers as necessary. (3, 4)

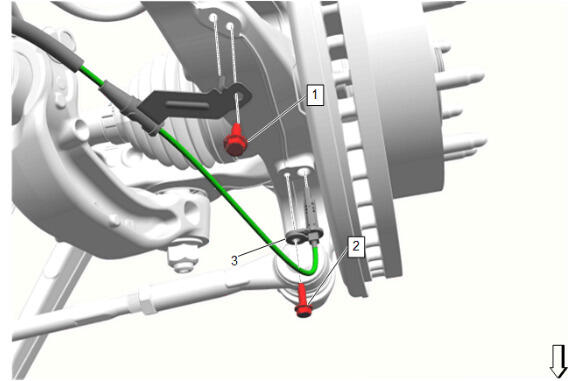

  4. GM6478380Courtesy of GENERAL MOTORS COMPANY

    Apply a light coat of wheel speed anti-corrosion grease to the front wheel speed sensor (3) and mounting pad on the steering knuckle. Adhesives, Fluids, Lubricants, and Sealers

  5. Front Wheel Speed Sensor (3) @Steering Knuckle - Install
  6. Front Wheel Speed Sensor Bolt (2) - Install and tighten - Fastener Specifications
  7. Front Wheel Speed Sensor Bracket Bolt (1) - Install and tighten - Fastener Specifications
  8. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
