Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

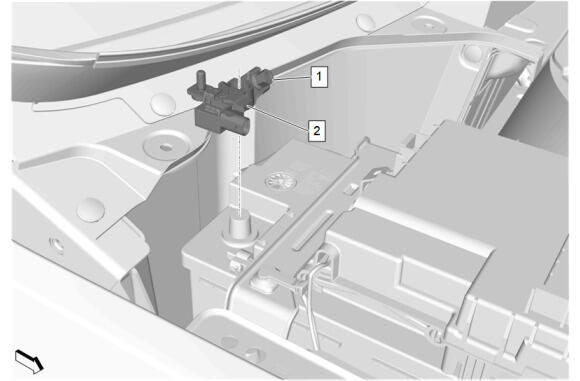

Battery Monitor Module (2) - Install

CAUTION:

Refer to Fastener Caution

Battery Monitor Module (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

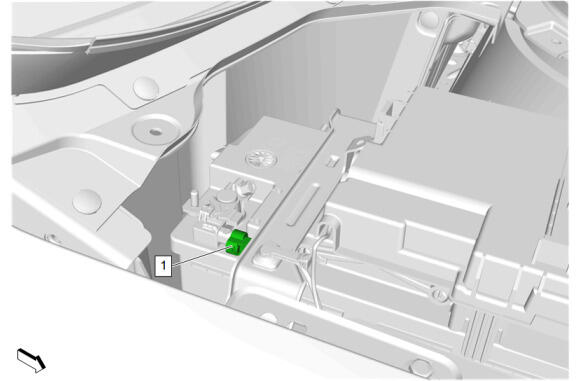

Connect the electrical connector. (1)
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Learn the battery sensor module. Battery Sensor Module Learn
