Installation Procedure

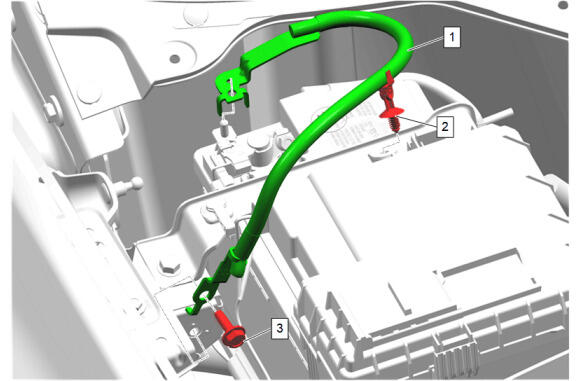

  1. GM6289508Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Sensor Cable (1) - Install

  2. Install the battery negative sensor cable retainer (2).
    3. CAUTION:

    Refer to Fastener Caution

  3. Battery Negative Cable Ground Bolt (3) - Install and tighten - Fastener Specifications
  4. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
