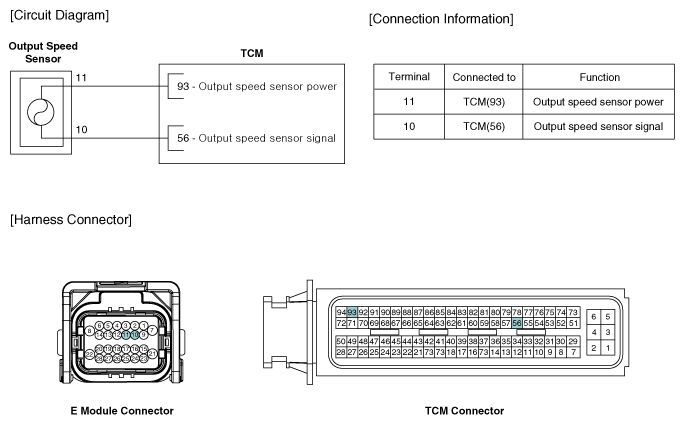

Home › Genesis › 2017 › G80 3.8 Ultimate, AWD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission Control System › Output Speed Sensor › Schematic Diagrams › Circuit Diagram
