Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the rear seat cushion assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the rear seat back assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

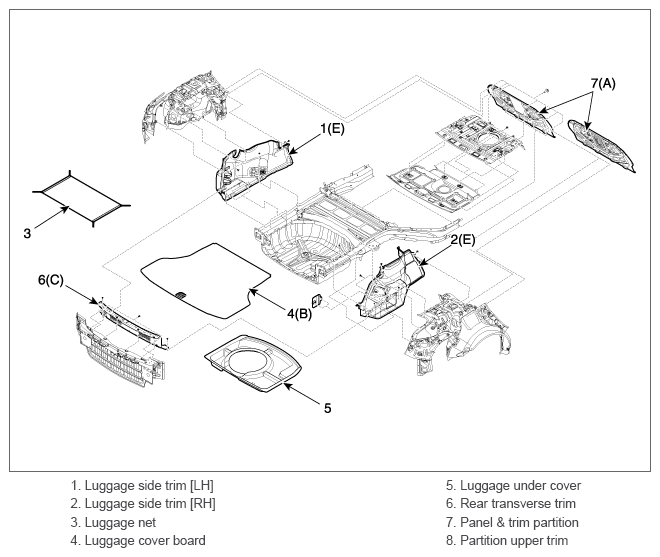

- After loosening the mounting bolts, remove the panel & trim partition assembly (A).
- Remove the luggage cover board (B).
- Remove rear transverse trim (C).
- Remove rear partition upper trim (D).
- After loosening the mounting screws, remove the luggage side trim (E).
- Install in the reverse order of removal.
information
- Replace any damage clips.
