Monitoring DTC Status

Connect GDS to "DATA LINK CONNECTOR (DLC)".
IG key "ON", engine "OFF".

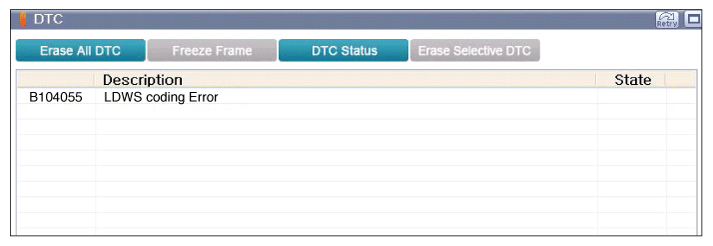

Select "Diagnostic Trouble Codes (DTC) " with GDS.
Monitor the diagnostic trouble code and present of the trouble code.
Erase the DTC.

Courtesy of
Is the DTC output again?
YES
- After checking installed option on the real vehicle firmly, perform "CLU VARIANT CODING " procedure in the "Vehicle S/W Management" with GDS, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Fault is intermittent caused by poor contact in the LDWS's connector or was repaired and LDWS memory was not cleared.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
