Components and Components Location: Components

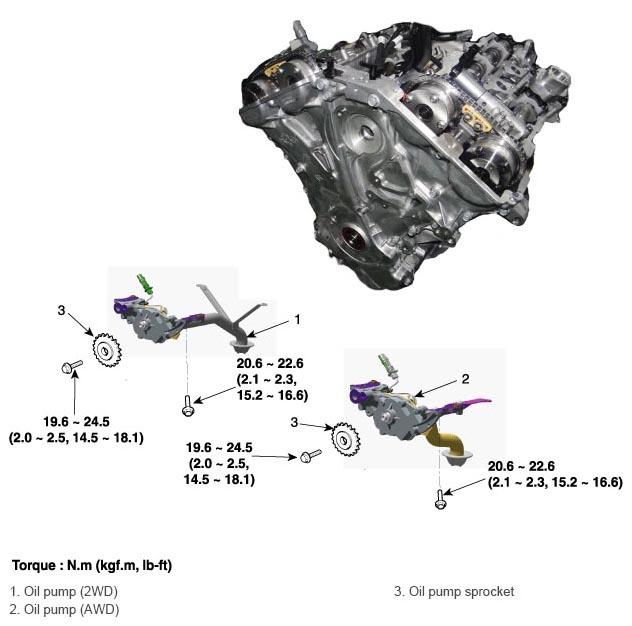

Fig 1: Oil Pump Components With Torque Specifications
G11354695Courtesy of HYUNDAI MOTOR AMERICA
