Components and Components Location: Components

Fig 1: Exploded View Of Timing System Components With Torque Specifications (1 Of 2)
G11354354Courtesy of HYUNDAI MOTOR AMERICA

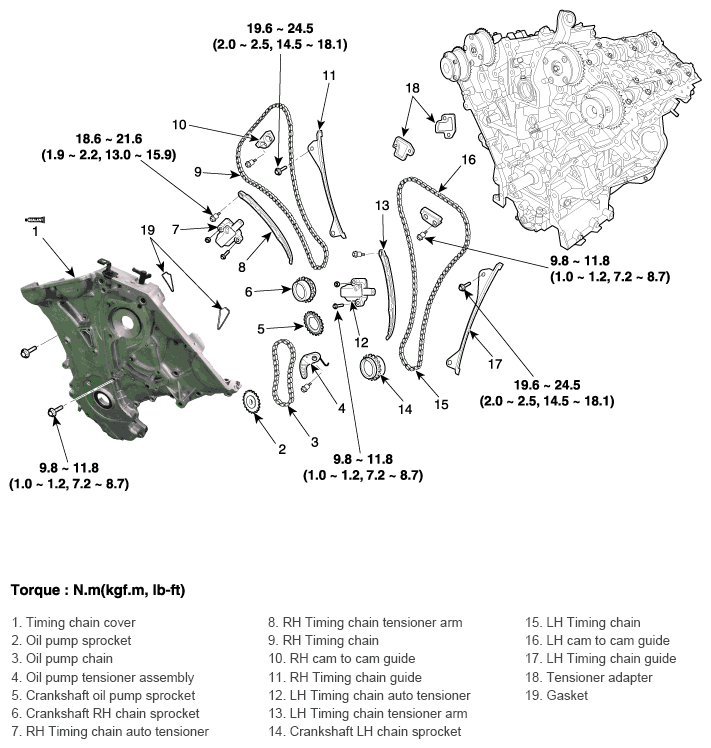

Fig 2: Exploded View Of Timing System Components With Torque Specifications (2 Of 2)
G11354355Courtesy of HYUNDAI MOTOR AMERICA
