Home › Genesis › 2017 › G80 3.8, AWD › Repair and Diagnosis › Engine Mechanical › Mechanical › Timing System - 3.8L › Idler › Components and Components Location › Components

Components and Components Location: Components

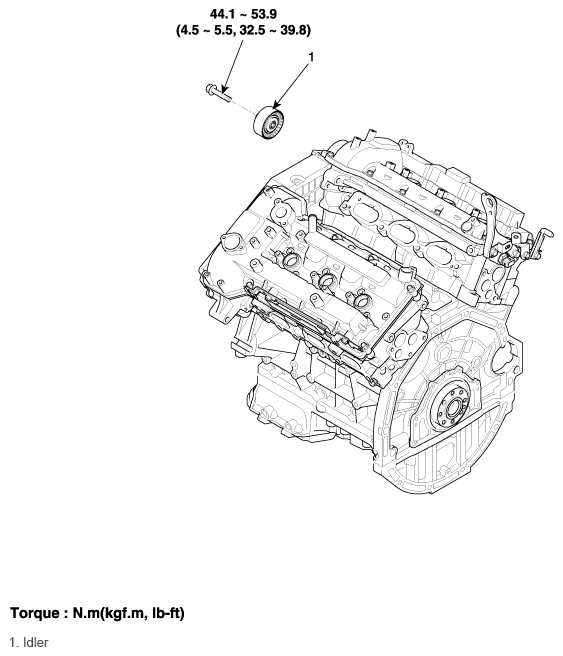

Fig 1: Idler With Torque Specifications
G11354359Courtesy of HYUNDAI MOTOR AMERICA
