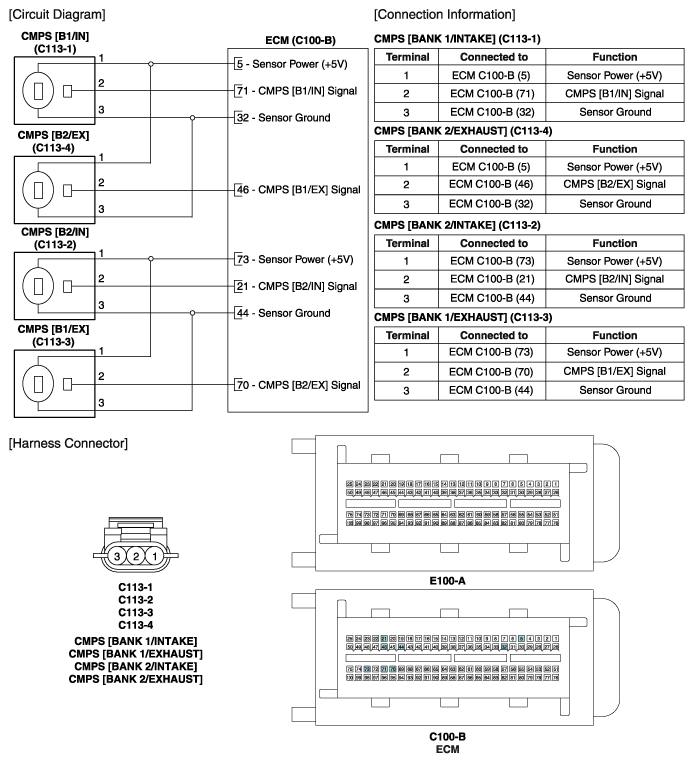

Home › Genesis › 2017 › G80 3.8, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.8L › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram
