Components and Components Location: Components

[2WD]

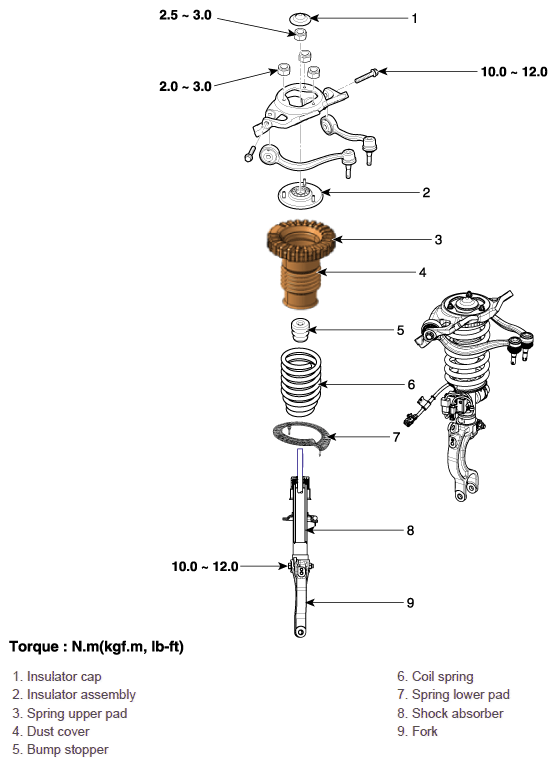

Fig 1: Exploded View Of Front Strut Assembly Components With Torque Specifications (2WD)

Courtesy of HYUNDAI MOTOR AMERICA

[4WD]

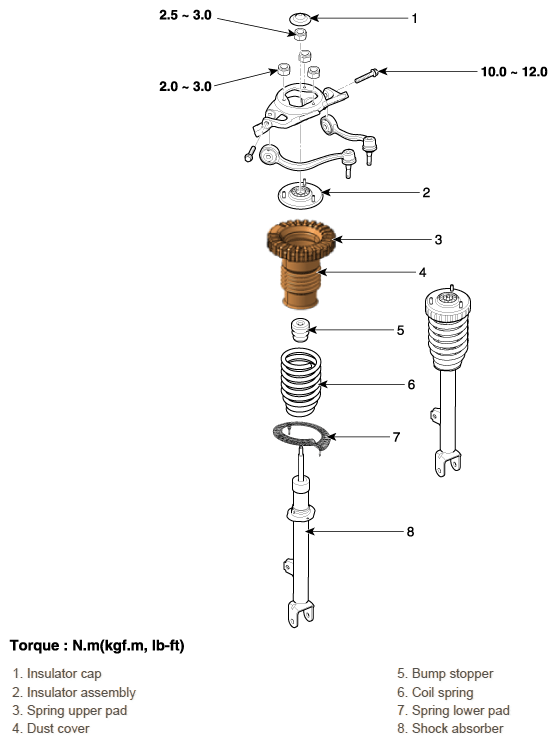

Fig 2: Exploded View Of Front Strut Assembly Components With Torque Specifications (4WD)

Courtesy of HYUNDAI MOTOR AMERICA
