Repair Procedures: Removal

CAUTION: Use caution when handling the transfer case.
Preventing the ITA (Integrated Transfer case Actuator) from damage
  1. In case of transporting the transfer case
    • Use caution when lifting the transfer case from the transporting package to make sure the ITA does not collide with the other transfer case.
    • Use caution for the ITA not to be impacted from contacting the floor or structure.
  2. In case of assembling the transmission
  • Use caution for the ITA not to be impacted from contacting the transmission, floor or structure.
G11340587Courtesy of
  1. Remove the transfer case from the vehicle.

    (Refer to 4 Wheel Drive (AWD) System-"TRANSFER CASE ASSEMBLY ")

  2. Release filler plug (A) and oil drain.
    G11340588Courtesy of

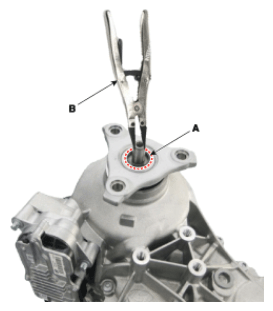

  3. Use retaining ring plier (B) to open and remove the retaining ring (A).
    G11340589Courtesy of
  4. Install the gear puller (A) in the rear axle flange (B).
    G11340590Courtesy of
  5. Remove flange (C) with a puller, incl. shim (A) and O-ring (B).
    G11340591Courtesy of
  6. Remove radial seal ring (A) with the screwdriver (-).
G11340592Courtesy of
