Engine Control System - 3.8L
›
Components and Components Location
›

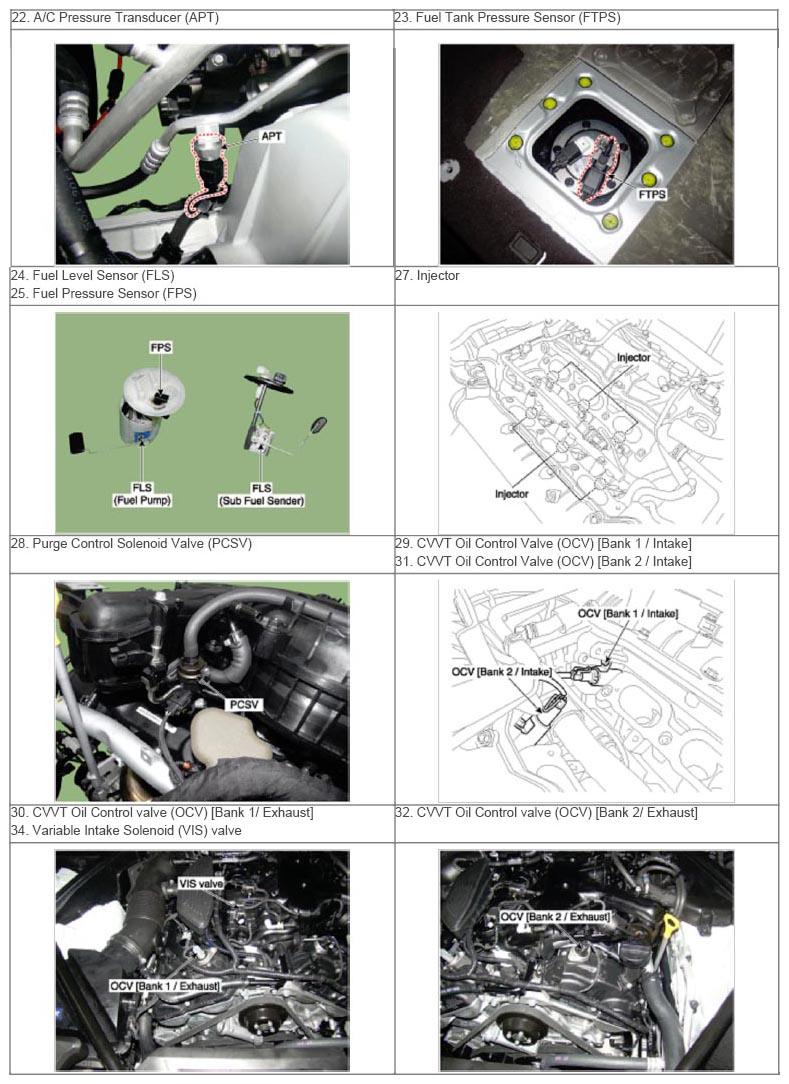

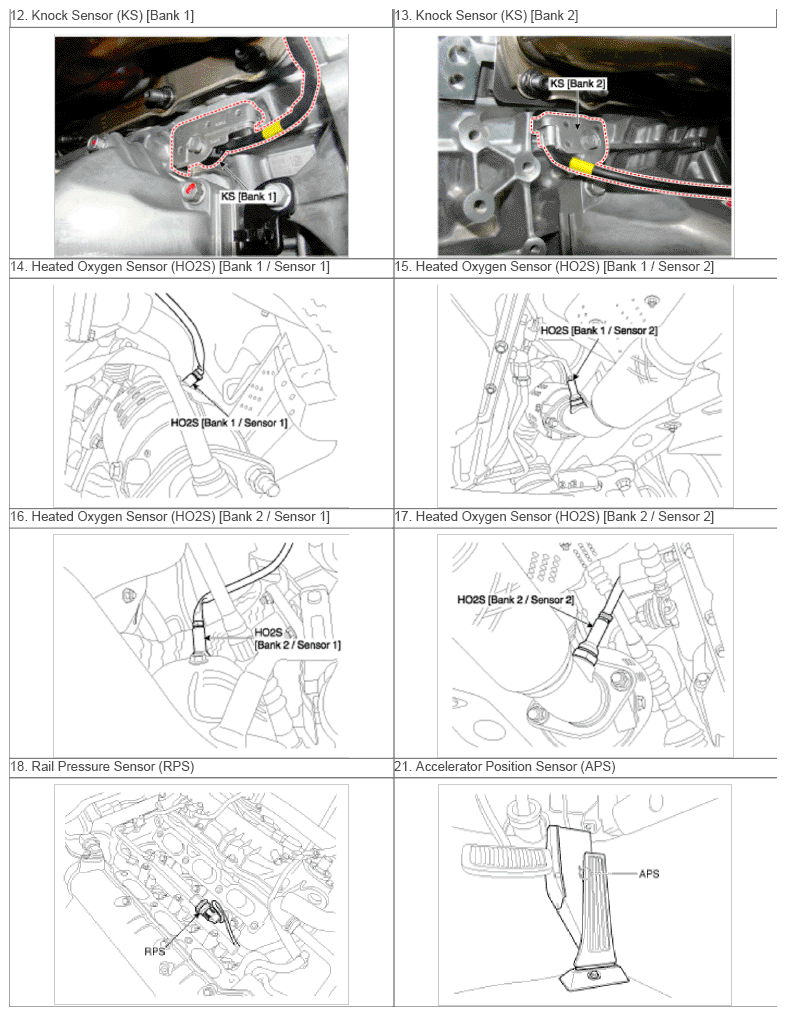

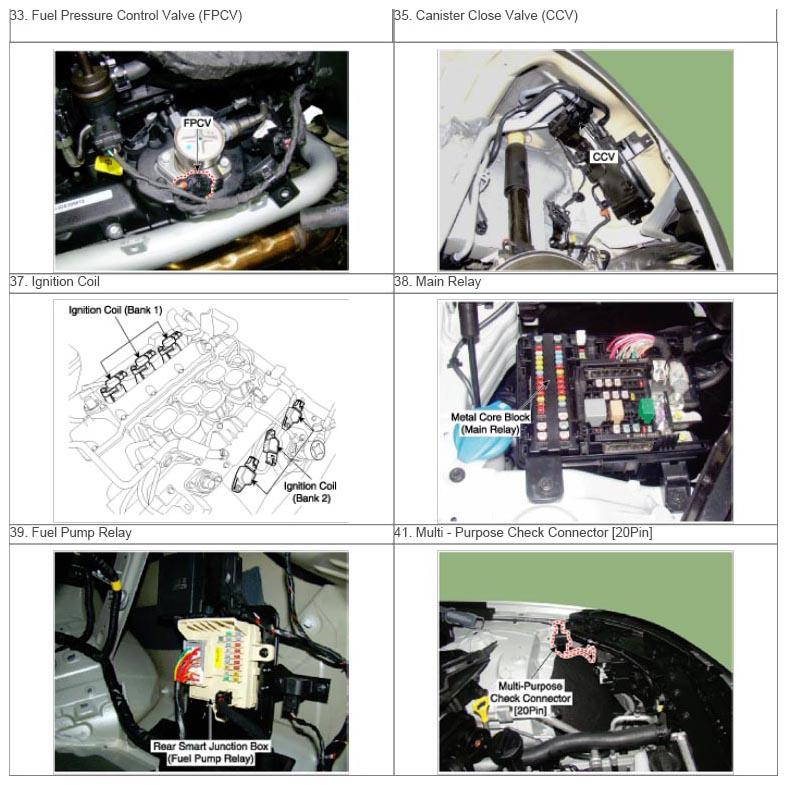

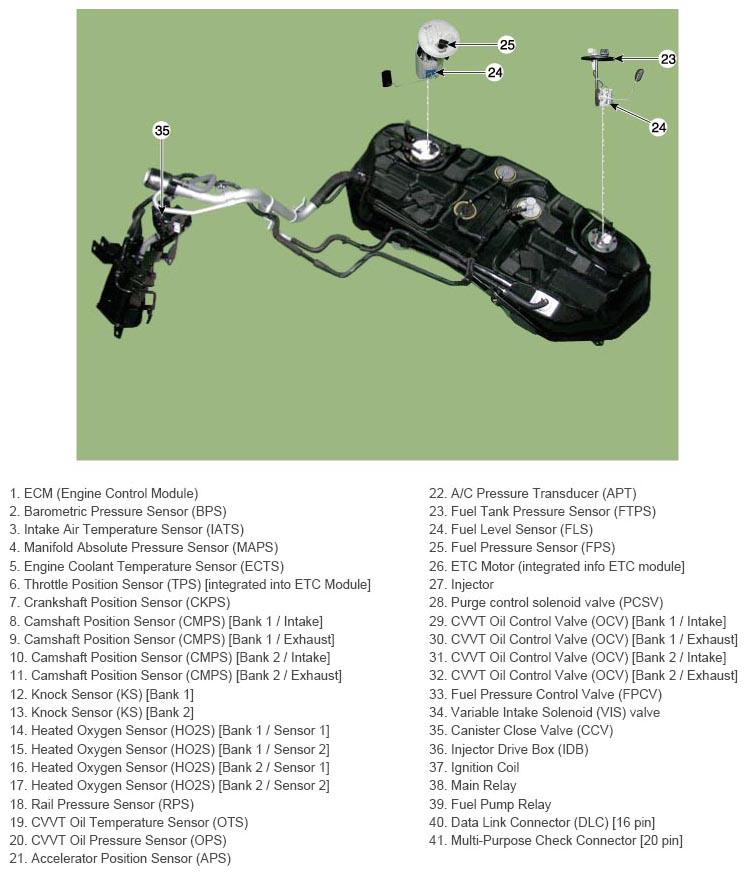

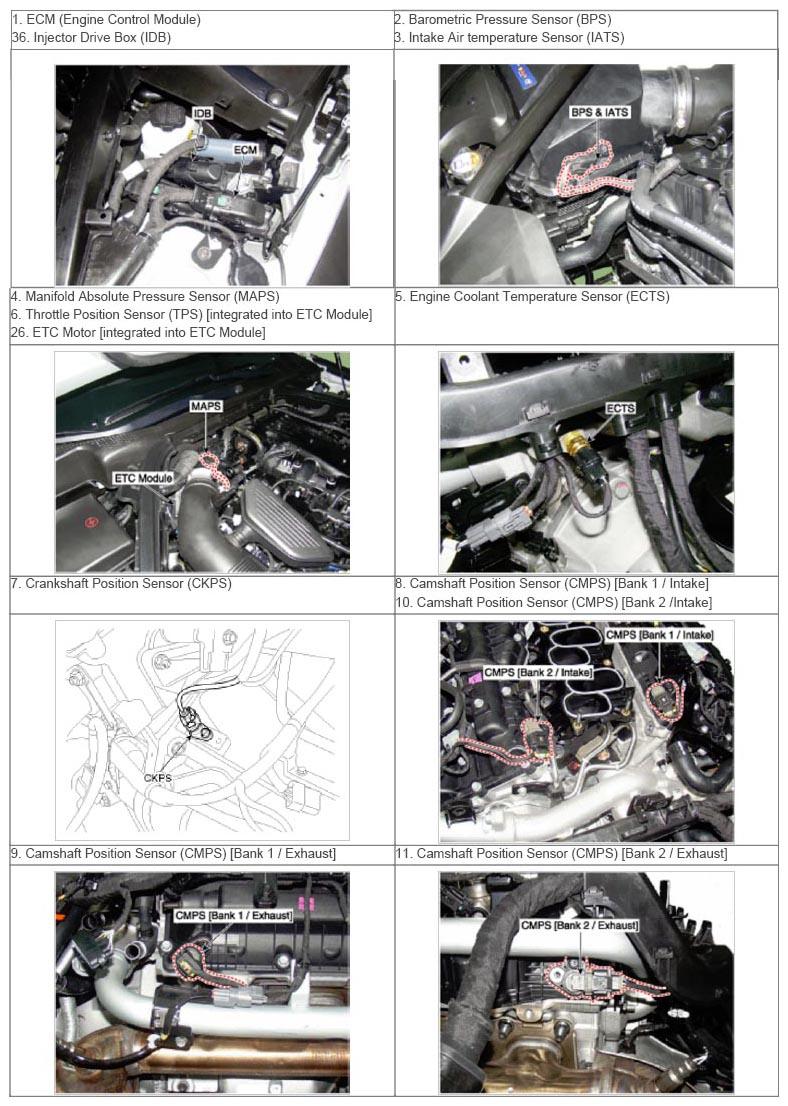

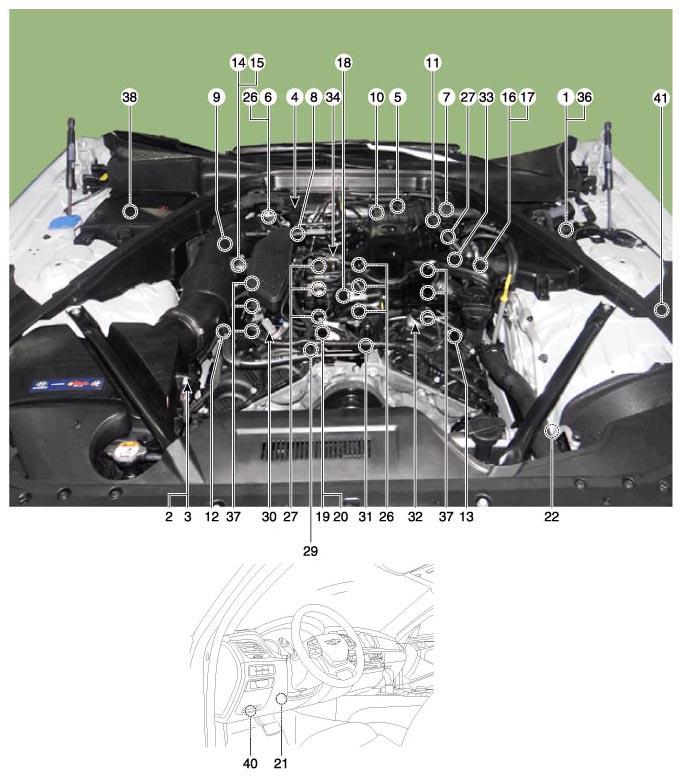

Components Location
Components Location
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
