Engine Control System - 3.8L
›
Engine Control Module (ECM)
›
Schematic Diagrams
›

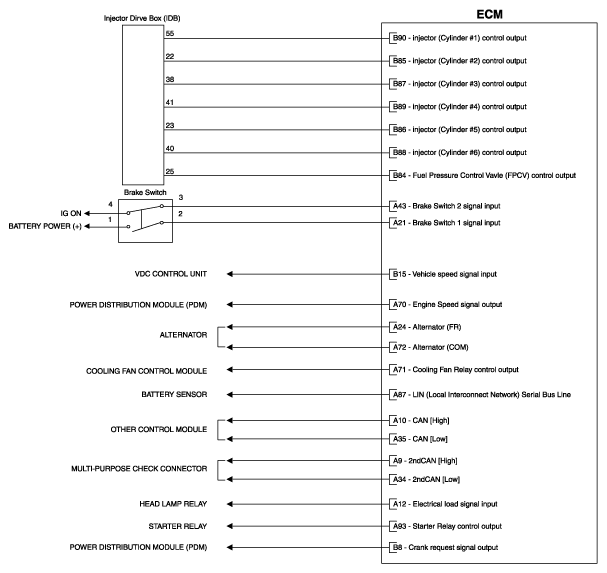

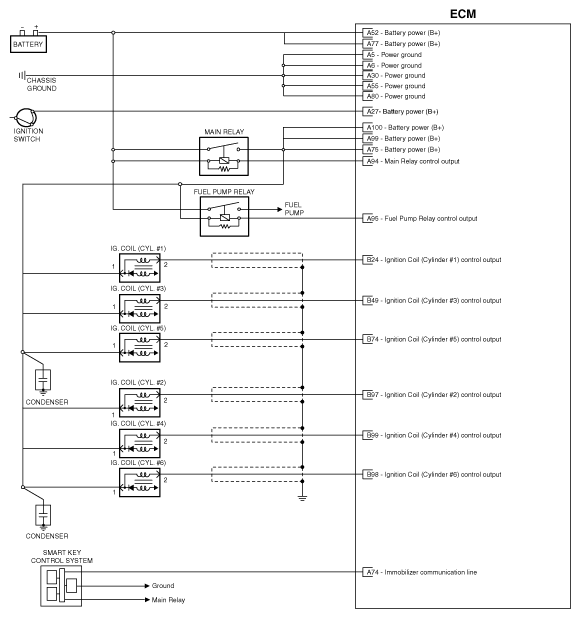

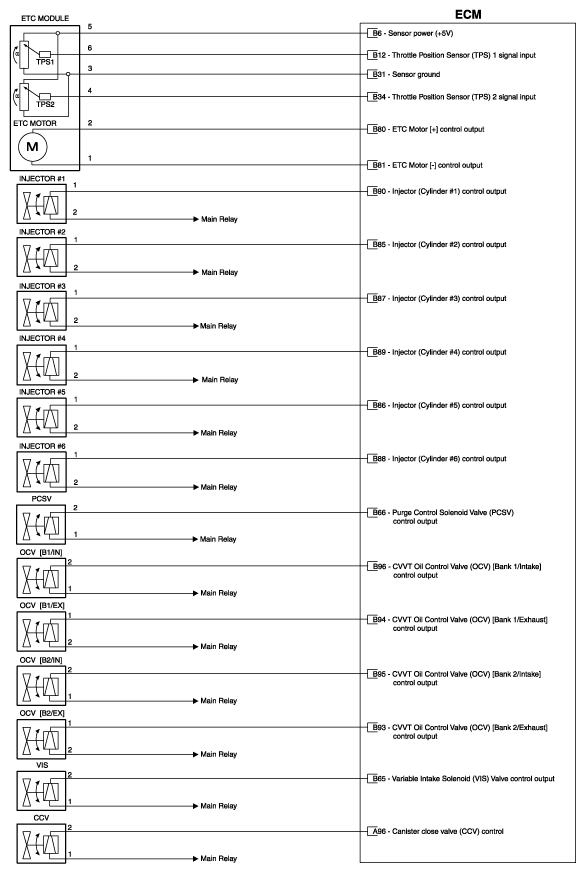

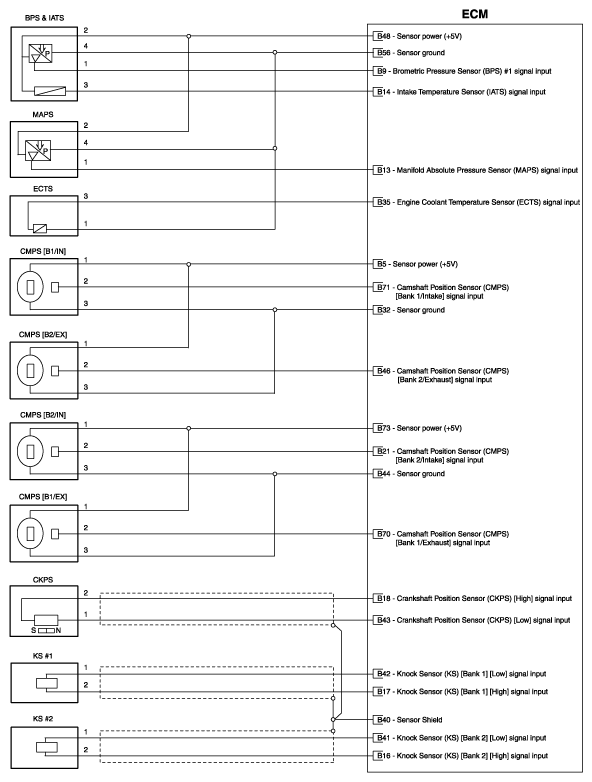

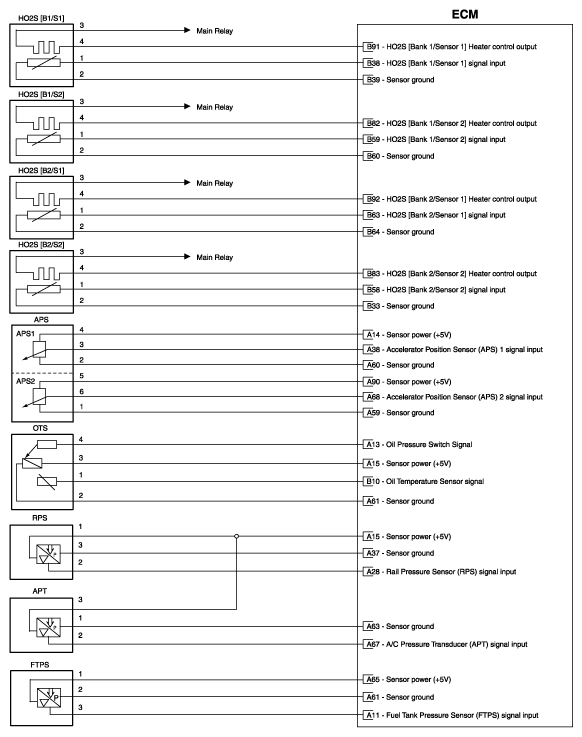

Circuit Diagram
Circuit Diagram
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
