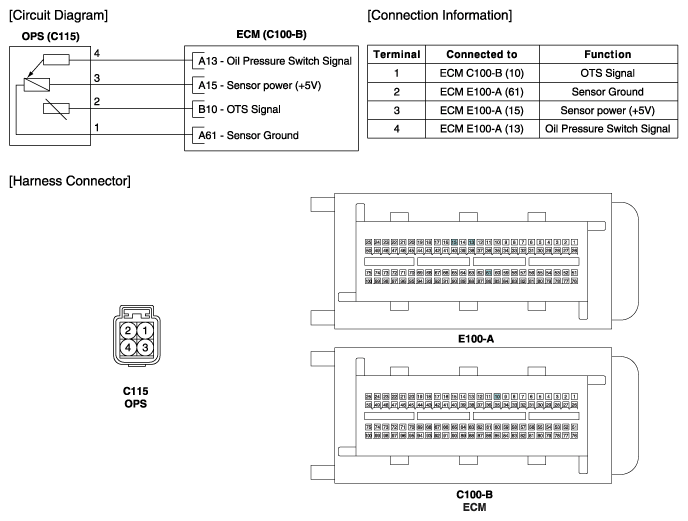

Home › Genesis › 2017 › G80 3.8, RWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.8L › Oil Pressure Sensor (OPS) › Schematic Diagrams › Circuit Diagram
