Fuel Delivery System - 3.8L: Troubleshooting

Courtesy of

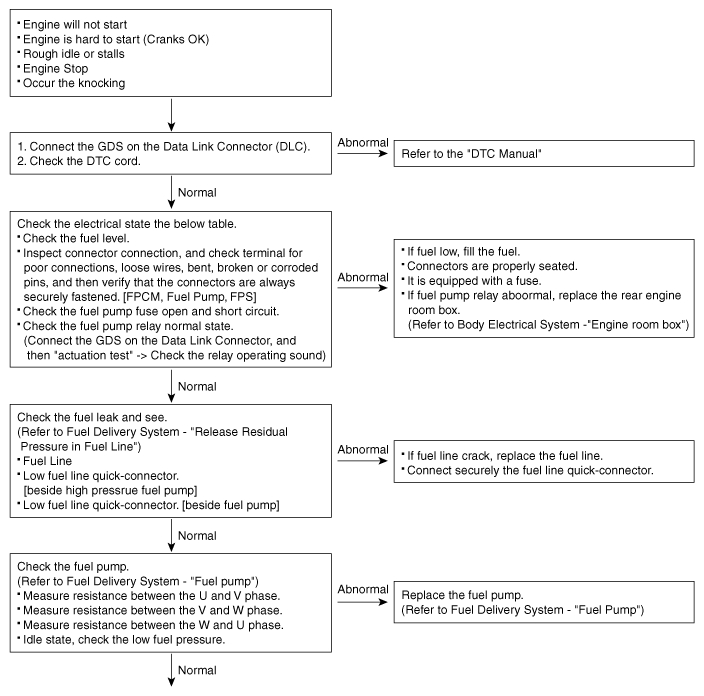

References for flowchart above

DTC INDEX , RELAY BOX (ENGINE COMPARTMENT) ,Release Residual Pressure in Fuel Line , Fuel Pump ,Fuel Pressure Sensor (FPS) , Fuel Pump Control Module (FPCM)

Courtesy of

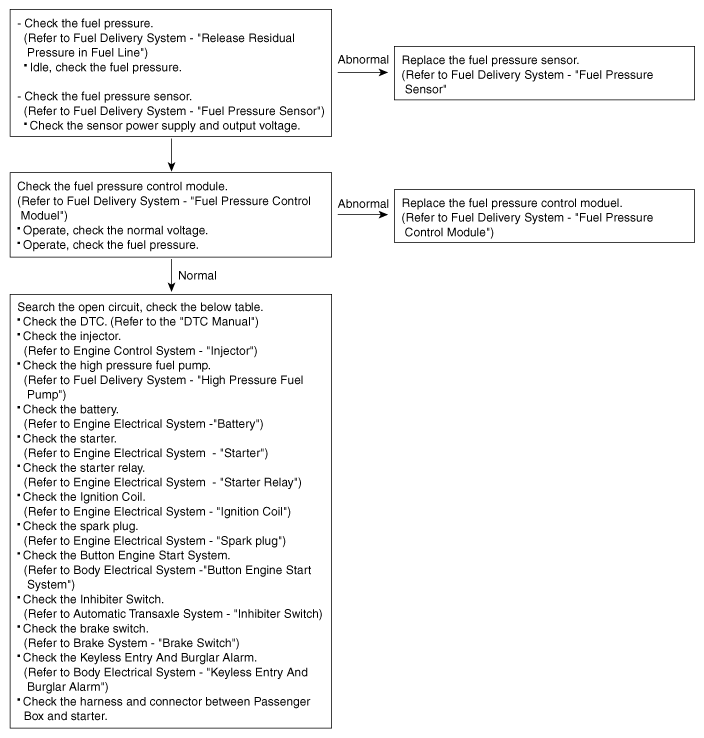

References for flowchart above

Release Residual Pressure in Fuel Line , Fuel Pressure Sensor (FPS) , Fuel Pump Control Module (FPCM) , DTC INDEX , INJECTOR ,High Pressure Fuel Pump , BATTERY , STARTER ,Starter RelayIGNITION COIL ,SPARK PLUGBUTTON ENGINE START SYSTEM ,INHIBITOR SWITCH , Stop Lamp Switch ,KEYLESS ENTRY AND BURGLAR ALARM
