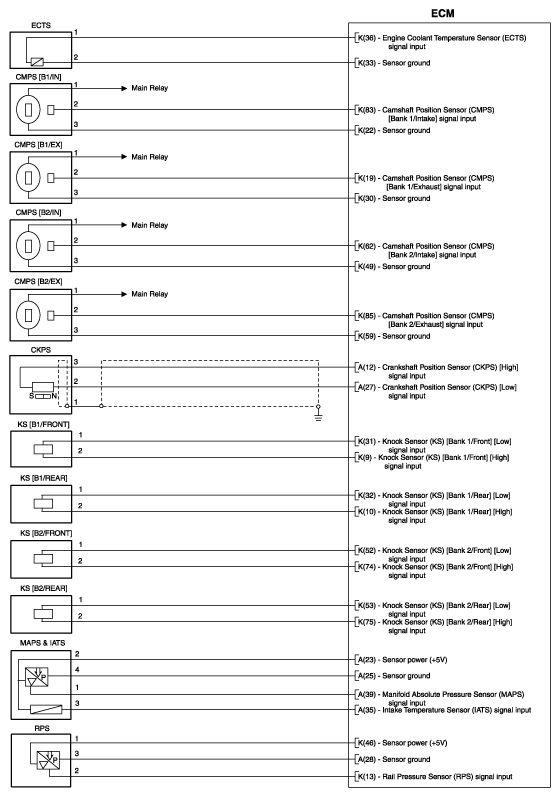

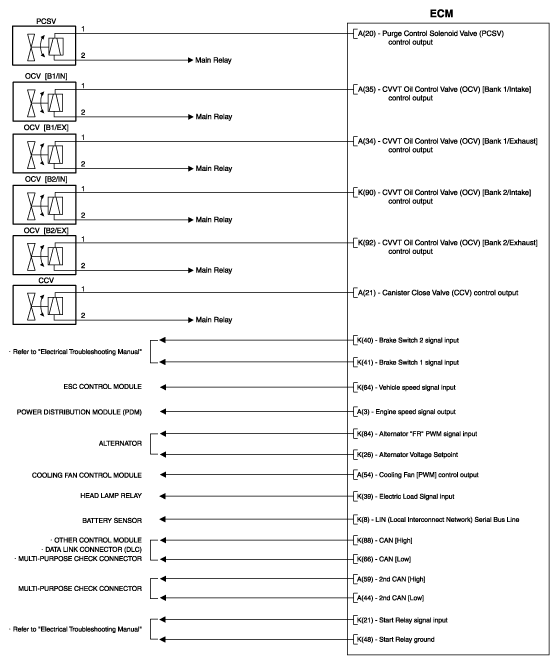

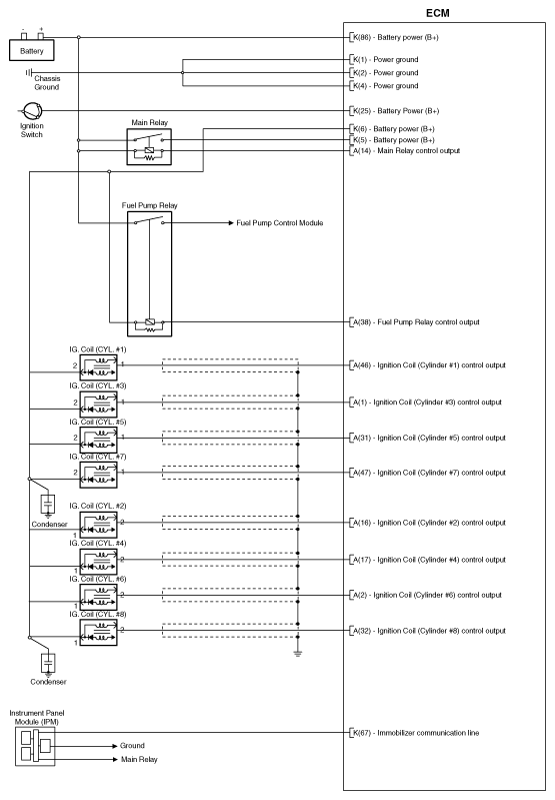

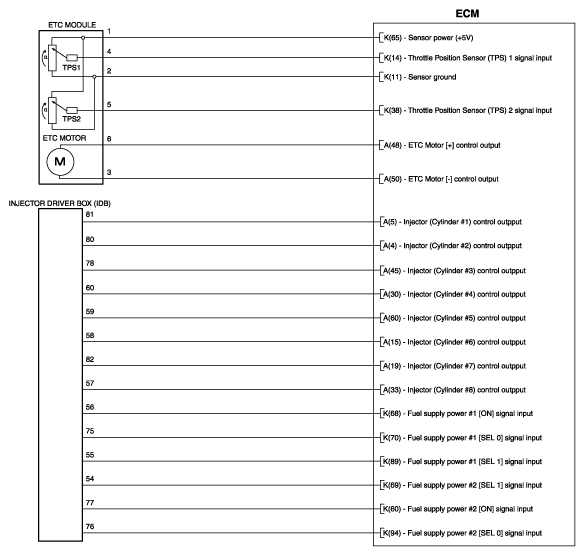

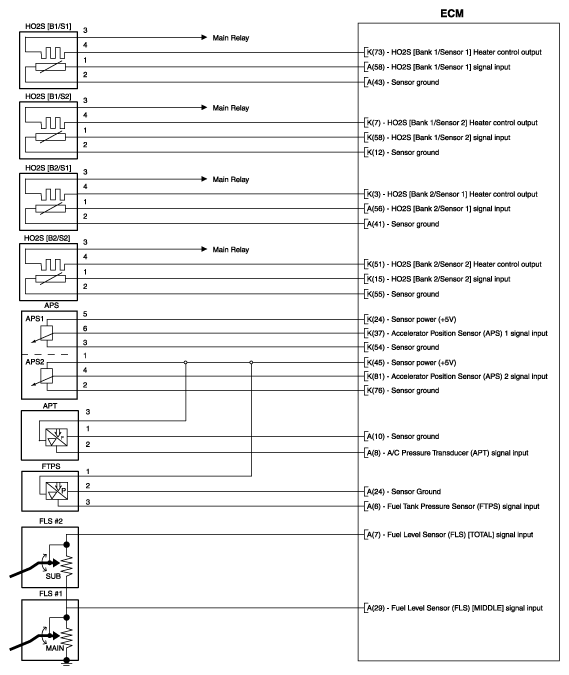

Home › Genesis › 2017 › G80 5.0 Ultimate › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 5.0L › Engine Control Module › Schematic Diagrams › Circuit Diagram
