FixVault
Home
›
Genesis
›
2017
›
G80 5.0 Ultimate
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 5.0L
›
Engine Control System
›
Components and Components Location
›
Components Location

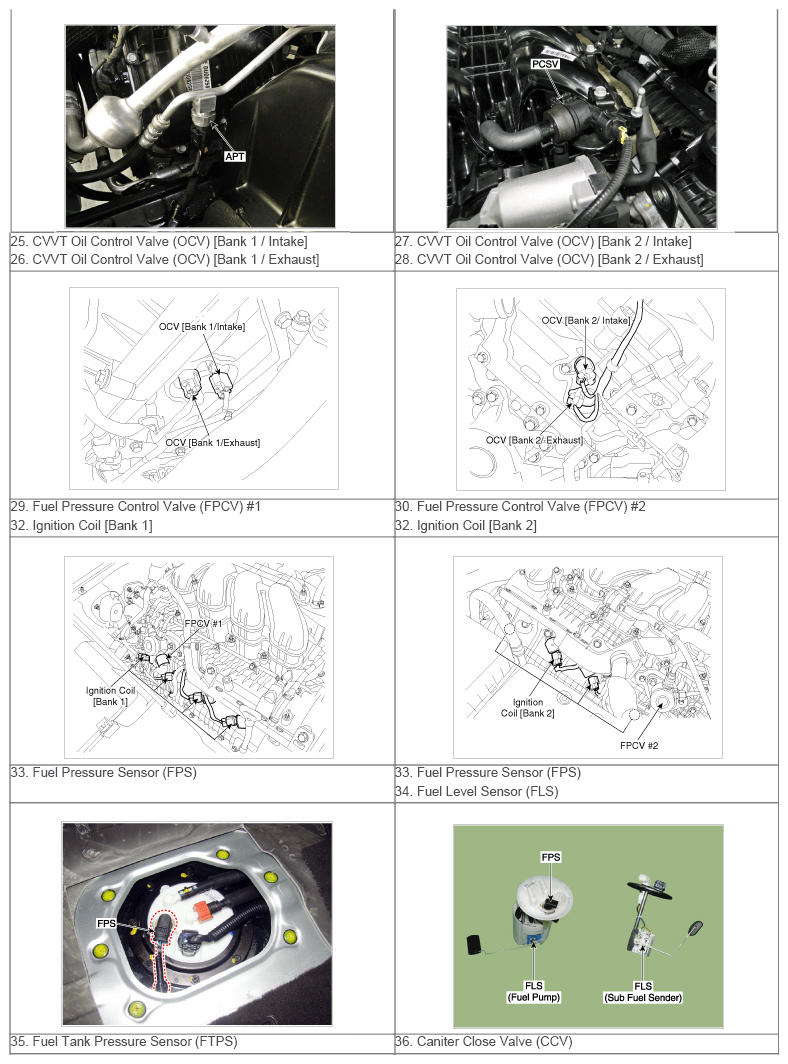

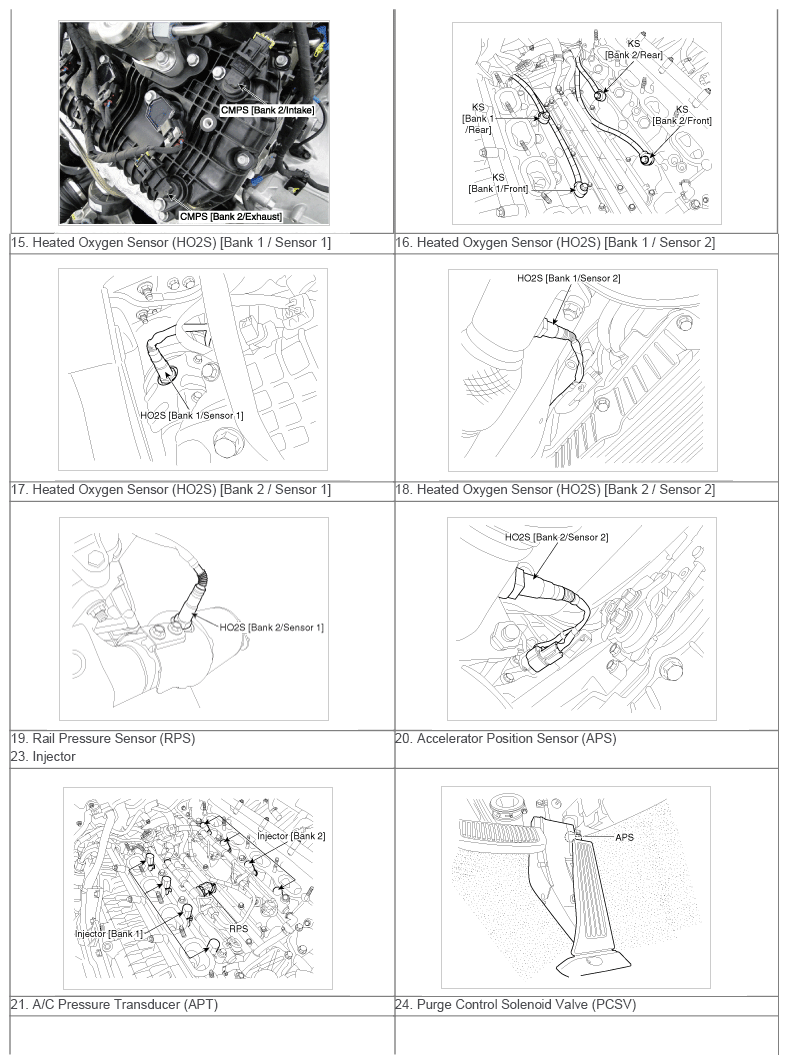

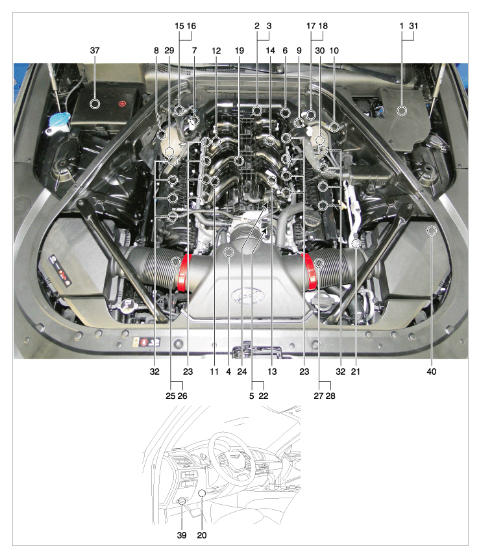

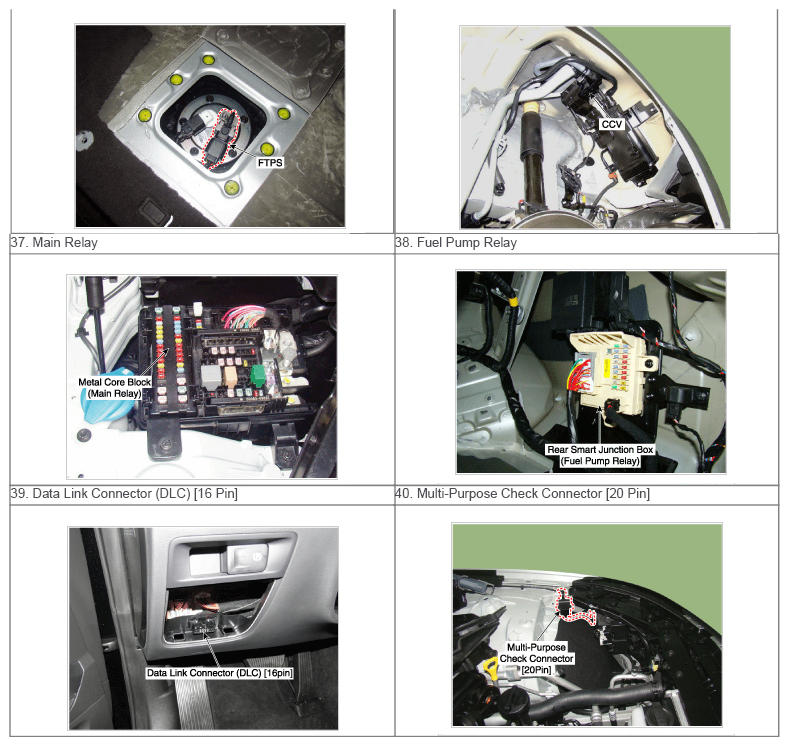

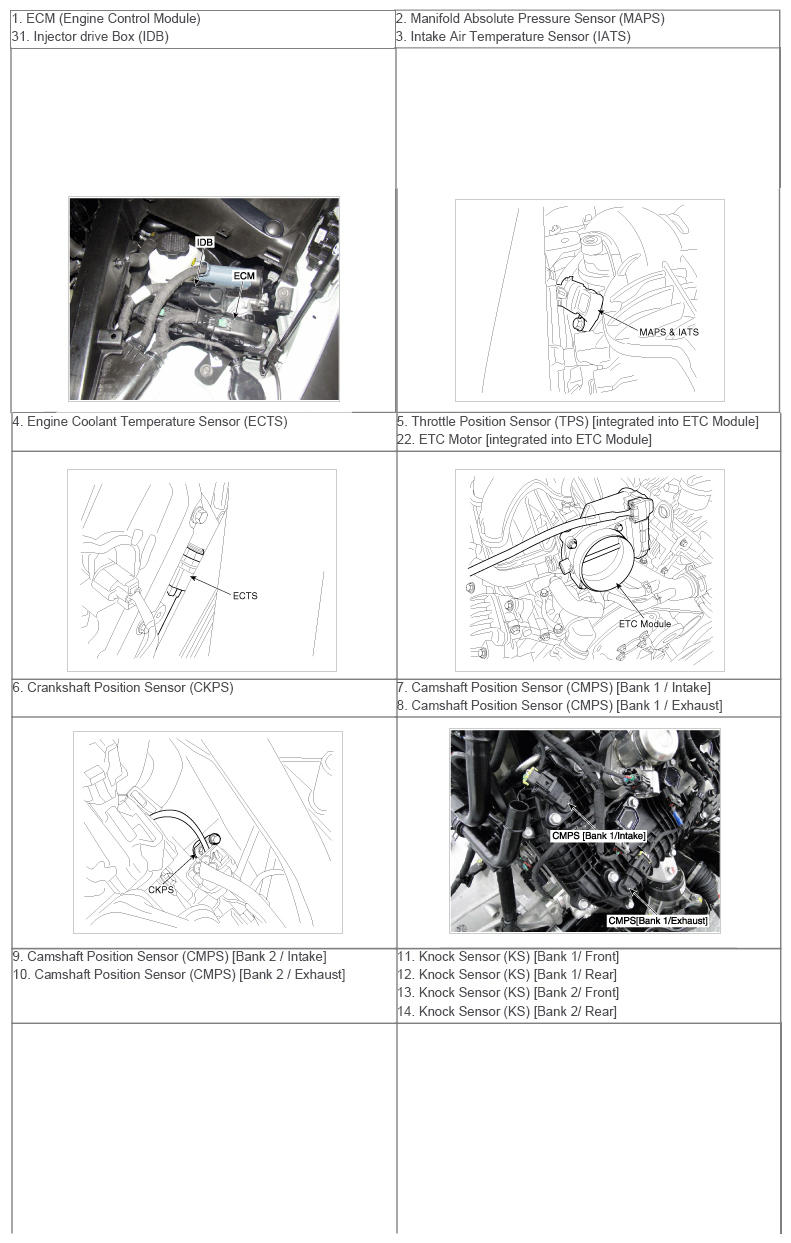

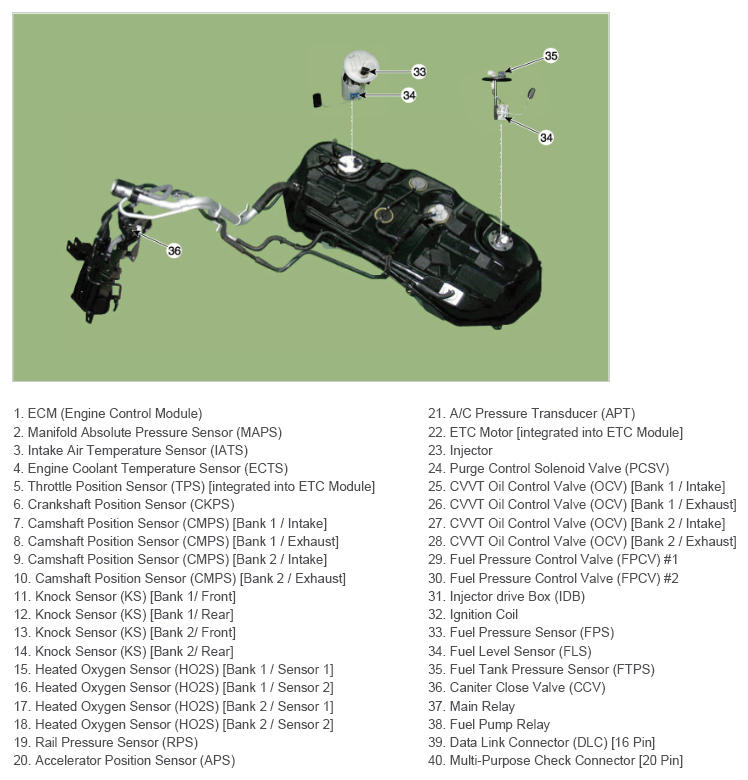

Components Location
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
