Components and Components Location: Components

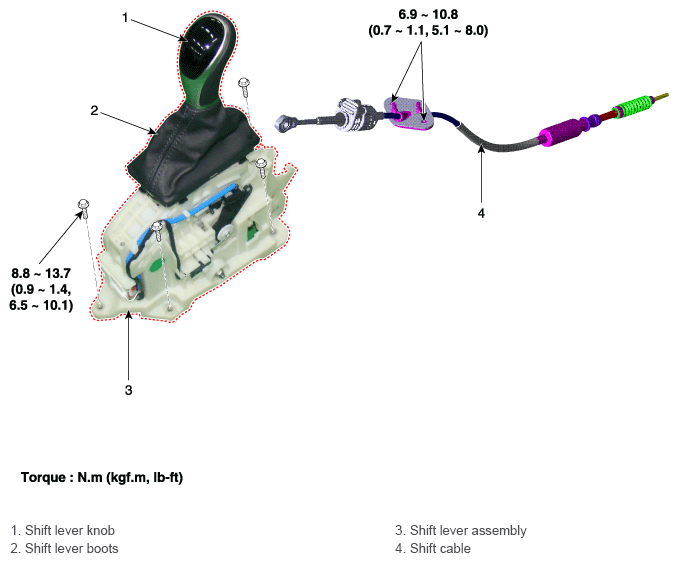

Fig 1: Shift Lever Components Location With Torque Specifications
G11340536Courtesy of HYUNDAI MOTOR AMERICA
